Summary of Contents for Esatto EUF268W

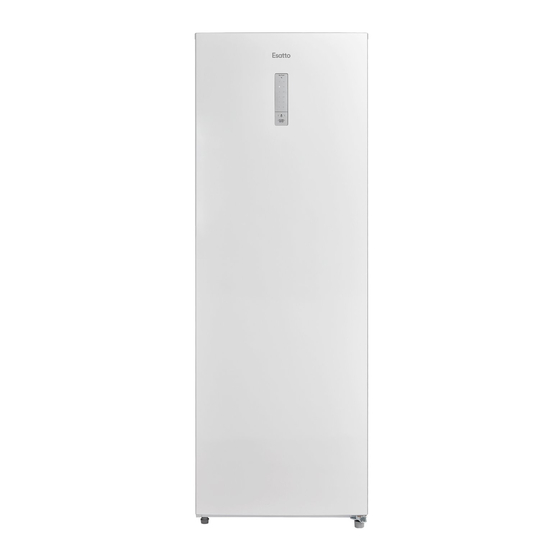

- Page 1 Product: Model Code/s: 238L Upright EUF268W Fridge/Freezer User Manual Exactly what you need Version: Online: V2.1 0921 esatto.house...
- Page 2 User Manual Appliances Exactly what you need...
- Page 3 Contents Page 4 Page 5 Welcome Safety Warnings Page 8 Page 8 Getting Started Installation Page 12 Page 13 Product Overview Operation Instructions Page 15 Page 15 Usage Tips Energy Saving Tips Page 16 Page 18 Maintenance FAQs and...
- Page 4 VIC 3121 Australia to ensure optimum performance. — Telephone Again, thank you for choosing an Esatto appliance and we look forward to being 1300 11 4357 of service to you. — Email Kind Regards, support@residentia.group...
- Page 5 Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.
- Page 6 User Manual Safety Warnings (Continued) General Safety Instructions Cont. WARNING • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Usage restriction: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
- Page 7 Safety Warnings (Continued) General Safety Instructions Cont. Never use this appliance with a damaged refrigerant circuit! If the coolant circuit becomes damaged, avoid proximity to open fires and all types of heat sources. The room in which the appliance is located should be ventilated for a few minutes.
- Page 8 User Manual Getting Started Unpacking • Packaging materials: This appliance has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use.
- Page 9 Installation (Continued) Electrical connection WARNING • It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. • Before plugging in your new upright fridge/freezer, let it stand upright for at least 2 hours.
- Page 10 User Manual Installation (Continued) Reversing the door LIST OF TOOLS TO BE REQUIRED BY THE USER Putty knife thin- Cross screwdriver blade screwdriver 5/16˝socket and Masking tape ratchet 1. Unplug your refrigerator and remove all food from the door shelves. Remove all food from the inner door liner.
- Page 11 Installation (Continued) 4. Remove the door upper cover, install the upper hinge sleeve , door signal line to the other side and install the door upper cover. Dismantle the right door stopper,sleeve pipe from the right bottom of door, insert...
- Page 12 User Manual Product Overview Your Upright Fridge/Freezer Key: Functions: 1. Digital Temperature Controls When the fridge power is on: 2. Fridge Mode All temperature icons will illuminate within 3s after 3. Freezer Mode powering on. When powering on for the first time, the default set temperature is set at -20°...
- Page 13 Operation Instructions Using for the First Time When you install your appliance, keep the refrigerator still for two hours before connecting it to power supply. It is the best to wait 2-3 hours before adding any fresh or frozen foods. In summer or when the ambient temperature is high, please wait for at least 4 hours.
- Page 14 User Manual Operation Instructions (Continued) The Display If there is no failure, the screen will display the sett temperature of the fridge/freezer. On the occurrence of a failure, the corresponding icons will give a combination of blinks. The error codes and types are shown as follows: Refrigerator ERROR ERROR DESCRIPTION...
- Page 15 Operation Instructions (Continued) Quick Cooling Enter: Under refrigerator mode, press the button( ) until the icon illuminates. During quick cooling mode, the refrigerator runs according to the temperatures set at 2° C and it will exit this mode automatically after running for 150 minutes or temperature setting or mode setting.
- Page 16 User Manual Maintenance and Cleaning Cleaning WARNING Before cleaning the appliance, make sure it is switched off and disconnected from the power supply. Failure to do so can result in electric shock or injury. • Wash the inside surfaces and the interior accessories with a damp, warm cloth moistened in a water and baking soda solution.
- Page 17 Contact our after sales support on 1300 11 43 57 for advice. Our after sales support centre stocks a selection of spare parts for the Esatto 238L Upright Fridge/Freezer. To enquire about purchasing a part, call us on 1300 11 43 57 or email support@residentiagroup.com.au...
- Page 18 User Manual FAQs and Troubleshooting PROBLEM POSSIBLE CAUSES WHAT TO DO Failed operation Check whether the appliance is connected to power or whether the plug is making good contact. Check whether the voltage is too low. Check whether there is a power failure or partial circuits have tripped Odour Odorous foods shall be tightly wrapped Check whether there is any rotten food...
- Page 19 Technical Specifications Model: EUF268W Product Dimensions: W: 595mm, D: 632mm, H: 1722mm Net Capacity: 238L Weight: 60kg Energy Rating: Fridge: 3.5 Stars MEPS Freezer: 2.5 Stars MEPS Refrigerant/Amount: R600a/48g Other Features: Digital temperature controls Interchangable Fridge/freezer modes High temperature alarm...
- Page 20 User Manual Attach your receipt to this page...
- Page 21 Purchase Details For your records, please record details of your purchase below and staple your receipt on this page so you don’t loose it. Your serial number can be found on the rear of your appliance. STORE DETAILS STORE NAME...
- Page 22 User Manual Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY REFRIGERATION APPLIANCES ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;...
- Page 23 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service...
- Page 24 This page User Manual is intentionally left blank Appliances Exactly what you need A RESIDENTIA GROUP INITIATIVE...
