Page 1

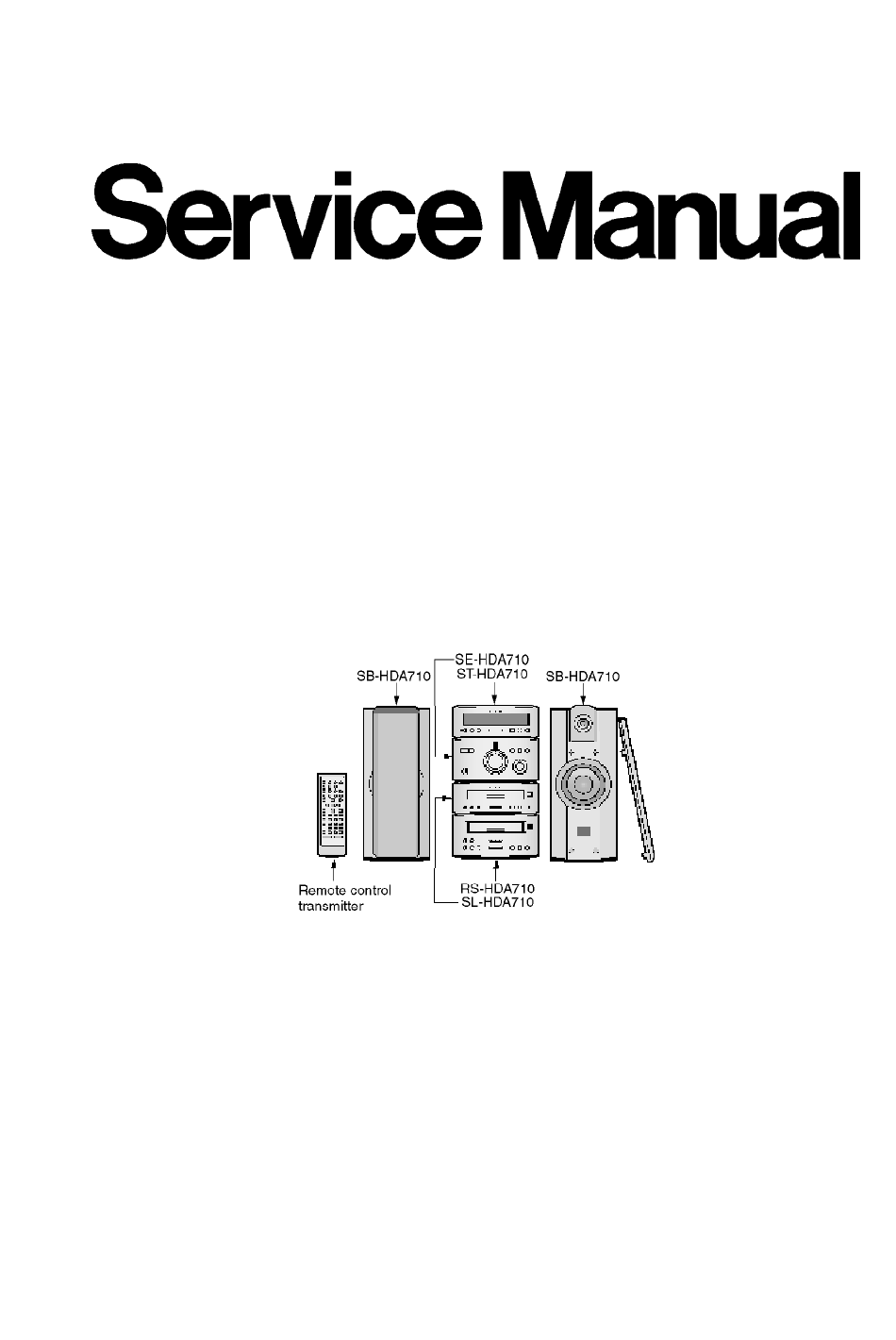

ORDER NO. AD0008145C2 Amplifier SE-HDA710 Colour (N).......Gold Type Areas EB.......Great Britain. EG.......Europe. System: SC-HDA710 Because of unique interconnecting cables, when a compact requires service, send or bring in the entire system. SPECIFICATIONS Specification...
Page 2
1.Design and specifications are subject to change without notice. 2.Dimensions and weight are approximate. 3.Total harmonic distortion is measured by the digital spectrum analyzer. System/SC-HDA710: Tuner:ST-HDA710, DVD Audio/Video Player: SL-HDA710, Amplifier: SE-HDA710 , Cassette Deck: RS-HDA710, Speakers: SB-HDA710 (Made in MAES.)
2000 Matsushita Electric Industrial Co., Ltd. / / All rights reserved. Unauthorized copying and distribution is a violation of law. 1. Accessories 2. Before Repair and Adjustment 1. Turn off the power supply. Using a 10 , 10W resistor, connect both ends of power supply capacitors (C102-105, 127) in order to discharge the voltage.
3. About the Protection Circuitry The protection circuitry may have operated if either of the following conditions is noticed: *No sound is heard when the power is supplied. *Sound stops during a performance. The functions of this circuitry is to prevent circuitry damage, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedande less than the indicated rated impedance of thisunit are used.
Page 7
- Check the power supply (1) P.C.B., power supply (2) P.C.B. and speaker terminal P.C.B. as shown below. 6.2. Checking for the operation P.C.B. - Follow the (Step 1) - (Step 3) of item 6.1. - Check the operation P.C.B. as shown below.
Page 8
6.3. Checking for the main P.C.B. - Follow the (Step 1) - (Step 3) of item 6.1. - Check the main P.C.B. as shown below.
Page 9
6.4. Replacement for the power IC - Follow the (Step 1) - (Step 3) of item 6.1. - Follow the (Step 1) - (Step 4) of item 6.3.
Page 10
7. Power Source ON/OFF and Signal Check To operate this unit SE-HDA710 normally, it is necessary for connecting with the unit ST- HDA710. / When operating the unit SE-HDA710, be sure to connect the unit ST-HDA710 by connection cable. 1. Connect with the Tuner (ST-HDA710). (As shown in Fig.
8. Schematic Diagram Notes 8.1. Type Illustration of IC's, Transistors and Diodes 8.2. Schematic Diagram Notes - This schematic diagram may be modified at any time with the development of new technology. Notes: - S301: Power "STANDBY / ON" ( ) switch in “ON”...
Page 24
etc. are used. When replacing any of components, be sure to use only manufacture's specified parts shown in the parts list. Caution! - Secondary trouble can be prevented by taking care during repair. - IC and LSI are sensitive to static electricity. - Cover the parts boxes made of plastics with aluminum foil.
Page 25
otherwise, P=Pico-farads(pF), F=Farads (F) * Resistance values are in ohms, unless specified otherwise, 1K= 1,000 (OHM), 1M=1,000K (OHM) * "<IA>, <IB>, <IC>, <ID>" marks in Remarks indicate languages of instruction manuals. [<IA> : English, <IB> : German/Italian/French, <IC> : Spanish/ Swedish/Polish, <ID>...
Page 26
Ref. No. Part No. Part Name & Description Remarks RAK-HDA37WH REMOTE CONT.TRANSMITTER A1-1 RKK0123-K1 BATT.COVER(REMOTE CONT.) RSA0022-L AM LOOP ANTENNA SET REE0993 SPEAKER CORDS RJA0053-2X AC POWER SUPPLY CORD (EB) RJA0019-1X AC POWER SUPPLY CORD (EG) RJL1P019B15 VIDEO CONNECTION CABLE K2JA2A000018 RQCB0169 SERVICE CENTER LIST...
