Technics SE-CH530 Service Manual

Amplifier
SB-CH530A SB-CH530A
SL-CH530 ST-CH530
Remote Control RS-CH730 SE-CH530
Transmitter
Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system.
Specifications
Power output
[For (E), (EG) and (EP) areas]
DIN 1 kHz, THD 1%, both channel driven
2x35 W (6 Q)
[For (EB) area]
RMS 1 kHz, THD 10%, both channel driven
2x 48 W (6 Q)
Total harmonic distortion
Rated power at 1 kHz 1% (6 Q)
Half power at 1 kHz 0.09% (6 Q)
Load impedance 6Q-—-82
Tuner/sound processor
ORDER NO. AD9505126C2
Service Manual
Amplifier
SE-CH530
Colour
(K) : Black
Areas
Suffix for Area Colour
Modei No.
(K)
(EG) Germany and italy
Eastern Europe and

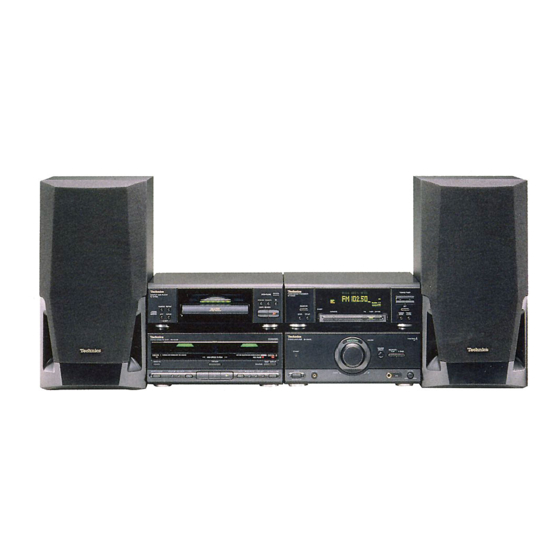

System: SC-CH530
@ General
Power consumption
Power supply
[For (E), (EG) and (EP) areas] 230 V, AC 50/60 Hz
[For (EB) area] 230 — 240 V, AC 50/60 Hz
Dimensions (W x H x D) 270X 118.5 x 341.5 mm
Weight 4.2kg
114 W
Notes:
Specifications are subject to change without notice.
Weight and dimensions are approximate.
Total harmonic distortion is measured by the digital
spectrum analyzer.
*
SB-CH530A
= Made in PAES
RS-CH730
/A\WARNING |
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death,
'Technics
© 1995 Matsushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.
