INSTALLATION INSTRUCTIONS
Please read these instructions throughout before installing as incorrect fitting will invalidate the guarantee.
If you are unsure about these instructions please contact Kudos Shower Products 01539 564040
DUE TO THE WEIGHT & SIZE OF THE GLASS PANEL(s) A MINIMUM OF TWO PERSONS ARE REQUIRED

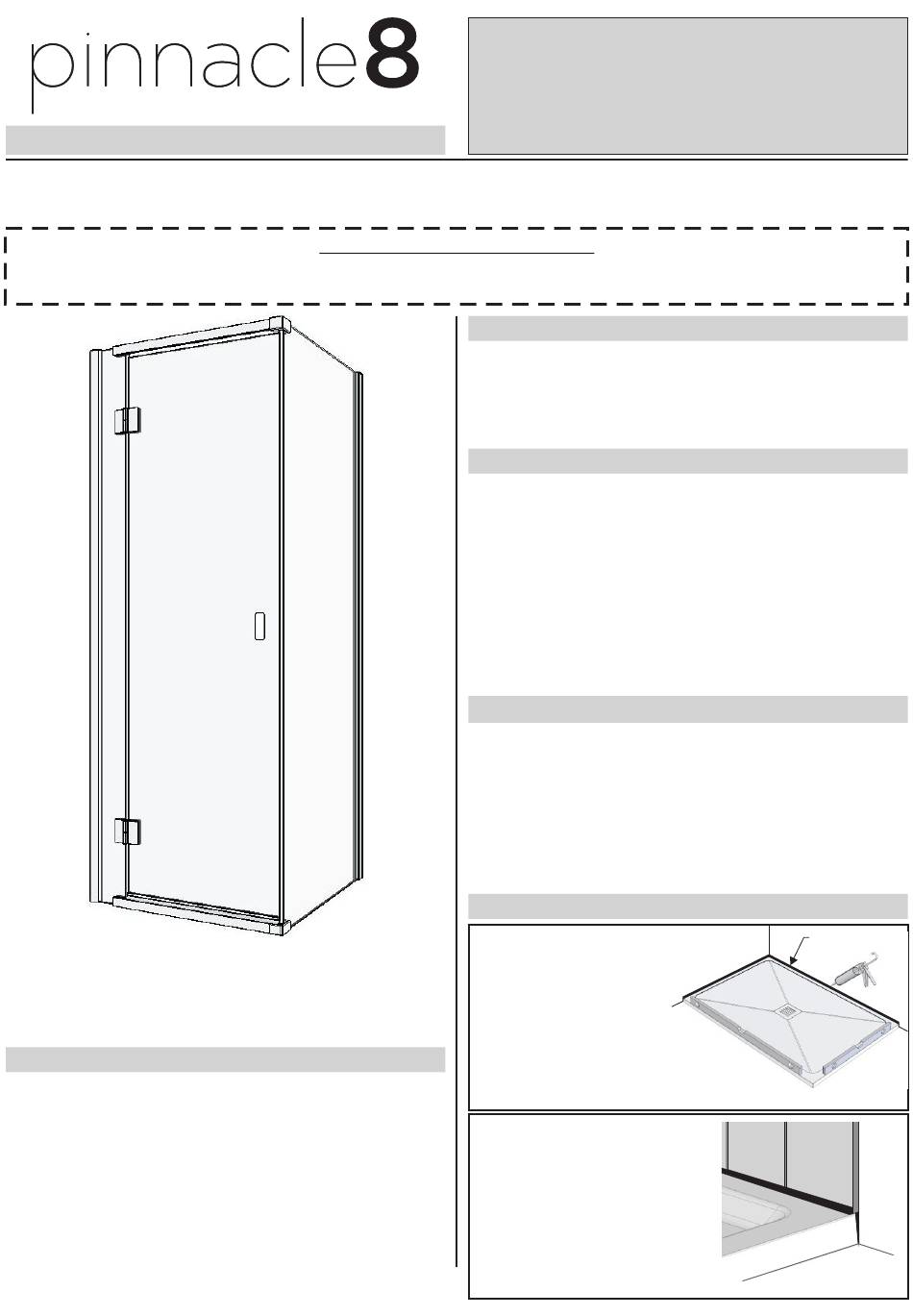

These instructions show a left hand hinged door closing to the
side panel on the right-hand side, as shown above.
If you are installing this product with right hand hinged door
closing to side panel on the left hand side, this is a mirror
image of the stages shown within these instructions.
IMPORTANT
Check appearance of all product - any defects must be reported to
Kudos Shower Products before assembly/installation. Claims for
imperfections will only be accepted prior to assembly/installation
Any claims made under the terms of the Lifetime Guarantee
must be reported to Kudos within 21 days of the fault occurring
Check the enclosure adjustment sizes are suitable for your
installation
Use care when drilling into the walls to avoid hidden pipes or
electric cables
THESE INSTRUCTIONS ARE TO BE LEFT
WITH THE CONSUMER
KUDOS
by
HEALTH & SAFETY WARNING
TO MOVE AND INSTALL THIS ENCLOSURE
HINGED DOOR
for CORNER installation ONLY
- this door closes to side panel -
CLEANING - general
For the wall post and fixings use only warm soapy water and damp
cloth/ sponge on a regular basis. After cleaning please rinse with
clean water to remove any residue.
Do not use abrasive scouring powders, chemicals or aerosol
cleaners - these may result in damage to the surfaces, in particular,
the plated component parts.
KUDOS LIFESHIELD GLASS TREATMENT
The glass panels are pre-treated with Life Shield on the inside
surfaces only.
Whilst this makes cleaning the glass easier and helps prevent the
build up of harmful lime-scale and soap deposits, the glass still
needs to be maintained on a regular basis. We recommend the use
of a detergent and aroma free glass cleaner (A 50/50 mix of white
vinegar and water works well)
DO NOT use strong detergents, abrasive cleaners or abrasive
scrubbing equipment for cleaning, these can damage the coating.
DO use a squeegee to remove remaining droplets of water from
glass after showering, any build up of residue can be removed
easily using an appropriate cleaner and agitation from soft cleaning
equipment
TOOLS REQUIRED
Pozi-head Screwdriver
Tape Measure
Spirit Level
3mm Allen Key - supplied
Craft knife
Silicone Sealant - we recommend clear silicone
Wall fixings - fixings supplied are for masonry use only
NB - due to the manufacturing tolerances for safety glass, it may be
necessary to make the adjustments described in stage 17 of these
instructions to achieve the correct closing action.
SHOWERTRAY
Ensure the top of shower tray
is LEVEL in ALL directions
Once the tray is installed but
before the wall tiles are fitted,
any gap between the tray and
the walls must be filled with
silicone sealant flush with the
top of the tray.
Once the walls have been tiled but
before the enclosure is installed,
the tiles must be silicone sealed to
the tray all of the way around in one
continuous bead.
Failure to follow these
instructions will result in leakage
problems
Mains or Battery Drill
7mm Drill Bit
Pencil
Sealant Gun
silicone sealant
Stage 1
Stage 2
