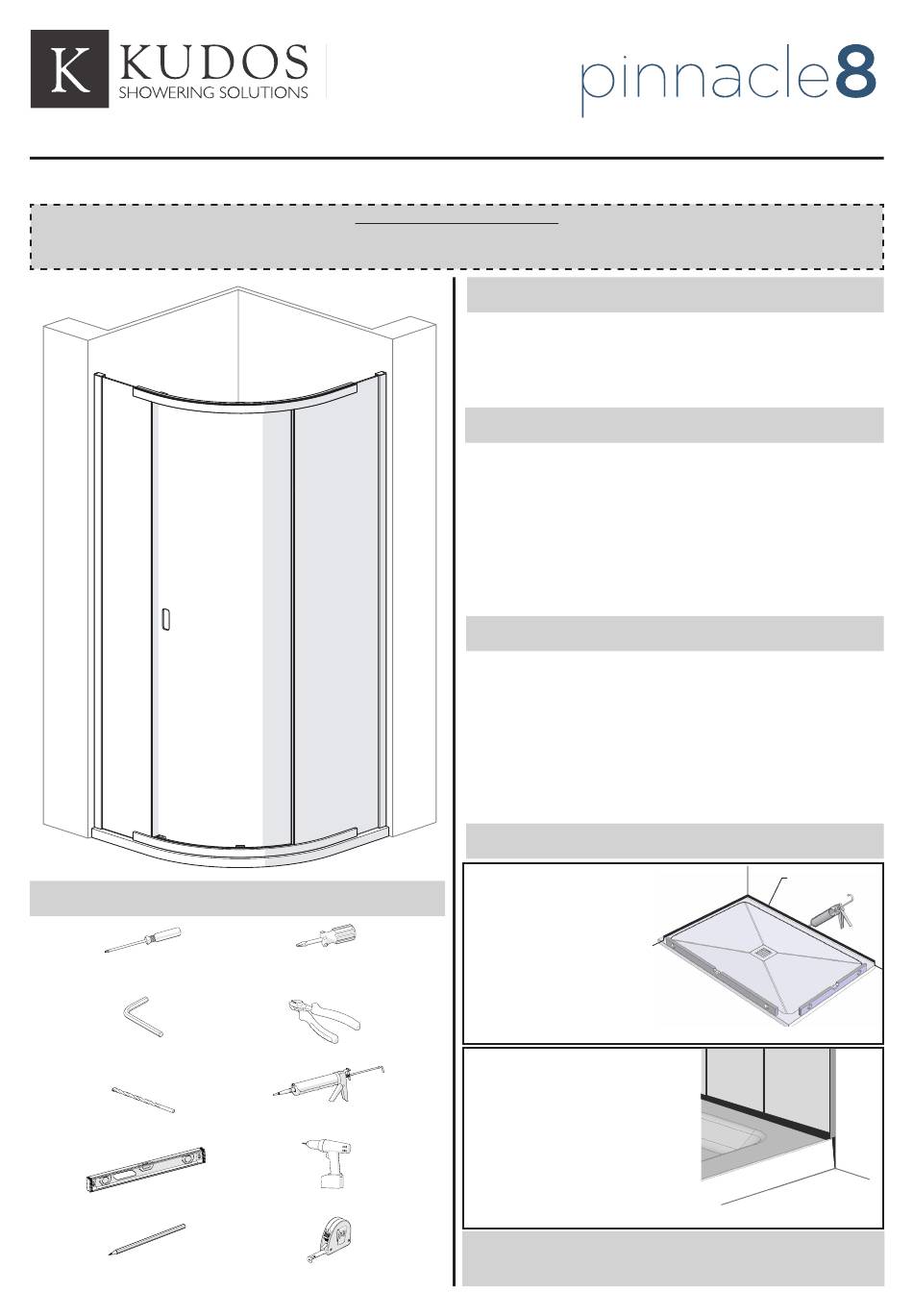

KUDOS pinnacle 8 CURVED QUAD Installation Instructions Manual

INSTALLATION INSTRUCTIONS - CURVED QUAD
Please read these instructions throughout before installing as incorrect fitting will invalidate the guarantee.
If you are unsure about these instructions please contact Kudos Shower Products 01539 564040.
DUE TO THE WEIGHT & SIZE OF THE GLASS PANEL(s) A MINIMUM OF TWO PERSONS ARE REQUIRED
Tools Required
Pozi-head Screwdriver
3mm Allen Key - supplied
7mm Masonry Drill Bit
Spirit Level
Pencil
HEALTH & SAFETY WARNING
TO MOVE AND INSTALL THIS ENCLOSURE
Flat-head Screwdriver
Cutting Pliers
Clear Silicone Sealant
Drill (Battery or Mains)
Tape Measure
Cleaning - General
For the wall post and fixings use only warm soapy water and damp cloth/ sponge
on a regular basis. After cleaning please rinse with clean water to remove any
residue.
Do not use abrasive scouring powders, chemicals or aerosol cleaners - these may
result in damage to the surfaces, in particular, the plated component parts.
Kudos LifeShield Glass Treatment
The glass panels are pre-treated with Life Shield on the inside surfaces only.
Whilst this makes cleaning the glass easier and helps prevent the build up of
harmful lime-scale and soap deposits, the glass still needs to be maintained on a
regular basis. We recommend the use of a detergent and aroma free glass cleaner
(A 50/50 mix of white vinegar and water works well).
DO NOT use strong detergents, abrasive cleaners or abrasive scrubbing
equipment for cleaning, these can damage the coating.
DO use a squeegee to remove remaining droplets of water from glass after
showering, any build up of residue can be removed easily using an appropriate
cleaner and agitation from soft cleaning equipment.
Important
Check appearance of all product - any defects must be reported to Kudos Shower
Products before assembly/installation. Claims for imperfections will only be
accepted prior to assembly/installation.
Any claims made under the terms of the Lifetime Guarantee must be reported to
Kudos within 21 days of the fault occurring.
Check the enclosure adjustment sizes are suitable for your installation.
Use care when drilling into the walls to avoid hidden pipes or electric cables.
Shower Tray
Ensure the top of shower tray is
LEVEL in ALL directions.
Once the tray is installed but
before the wall tiles are fitted, any
gap between the tray and the walls
must be filled with silicone sealant
flush with the top of the tray.
Once the walls have been tiled but
before the enclosure is installed,
the tiles must be silicone sealed to
the tray all of the way around in
one continuous bead.
Failure to follow these
instructions will result in
leakage problems.
THESE INSTRUCTIONS ARE TO BE LEFT
WITH THE CONSUMER
1
silicone sealant
Stage 1
Stage 2
Issue 01 JAN.20
