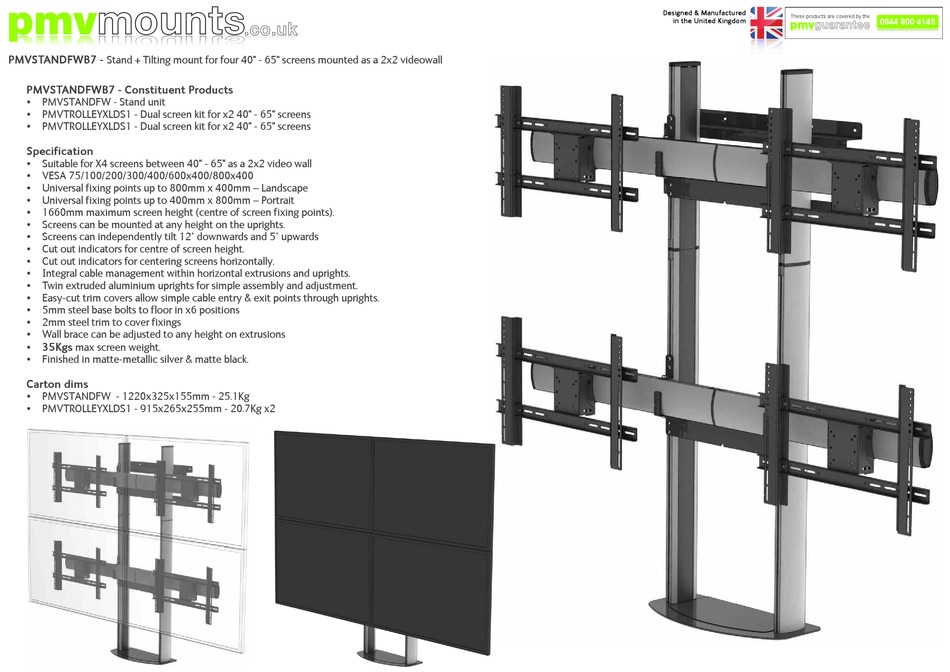

PMVSTANDFWB7 - Stand + Tilting mount for four 40" - 65" screens mounted as a 2x2 videowall
PMVSTANDFWB7 - Constituent Products
PMVSTANDFW - Stand unit

PMVTROLLEYXLDS1 - Dual screen kit for x2 40" - 65" screens

PMVTROLLEYXLDS1 - Dual screen kit for x2 40" - 65" screens


Specification

Suitable for X4 screens between 40" - 65" as a 2x2 video wall

VESA 75/100/200/300/400/600x400/800x400

Universal fixing points up to 800mm x 400mm – Landscape

Universal fixing points up to 400mm x 800mm – Portrait

1660mm maximum screen height (centre of screen fixing points).

Screens can be mounted at any height on the uprights.

Screens can independently tilt 12° downwards and 5° upwards

Cut out indicators for centre of screen height.

Cut out indicators for centering screens horizontally.

Integral cable management within horizontal extrusions and uprights.

Twin extruded aluminium uprights for simple assembly and adjustment.

Easy-cut trim covers allow simple cable entry & exit points through uprights.

5mm steel base bolts to floor in x6 positions

2mm steel trim to cover fixings

Wall brace can be adjusted to any height on extrusions

35Kgs max screen weight.

Finished in matte-metallic silver & matte black.


Carton dims

PMVSTANDFW - 1220x325x155mm - 25.1Kg

PMVTROLLEYXLDS1 - 915x265x255mm - 20.7Kg x2

