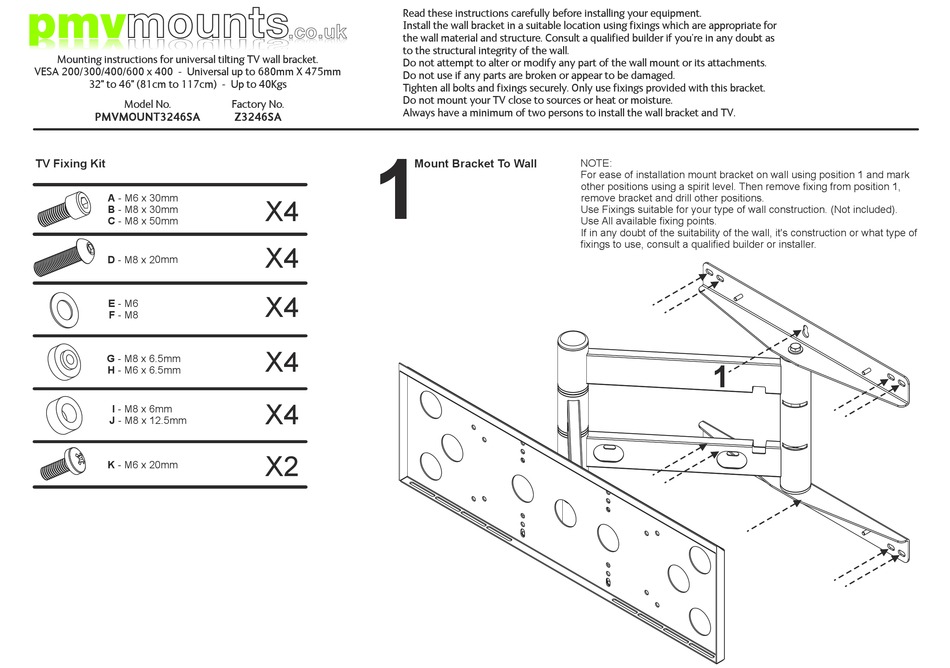

PMV Mounts PMVMOUNT3246SA Mounting Instructions

pmvmounts

Mounting instructions for universal tilting TV wall bracket.

VESA 200/300/400/600 x 400 - Universal up to 680mm X 475mm
32" to 46" (81cm to 117cm) - Up to 40Kgs
Model No.
PMVMOUNT3246SA

TV Fixing Kit

A - M6 x 30mm
B - M8 x 30mm
C - M8 x 50mm
D - M8 x 20mm
E - M6
F - M8
G - M8 x 6.5mm
H - M6 x 6.5mm
I - M8 x 6mm
J - M8 x 12.5mm
K - M6 x 20mm
Read these instructions carefully before installing your equipment.
Ÿ
Install the wall bracket in a suitable location using fixings which are appropriate for
Ÿ
.co.uk
the wall material and structure. Consult a qualified builder if you're in any doubt as
to the structural integrity of the wall.
Do not attempt to alter or modify any part of the wall mount or its attachments.
Ÿ
Do not use if any parts are broken or appear to be damaged.
Ÿ
Tighten all bolts and fixings securely. Only use fixings provided with this bracket.
Ÿ
Do not mount your TV close to sources or heat or moisture.
Ÿ
Factory No.
Always have a minimum of two persons to install the wall bracket and TV.
Ÿ
Z3246SA
1
X4
X4
X4
X4
X4
X2
Mount Bracket To Wall NOTE:
For ease of installation mount bracket on wall using position 1 and mark
other positions using a spirit level. Then remove fixing from position 1,
remove bracket and drill other positions.
Use Fixings suitable for your type of wall construction. (Not included).
Use All available fixing points.
If in any doubt of the suitability of the wall, it's construction or what type of
fixings to use, consult a qualified builder or installer.
1
