Summary of Contents for Total TDLI200215

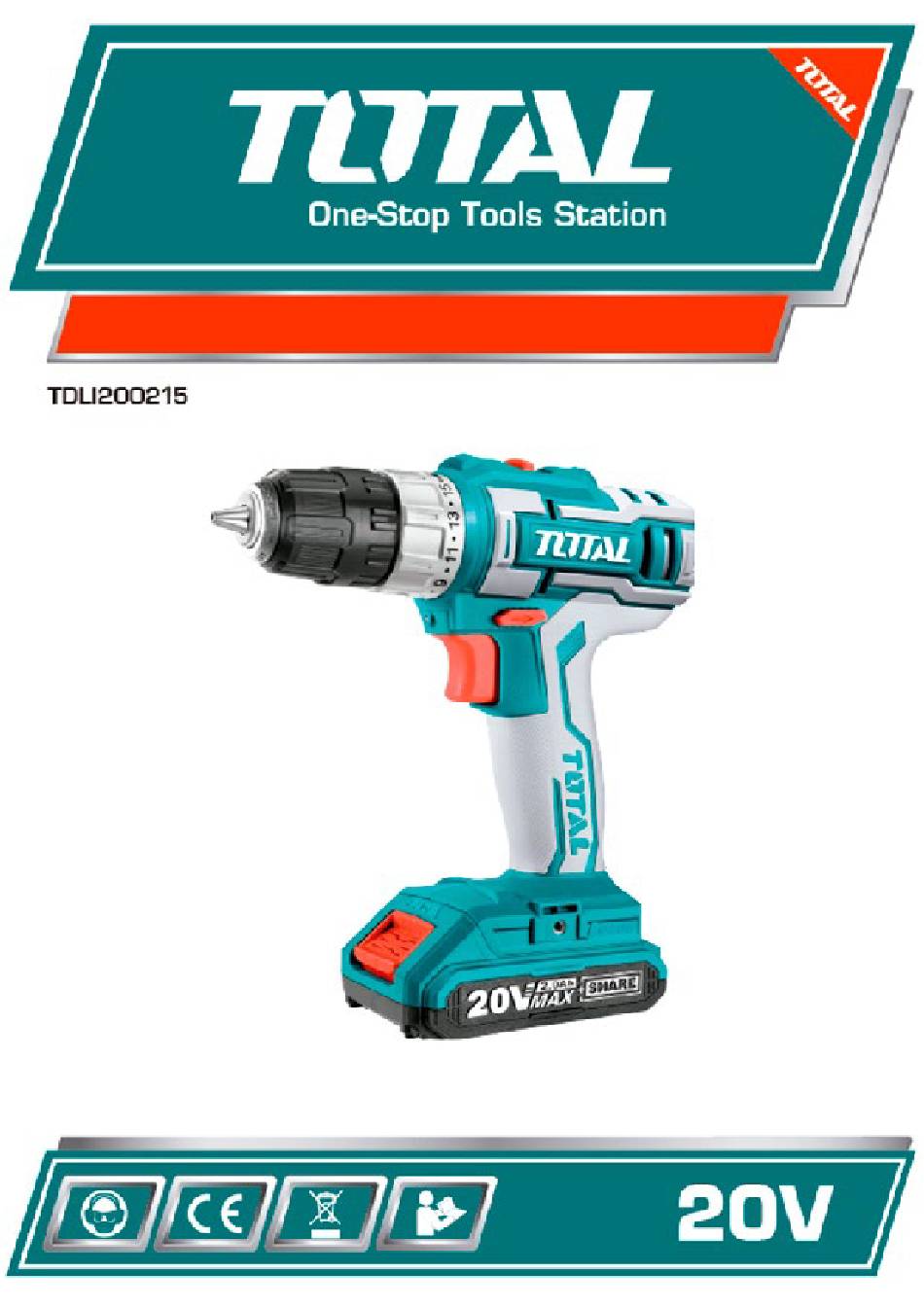

- Page 1 CORDLESS DRILL...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of the cordless tool a. Recharge the battery only with the charger specified by the manufacturer. An unsuitable charger can create a fire hazard. b. Use power tools only with specifically designated batteries. The use of other batteries may create a risk of injury or fire.
-
Page 4: Additional Safety Warnings
Safety rules for correct use Double insulation for additional protection Read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all residual risk factors: a. Health defects resulting from the emission of vibrations if the power tool is used for a longer period of time or if it is not properly managed and maintained. b. -
Page 6: Other Warnings
Other warnings Save these instructions Attention Do not let comfort or familiarity with the product (gained from repeated use) replace strict adherence to the safety rules for the product in question. Misuse or failure to follow the safety rules outlined in this instruction manual can cause serious personal injury. Symbols The symbols used for the tool are shown below. -
Page 7: Product Description
2. Never recharge a fully charged battery. Overcharging shortens the life of the battery. 3. Charge the battery cartridge at room temperature of 10 ° C to 40 ° C (50 ° F to 104 ° F). Allow a hot battery cartridge to cool down before charging. 4. - Page 8 Indication of remaining battery capacity 1. Indicator lights two. Check button Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lights come on for a few seconds. Indicators Remaining capacity Switched on > 80% 30% to 80% <30% Note: Depending on the conditions of use and the ambient temperature, the indication may differ...
- Page 9 Electric brake This tool is equipped with an electric brake. If the tool does not stop quickly after releasing the switch trigger, have the tool repaired at a TOTAL service center. Illuminating the headlight 1. Light Squeeze the switch trigger to turn on the light.
- Page 10 Attention Always check the direction of rotation before operation. Use the reverse switch only after the tool has come to a complete stop. Changing the direction of rotation before the tool stops can damage the tool. When not operating the tool, always place the reversing switch lever in the neutral position.
- Page 11 The clutch will slip at various levels of torque when set to number 1 to 15. Clutch does not work at the mark . Before actual operation, insert a trial screw into your material or a duplicate piece of material to determine what level of torque is required for a particular application. 1.
- Page 12 To remove the bit, turn the sleeve counterclockwise. • Start up Attention Always insert the battery cartridge all the way until it clicks into place. If you can see the red part at the top of the button, it is not completely locked. Insert it all the way until the red part is no longer visible.
- Page 13 Drill in metal To prevent the bit from slipping when starting a hole, make a dent with a center punch and hammer at the point to be drilled. Place the tip of the drill bit into the notch and begin drilling.
-
Page 14: Exploded View
Exploded view... - Page 15 CORDLESS DRILL...
