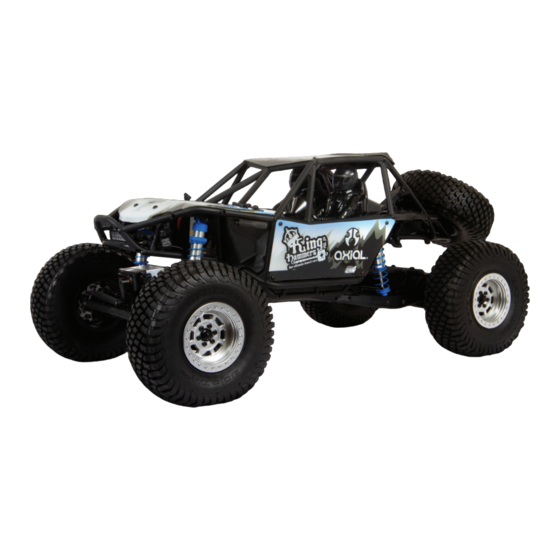

Summary of Contents for Horizon Hobby axial RR10 BOMBER

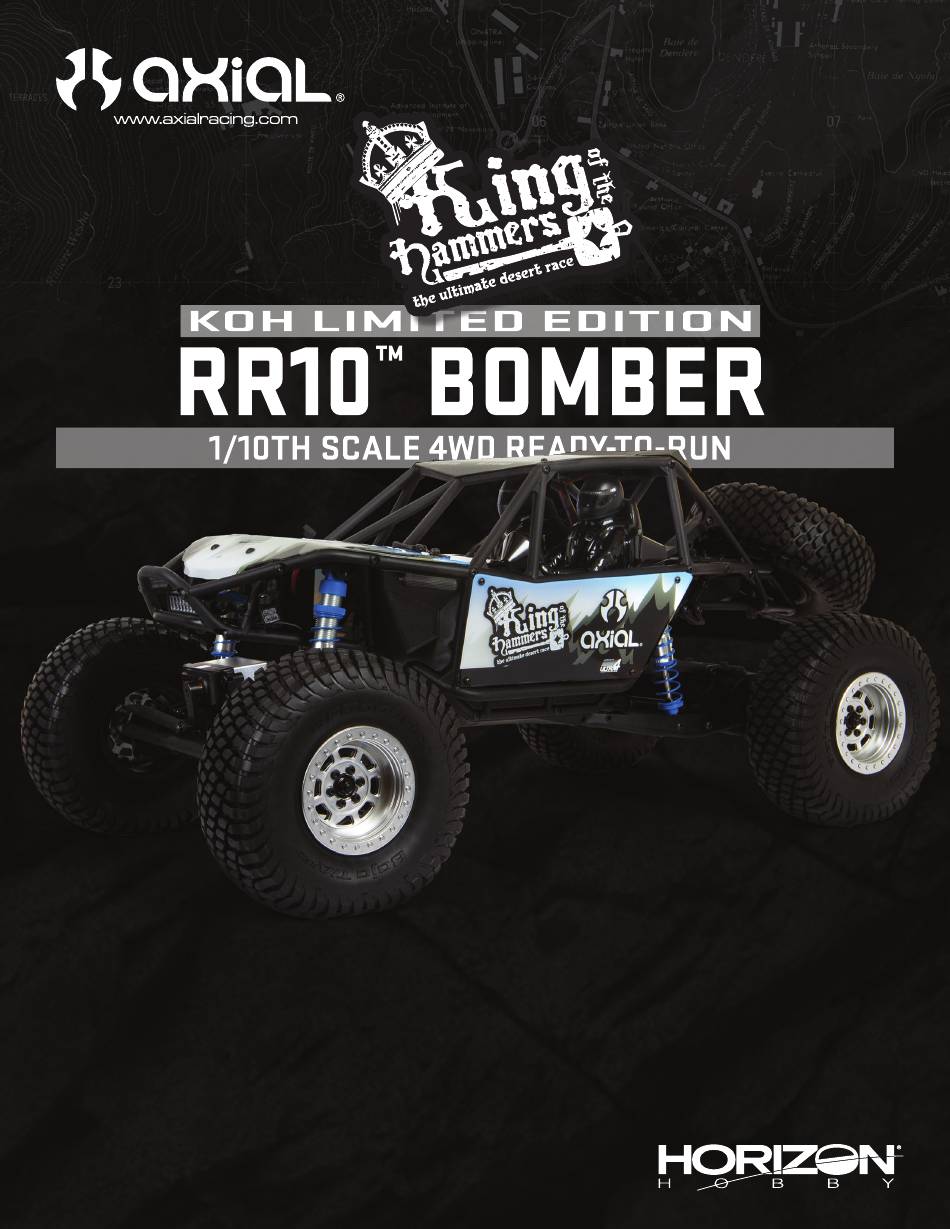

- Page 1 AXI03013 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE...
-
Page 3: Table Of Contents
Optional Parts ......................63 MAINTAINING YOUR VEHICLE ................9 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with a WET CONDITIONS MAINTENANCE combination of waterproof and water-resistant components to allow you to • Drain any water that has collected in the tires by spinning them at high operate the product in many “wet conditions,”... -
Page 4: Box Contents
BOX CONTENTS • Spektrum 2.4GHz Transmitter (SPMS2340T) ™ ™ • KOH Special Edition RR10 Bomber 1/10th 4WD RTR (AXI03013) ™ • Parts Bag • Cross Wrench - SR315 3CH Receiver (SPMSR315) - S614 15KG Servo (SPMS614) - 35T Brushed Motor (AX31312) - AE-5L ESC w/LED (DYNS2213) REQUIRED EQUIPMENT •... -
Page 5: Vehicle Parts
VEHICLE PARTS Steering Rack Steering Knuckle Steering Servo Upper 4-link Bar C-Hub Shock Absorber Receiver Box Driveshaft Battery Tray Electronic Speed Control (ESC) Transmission Motor Spur/Pinion/Slipper (Under Cover) Lower 4-link Bar Differential Spare Tire Carrier (inside axle housing) -
Page 6: Charge The Vehicle Battery
CHARGE THE VEHICLE BATTERY Follow the manufacturer’s directions for your charger to properly charge the vehicle battery. CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could result in a fire causing personal injury or damage to property. INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries. -
Page 7: Install The Vehicle Battery
INSTALL THE VEHICLE BATTERY 1. Turn on the transmitter. 2. Connect the battery. 3. Install the battery. 4. Close the battery tray and hood. Power to the vehicle is controlled by connecting/disconnecting the battery. -
Page 8: Binding
BINDING Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The SPM2340 transmitter and SR315 receiver are bound from the factory. If you need to rebind, follow the instructions below. 1. -
Page 9: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain your vehicle. Replace any Check for wear on Check driveshaft... -
Page 10: Dyns2213 Forward/Reverse Esc With Drag Brake
DYNS2213 FORWARD/REVERSE ESC WITH DRAG BRAKE To Receiver Throttle Channel Battery Motor Black SPECIFICATIONS Type Brushed Constant/Peak 60A/360A Resistance 0.0008 Ohms Forward/Brake/Reverse, Forward/Brake, Function Forward/Reverse (Crawler Mode) Vehicle Type 1/10 on-road and off-road; 1/10 rock crawler Proportional forward, proportional reverse with Operation braking delay, Crawler Mode Mode... -
Page 11: Gear Ratio
(iii) modification of or to any part of the Product, (iv) attempted setup, final assembly, modification or misuse, no liability shall be assumed service by anyone other than a Horizon Hobby authorized service center, (v) nor accepted for any resulting damage or injury. By the act of use, setup Product not purchased from an authorized Horizon dealer, or (vi) Product not or assembly, the user accepts all resulting liability. -
Page 12: Warranty And Service Contact Information
Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 European Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 FCC INFORMATION harmful interference in a residential installation. This equipment CONTAINS FCC ID: BRWKATY1T generates, uses and can radiate radio frequency energy and, if not... -
Page 13: Ic Information
Axial KOH Special Edition RR10 Bomber 1/10th 4WD RTR 2904 Research Road (AXI03013) Champaign, IL 61822 USA Hereby, Horizon Hobby, LLC declares that the device is in compliance with EU Importer of Record: the following: EU Radio Equipment Directive 2014/53/EU; RoHS 2 Directive Horizon Hobby, GmbH 2011/65/EU;... -
Page 14: Parts Reference
PARTS REFERENCE // TEILEREFERENZ // RÉFÉRENCES DES PIÈCES // RIFERIMENTO COMPONENTI AX80034 (x2) / AX31300 (Blue) (x2) AX80018 (x3) 10mm Shock Parts Tree 2 AX80033 (x2) Hardware parts tree 10 mm Stoßdämpfer-Teilebaum 10mm shock parts tree Hardware-Teilebaum AX80035 (x2) / AX31301 (Blue) (x2) Arbre des pièces d’amortisseurs 10 mm 10 mm Stoßdämpfer-Teilebaum Arbre des pièces de quincaillerie... - Page 15 AX31109 (x1) Yeti™ Rear 4 Link Set Yeti™ 4-gliedriger Gelenksatz hinten Ensemble de 4 bras arrière Yeti™ Set 4 braccetti Yeti™ posteriore AX31332 (x1) RR10 Battery Tray Chassis Components 2 RR10 Akkufach Karosseriebauteile 2 Composants du châssis du support de batterie RR10 2 2 componenti telaio supporto batteria RR10 AX80083 (x1) Wraith Links Set...
- Page 16 AX31106 (x1) 2-Speed Hi/Lo Transmission Motor Mount 2-Geschwindigkeiten Hi/Lo Getriebe Motorhalterung Support moteur de la transmission élevé/faible 2 vitesses Supporto motore trasmissione 2 velocità alta/bassa (HI/LO) AX31096 AX31152 (x1) AXI230014 (x1) Universal Rigid Light Bar Set RR10 Rear Light Bar Mount Starrer Universal-Leuchtbalkensatz RR10 Hintere Leuchtbalkenhalterung Rampe d’éclairage universelle rigide...
- Page 17 AX31322(x1) RR10 Cage Sides (Left and Right) RR10 Gehäuseseiten (Links und Rechts) Côtés de la cage RR10 (gauche et droite) Scocca di protezione laterale (dx e sx) RR10 AX31321(x1) RR10 Cage Lower Rails RR10 Gehäuse untere Schienen Rails inférieurs de la cage RR10 Guide inferiori custodia RR10...
- Page 18 AX31314 (x4) Aluminum Shock Body 12x47.5mm Aluminium Stoßdämpfergehäuse 12 x 47,5 mmAluminum Carrosserie d’amortisseurs en aluminium 12 x 47,5 mm Corpo ammortizzatore in alluminio 12x47,5 mm AX31148 (x4) WB8-HD Driveshaft coupler set WB8-HD-Antriebswellenkupplungssatz AX30392 (x2) Ensemble de couplage d’arbre de Bevel Gear Set - 38T/13T AX30500 (x2) transmission WB8-HD Kegelradgetriebesatz −...
- Page 19 AX30368 (x2) Axle, 6 x 39mm AX30224 (x2) / AX31315 (Blue) (x2) Achse, 6 x 39 mm Spring 14x70mm 1.43 lbs/in Essieu, 6 x 39 mm Feder 14 x 70 mm 1,43 lbs/in Assale ,6 x 39 mm Ressort 14 x 70 mm 1,43 lb/po Molla 14x70 mm 1,43 lbs/in AX31313 (x1) Transfer Case Output Shaft (5x69mm) Transfergehäuse Antriebswelle (5 x 69 mm) Arbre de sortie de la boîte de transfert (5 x 69 mm)
- Page 20 AXA1184 (x4) AX30163 (x5) Pin 2x10mm O-Ring 7.5 x 1.5mm O-Ring 7,5 x 1.5mm Stift 2 x 10 mm Goupille 2 x 10 mm Joint torique 7,5 x 1.5mm O-Ring 7.5 x 1.5mm Perno 2 x 10 mm AX31028 (x8) AXA1221 (x20) Pin 2x11mm Bearing 5x11x4mm...
- Page 21 AX31280 (x16) AXA148 (x8) M2.6x6mm Hex Socket Button Head M3x18mm Hex Socket Flat Head M2.6x6mm Sechskant-Rundkopf M3 x 18 mm Sechskant-Flachkopf Douille à six pans à tête bombée M2.6x6mm Douille à six pans à tête plate M3 x 18 mm Vite testa tonda con esagono incassato M2.6x6mm Vite testa piana con esagono incassato M3x18 mm AXA150 (x3)
- Page 26 AX31301 AX80035 AX30112 AXA1041 AXA1069 AX80033 AXA1069 AX31055 AX31314 AX31301 AX80035 AXA1202 AX31301 AX80035 AXA1202 AXA1184 AX31301 AX80035 AX31301 AX80035 AX31336 AX31315 AX30221 AX30224 AX30113 AX31300 AX80034 AX31300 AX80034...
-
Page 27: Parts Lists
PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Part # Description Beschreibung Description Descrizione AXI230014 RR10 Rear Light Bar Mount Set RR10 Hintere Leuchtbalkenhalterung Support de rampe d’éclairage arrière RR10 Supporto barra luminosa posteriore RR10 Renvoi de commande de servo AXI231007 23T Metal Servo Horn 23T Metall-Servohorn... - Page 28 Part # Description Beschreibung Description Descrizione AXIC0291 AXA291 Set Scr M4x4mm Blk Ox(6 M4 x 4 mm Schraubensatz Vis de fixation M4 x 4 mm Vite di arresto M4x4 mm AXIC0368 AX30368 Axle 6x39mm (2) Achse, 6 x 39 mm Essieu, 6 x 39 mm Assale ,6 x 39 mm AXIC0393 AXA1393 E-clip E2.5 (10)
- Page 29 Part # Description Beschreibung Description Descrizione Douille à six pans à tête bombée Vite testa tonda con esagono AXIC1280 AX31280 Hex Button M2.6x6mm(10) M2.6 x 6 mm Sechskant-Rundkopf M2.6 x 6 mm incassato M2.6 x 6 mm AXIC1291 AX31315 Spring 14x70mm 1.43lbs (2) Feder 14 x 70 mm 1,43 lbs/in Ressort 14 x 70 mm 1,43 lb/po Molla 14x70 mm 1,43 lbs/in AXIC1292...
-
Page 30: Optional Parts
OPTIONAL PARTS // OPTIONALE TEILE // PIÈCES EN OPTION // PARTI OPZIONALI Part # Description Beschreibung Description Descrizione 2.2 TrailReady HD Beadlock, matt, 2 Verrou de talon haute résistance Trail AXI43006 2.2 Trail Rdy HD Bdlck Satin 2p Crch 2.2 Trail Rdy HD Bdlk Stn (2) Ready 2.2, satiné... - Page 31 Part # Description Beschreibung Description Descrizione AX31172 Icon 67–90 mm, Aluminium, Amortisseur en aluminium icône 67- AXIC1172 AX31172 Icon 67-90mm Alum Shk AX31172 Amm alu Icon 67-90 mm Stoßdämpfer 90 mm AX31172 AX31173 Icon 93–137, Ensemble d’amortisseurs icône 93-137 AXIC1173 AX31173 Icon 93-137 Shock Set AX31173 Set amm Icon 93-137 Stoßdämpfersatz AX31173...
- Page 32 Part # Description Beschreibung Description Descrizione Ensemble casque tête de mort AXIC8031 AX80131 Skull Helmet Set AX80131 Skull-Helmet-Satz AX80131 Kit casco Skull Helmet AX80131 AX08061 2.2 Comp. Beadlock-Rad Roue de talon complète 2.2 XR10 AXIC8061 AX08061 2.2 Comp Bdlk Whl XR10 AX08061 Cerchi 2.2 Comp Bdlk XR10 XR10 AX08061...
- Page 33 | flickr.com/axialrc ©2021 Horizon Hobby, LLC. Axial, the Axial logo, RR10, DX3, DSM, IC3, EC3, the Smart Technology logo, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Bomber Fabrication and associated logos and designs are property of Randy Slawson, used under license.
