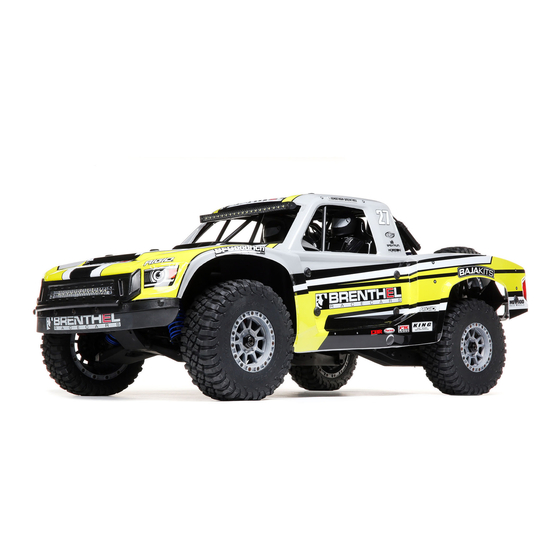

- Page 1 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI Before operating this vehicle, please read all printed materials thoroughly. Horizon Hobby is not responsible for inadvertent errors in this manual.
-
Page 2: Safety Precautions And Warnings
This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and mainte- nance. -
Page 3: Table Of Contents
QUICK START Please read the entire manual to gain a full understanding of the Super Baja Rey vehicle, fine-tuning the setup and performing maintenance. 1. Read the safety precautions found in this manual. 5. Power ON the transmitter and then the vehicle. Wait 5 seconds for the ESC to initialize. -
Page 4: Installing The Batteries
INSTALLING THE BATTERIES 1. Ensure the ESC is powered OFF. 2. Pull the battery door release to release the battery cover. 3. Remove the battery cover. 4. Install fully charged batteries into the vehicle. TIP: Run the battery plugs out through the plug hole in the battery compartment. 5. -
Page 5: Sr6100At Avc Technology Telemetry Receiver
SR6100AT AVC TECHNOLOGY TELEMETRY RECEIVER Bind Button AUX CHANNELS Battery/Programming Port The Aux channels can operate as additional servo channels, or as a power supply for a personal transponder. Steering Port Throttle Port If AVC is active, only 4 channels; Steering, Throttle, AUX3 and AUX4 are operational. AUX 1 Port The reaming Aux channels can be used to power a personal transponder or lights. -
Page 6: Powering On The Vehicle
POWERING ON THE VEHICLE 1. Center the ST TRIM and TH TRIM dials on the transmitter. 2. Power on the transmitter. 3. Connect the fully charged battery packs to the ESC. 4. Power on the ESC. IMPORTANT: The vehicle MUST remain on a flat, level surface and motionless for at least 5 seconds. -
Page 7: Run Time
RUN TIME TO IMPROVE RUN TIMES • Keep your vehicle clean and well maintained. The largest factor in run time is the capacity of the battery pack. A larger mAh rating • Allow more airflow to the ESC and motor. increases the amount of run time experienced. -
Page 8: Esc Functions
ESC FUNCTIONS SPECIFICATIONS ESC CALIBRATION PROCEDURE Ensure proper ESC function by calibrating the ESC to your transmitter inputs. Type Sensorless 1. Power OFF the ESC. Constant/Peak 160A/1050A 2. Ensure your transmitter is powered ON, the throttle is not reversed, the Resistance 0.0002Ohm throttle trim is neutral and the throttle travel range is at 100%. -
Page 9: Troubleshooting Guide
Pack the Product securely using a shipping carton. Please note that original boxes may be in- attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product cluded, but are not designed to withstand the rigors of shipping without additional protection. -
Page 10: Warranty And Service Contact Information
RSS standard(s). Operation is subject to the following two conditions: (1) this device interference that may cause undesired operation of the device. EU Compliance Statement: Horizon Hobby, LLC hereby declares that this Instructions for disposal of WEEE by users in the... -
Page 11: Replacement Parts
Replacement Parts // Ersatzteile // Pièces de rechange // Pezzi di ricambio Part # English Deutsch Français Italiano LOS235007 Button Head Screw, M3 x 12mm (10) Rundkopfschraube, M3 x 12mm (10) Vis à tête bombée M3 x 12 mm (10) Viti a bottone, M3 x 12 mm (10) LOS235009 Flat Head Screw, M2.5 x 8mm (10) - Page 12 Replacement Parts // Ersatzteile // Pièces de rechange // Pezzi di ricambio Part # English Deutsch Français Italiano Stoßdämpfer- und Stangenenden, Extrémités d’amortisseurs et embouts Ammortizzatore e teste a snodo, coppe a LOS254034 Shock and Rod Ends, Spring Cups (12) Federteller (12) de bielle, coupelles de ressorts (12) molla (12)
-
Page 13: Recommended Parts
Replacement Parts // Ersatzteile // Pièces de rechange // Pezzi di ricambio Part # English Deutsch Français Italiano TLR5901 Button Head Screw, M3 x 6mm (10) Rundkopfschraube, M3 x 6mm (10) Vis à tête bombée M3 x 6 mm (10) Viti a bottone, M3 x 6 mm (10) TLR5902 Button Head Screw, M3 x 8mm (10) - Page 14 LOSI SUPER BAJA REY 2.0, SMART ESC:1/6TH 4WD RTR ® ®...
- Page 15 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS43029 3029 LOS251112 LOS251112 TLR5904 TLR5904 TLR5904 TLR5904 TLR5911 TLR5904 TLR5911 TLR5904 LOS251111 LOS251111 TLR5904 TLR5904 TLR5904 LOS255017 LOS251110 TLR5904 LOS255017 LOS251110 TLR5911 TLR5904 LOS251110 TLR5911 TLR5904 LOS251110 LOS251111...
- Page 16 TLR5911 LOS251110 TLR5911 TLR5911 TLR5911 TLR5911 LOS251110 TLR5911 LOS251109 LOS251110 TLR5911 LOS251109 TLR5911 LOS251107 LOS251108 LOS251110 TLR5911 LOS251063 LOS255017 TLR5911 TLR5911 LOS251110 TLR5911 LOS251063 LOS255017 LOS251109 LOS250022 TLR5911 LOS251109 LOS250022 LOS251110 LOS251108 LOS251107 LOS251107 TLR5911 TLR5911 TLR5909 LOS251063 LOS255017 TLR5911 LOS250022 TLR5909 Front Shock...
- Page 17 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOSA252087 LOS252131 LOS252084 TLR5964 LOS252075 LOSA6942 LOS252069 LOS252087 LOS252070 LOS252075 LOS252076 LOS255014 LOS252073 TLR5932 TLR255009 TLR6313 LOS252069 LOSA6942 LOS257006 LOS252074 LOS257006 TLR255009 LOS252087 TLR6313 LOS252080 TLR255014 LOS255017 TLR5932 TLR5964...
- Page 18 LOS257006 LOS252087 LOS252083 TLR256005 SPMXSM2400 TLR256005 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI TLR5909 LOS251112 LOS251112 TLR5904 TLR5906 LOS251112 LOS254040 TLR5909 LOS251112 LOS251055 SPMSR6100AT TLR5911 LOS251112 TLR256005 LOS235009 LOS251058 VTR235035 LOS251058 TLR5933 TLR255010 LOS251058 LOS254040 SPMXSE1160...
- Page 19 LOS250024 LOS6942 LOS254051 LOS250024 LOS255011 LOS254052 LOS252129 EXPLODED VIEW // EXPLOSIONSZEICHNUNG // VUE ÉCLATÉE DES PIÈCES // VISTA ESPLOSA DELLE PARTI LOS252078 LOS250024 TLR5932 LOSA6942 LOS252129 LOS255020 LOS255011 TLR255009 LOS250024 LOS250024 LOS254051 LOSA6942 TLR255008 LOS254051 LOS252071 LOS252081 LOS255011 TLR256005 LOS252071 LOS252082 LOS254051 LOS252071...
- Page 20 ©2020 Horizon Hobby, LLC. Losi, Baja Rey, DSM, DSM2, DSMR, AVC, Active Vehicle Control, EC5, Dynamite, Fuze, Prophet, Firma, DX3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Magnaflow, K&N, Kicker, Fox, Lucas Oil, and their respective logos are used under license by Horizon Hobby, LLC.
