STFV.425238.034-AU-UM rev. 14
GENERAL DESCRIPTION

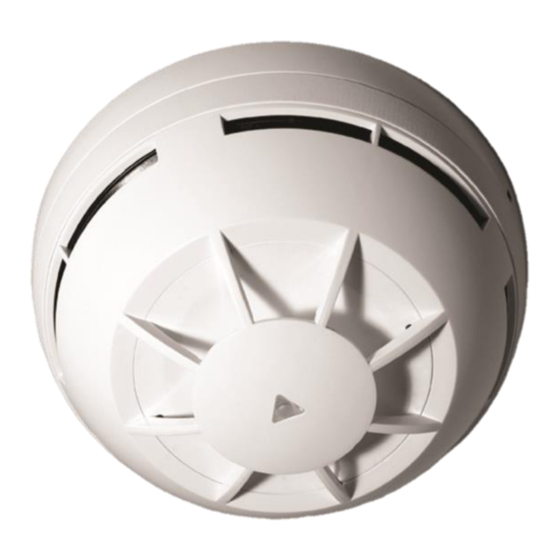

EK-WL8-H is a wireless heat sensor.
The
sensor
analyses
temperature in the protected area. An alarm
condition is generated when the temperature
level or the temperature rise exceeds the
threshold. The alarm signal is relayed to the
Control
Panel
translator/expander modules.
The heat sensor is approved with an A1R
classification.
The device is supplied with a mounting kit.
The product complies with the requirements of the AS ISO 7240.5 and AS ISO
7240.25 standards.
FEATURES
• A1R classified
• Bi-directional wireless communication
• Intelligent algorithms
• Tamper switch
• 10-year battery life
• Self-optimizing wireless frequency and amplitude algorithms
the
environmental
via
the
connected
EK-WL8-H/AU
WIRELESS HEAT SENSOR
10.08.2020
Page 1 from 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-WL8-H and is the answer not in the manual?

Questions and answers

Related Manuals for EKHO EK-WL8-H

Summary of Contents for EKHO EK-WL8-H

  • Page 1 EK-WL8-H/AU WIRELESS HEAT SENSOR STFV.425238.034-AU-UM rev. 14 10.08.2020 Page 1 from 6 GENERAL DESCRIPTION EK-WL8-H is a wireless heat sensor. sensor analyses environmental temperature in the protected area. An alarm condition is generated when the temperature level or the temperature rise exceeds the threshold.

  • Page 2: General Overview

    EK-WL8-H/AU WIRELESS HEAT SENSOR STFV.425238.034-AU-UM rev. 14 10.08.2020 Page 2 from 6 GENERAL OVERVIEW Secondary Main battery battery LED indicator Tamper switch Test alarm switch "Prog." button for initializing the device TECHNICAL SPECIFICATIONS Communication range with a translator or expander...

  • Page 3: Installation

    The “Prog.” button on the device is used for initializing the device on to the system. Please refer to the translator manual for full instructions on how to add a device to the system. The device can also be initialized using the “Ekho Configuration” software.

  • Page 4: Analog Data

    The device provides the translator module with analog data about the current air temperature and voltage levels of its batteries. This information can be viewed in the “Ekho Configuration” software. By analyzing the voltage levels, you can manage maintenance procedures and predict when you will have to replace the batteries.

  • Page 5: Battery Replacement

    EK-WL8-H/AU WIRELESS HEAT SENSOR STFV.425238.034-AU-UM rev. 14 10.08.2020 Page 5 from 6 handling or usage. Product must be returned via an authorized supplier for repair or replacement along with full information on the identified problem. BATTERY REPLACEMENT When a battery requires replacement, both batteries must be changed together.
  • Page 6 EK-WL8-H/AU WIRELESS HEAT SENSOR STFV.425238.034-AU-UM rev. 14 10.08.2020 Page 6 from 6 Hochiki Australia Pty Ltd Block Y, Unit 1 Regents Park Estate 391 Park Rd, Regents Park NSW 2143, Australia Telephone: +61 2 9738 5566 Web: www.hochikiaustralia.com Email: sales@hochikiaustralia.com...
