STFV.425238.032-AU-UM rev. 16
GENERAL DESCRIPTION

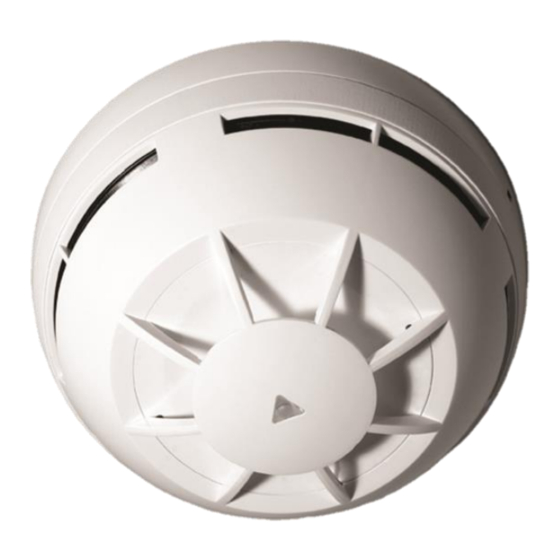

EK-WL8-OH is a wireless multi sensor that in-
corporates a smoke and heat sensor (A1R).
The device analyzes physical factors associated
with fire and the way these factors change
through time. An alarm signal is generated when
the smoke level inside the optical chamber ex-
ceeds a certain threshold or the air temperature
exceeds a threshold value.
The advanced design of the optical chamber
guarantees a very high level of dust protection,
effectively increasing the time between maintenance procedures.
The thermal sensor is A1R type.
The device is supplied with a mounting kit.
The product complies with the requirements of the AS ISO 7240.7, AS ISO 7240.5,
AS ISO 7240.15:2004 and AS ISO 7240.25 standards.
FEATURES
• Bi-directional wireless communication
• Intelligent algorithms
• Tamper switch
• 10-year battery life
• Self-optimizing wireless frequency and amplitude algorithms
• Patented smoke chamber design
EK-WL8-OH/AU
WIRELESS MULTI-SENSOR SENSOR
10.08.2020
Page 1 from 7
Advertisement
Table of Contents
Related Manuals for EKHO EK-WL8-OH
Summary of Contents for EKHO EK-WL8-OH
- Page 1 STFV.425238.032-AU-UM rev. 16 10.08.2020 Page 1 from 7 GENERAL DESCRIPTION EK-WL8-OH is a wireless multi sensor that in- corporates a smoke and heat sensor (A1R). The device analyzes physical factors associated with fire and the way these factors change through time. An alarm signal is generated when...
- Page 2 EK-WL8-OH/AU WIRELESS MULTI-SENSOR SENSOR STFV.425238.032-AU-UM rev. 16 10.08.2020 Page 2 from 7 GENERAL OVERVIEW Secondary Main battery battery LED indicator Tamper switch Test alarm switch "Prog." button for initializing the device TECHNICAL SPECIFICATIONS Communication range with a translator or expander...
- Page 3 The “Prog.” button on the device is used for initializing the device on to the system. Please refer to the translator manual for full instructions on how to add a device to the system. The device can also be initialized using the “Ekho Configuration” soft- ware.
- Page 4 By analyzing the voltage or dust levels you can manage maintenance procedures and predict when you will have to replace the batteries or clean the smoke sensor. Please refer to the software manual for full instructions on how to use the Ekho Configurator for system maintenance.
- Page 5 EK-WL8-OH/AU WIRELESS MULTI-SENSOR SENSOR STFV.425238.032-AU-UM rev. 16 10.08.2020 Page 5 from 7 WARNINGS & LIMITATIONS Devices use high quality electronic components and plastic materials that are highly resistant to environmental deterioration. However, after 10 years continuous oper- ation it is advisable to replace them to reduce the risk of reduced performance caused by external factors.
- Page 6 EK-WL8-OH/AU WIRELESS MULTI-SENSOR SENSOR STFV.425238.032-AU-UM rev. 16 10.08.2020 Page 6 from 7 Failure to observe these instructions will void the device warranty and any liabilities. CAUTION - Replacement of a batteries must be of the same type. - Do not expose used batteries to fire, hot ovens, or mechanical crushing/ cut- ting as this can result in an explosion.
- Page 7 EK-WL8-OH/AU WIRELESS MULTI-SENSOR SENSOR STFV.425238.032-AU-UM rev. 16 10.08.2020 Page 7 from 7 Hochiki Australia Pty Ltd Block Y, Unit 1 Regents Park Estate 391 Park Rd, Regents Park NSW 2143, Australia Telephone: +61 2 9738 5566 Web: www.hochikiaustralia.com Email: sales@hochikiaustralia.com...
