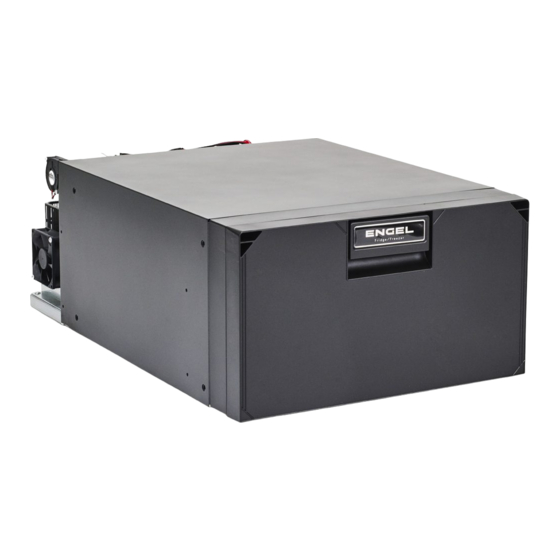

- Page 1 REFRIGERATOR OWNER'S MANUAL MODELS SB30F-N-A SB30F-N-L-A SB30F-N-R-A...
-
Page 2: Table Of Contents
Thank you for purchasing an ENGEL refrigerator. Read this manual carefully before starting to use it. Keep this manual in a safe place for future reference. If the product is resold, this operating manual must accompany it. CONTENTS 1 . Explanation of symbols ............ -
Page 3: Explanation Of Symbols
1. Explanation of symbols The following symbols are used in this OWNER’S MANUAL or on the refrigerator. Failure to observe this instruction WARNING can cause fatal or serious injury. Failure to observe this instruction CAUTION can lead to injury. Failure to observe this instruction NOTICE can cause material damage and impair the function of the product. - Page 4 • Cleaning and user maintenance shall not be made by children without supervision. • Do not store explosive substances such as aerosol cans with a flammable propellant in this refrigerator. • Never expose the refrigerator to rain. •Do not put a water-filled container. Water if spilled will degrade the insulation of electric components and may lead to a fire from electric leak.
- Page 5 with any power source not specified here. Failing to comply will result in product failure or lead to a fire. • Do not attempt to hang on the refrigerator door. Do not sit on the refrigerator while the door is open. Doing so may lead to injuries due to tumbled refrigerator or the fingers being caught in the door.
- Page 6 may damage the refrigerator and lead to a fire. • Do not use the refrigerator near a heated object or gas equipment. Doing so not only reduces cooling performance but would cause a fire when leakage of the utility gas. •...
- Page 7 • Never use a battery charger or transformer or rectifier or battery eliminator or AC/DC converter to power the refrigerator. Doing so may damage the refrigerator. • Never connect the refrigerator directly to an engine generator set. Doing so will lead to poor cooling and may also damage the refrigerator due to the high voltages and surge pulse from the generator set.
- Page 8 NOTICE • If the voltage at the DC input terminals of the refrigerator falls below 11V, cooling performance will immediately decrease. Always keep the battery in good condition to ensure it is fully charged. • Fix the refrigerator firmly to the interior of the vehicle. Failing to do so may lead to injuries from a falling or moving fridge during abrupt acceleration and braking.
- Page 9 fragrance when putting in the refrigerator. • Overstuffing the refrigerator will result in insufficient cooling from poor circulation of cool air and may spoil the stored foods. Keep some spaces between the foods. • Hot or warm food such as boiled product shall be stored after it gets cool enough.
-
Page 10: Intended Use
3. Intended use • The refrigerator is suitable for use in cars, boats, caravans or RVs and is designed to operate an angle of less than 30°off level. 4. Controller and display Temperature setting knob and interior light Temperature setting Turn the temperature setting knob to change the air temperature inside the refrigerator. -
Page 11: Installation And Ventilation
5. Installation and Ventilation Installation 1) Make sure the refrigerator in fitted horizontally. When installing in the Vehicle, make sure the refrigerator is not fitted to an unstable position. 2) Make sure to install the refrigerator where air flow is available. If the cooling unit air flow is contaminated, the cooling system will be degraded. - Page 12 Ventilation CAUTION Failing to keep enough ventilation for cooling will result in reduced product life, poor cooling performance, and excessive current draw from the battery and will also invalidate the warranty. Please never block up the vent. Refer to the picture below to find the correct ventilation. (See Fig.
-
Page 13: Operation
6. Operation Connect only to the following power sources : 12V or 24V DC battery DC 12/24 V input cord + ： Red Cord -- ： Black Cord NOTICE Before starting to use your new refrigerator, its interior as well as exterior shall be thoroughly cleaned with a wet cloth to avoid hygienic issue. - Page 14 2) Connecting refrigerator directly to battery Any switches and lead wires for other electrical equipment should not be shared with the wiring between the refrigerator and the battery. Other equipment can generate high voltage pulses which may cause transistor damage to the refrigerator power supply.
-
Page 15: Wiring Diagram Of Dual Battery Hookup
6.1.2 Wiring diagram of dual battery hookup The wiring diagram shown below is recommended for dual battery hookup. (See Fig. 4) Vehicle AC suppl shoreline cord Field Power converter Alt. or battery charger Gen. Original wiring. Remove Vehicle circuit and connect to power breaker or isolator (terminal). -
Page 16: Maintenance Of Refrigerator
7. Maintenance of refrigerator 7.1 Cleaning interior and door Always disconnect the refrigerator from the power source before you clean or service it. • Clean the interior with a cloth moistened with warm water and wipe again with a dry cloth. •... -
Page 17: Tilt Protection
8. Tilt protection This refrigerator senses the tilt and stops. Stop Start Tilt for 10 seconds Tilt for 1 second above about below about 45〜65 degrees. 20〜30 degrees. ※ Tilt protection still works when tilted in all directions.Operating angle changes depending on the tilt speed. -
Page 18: Disposal
10. Disposal WARNING If you wish to dispose of this refrigerator, contact your local authorities and ask for the correct method of disposal, or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. Cyclopentane is used in the insulation, which requires a special disposal procedure. -
Page 19: Before Initial Use
12. Before initial use 12.1 Relocating the compressor unit This refrigerator’s compressor unit can be located, to 4 different locations. Extra Blower fan Horizontal installation a. Compressor unit b. Compressor unit c. Compressor unit located on the left side located on the end located on the right side Approx.1500mm d. -
Page 20: Direction Of Fan For Free-Standing
12.2 Direction of fan for free-standing NOTICE This refrigerator is for built-in. If you use for free-standing, please change the direction of the fan as follows. SB30F-N-L-A Air flow Fan’s label is outside. Fan’s label is inside. Air flow SB30F-N-R-A Fan’s label is outside. -
Page 21: Technical Data
13. Technical data MODEL SB30F-N-A SB30F-N-L-A SB30F-N-R-A Compressor unit Left side Right side location: 12/24V Input voltage: Rated current: :3.4A :1.7A Cooling capacity: +8° C to -8° C 30 L Gross volume: Climate class: T (+16° C〜+43° C ) Refrigerant: HFC-134a Cyclopentane... -
Page 22: Appendix
<APPENDIX> DOOR CASE(TRAY) COMPRESSOR DESIGNATION OF PARTS UNIT SB30F-N-A BLOWER THERMO CONTROLLER POWER SUPPLY CABINET DOOR DC INLET HANDLE SLIDE RAIL CORD SB30F-N-L-A SB30F-N-R-A BLOWER BLOWER 131.5 To customize the drawer front please use these measurements to cut your panel or sticker for best fit. - Page 23 REFRIGERATOR DIMENSIONS The figure below is reference dimensions. SB30F-N-A HEXAGON BOLT L PLATE 4-φ8.5 - 22 -...
- Page 24 SB30F-N-L-A SB30F-N-R-A - 23 -...
- Page 25 M E M O - 24 -...
- Page 26 <AGENT in AUSTRALIA and NEW ZEALAND> ENGEL DISTRIBUTION PTY LTD. P.O. Box155 25 SILICA ST CAROLE PARK QLD 4300, Australia : 1300 302 653 E-mail : admin@engelaustralia.com.au SAWAFUJI ELECTRIC CO.,LTD. 3, NITTAHAYAKAWA-CHO, OTA-CITY, GUNMA 370-0344, JAPAN TEL: +81(0)276-56-7139 FAX: +81(0)276-56-6075 (Cat.
-
Page 28: Service Agent
THIS ENGEL REFRIGERATOR WAS TESTED BEFORE DELIVERY. "Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure."...
