Summary of Contents for VonHaus 3500014

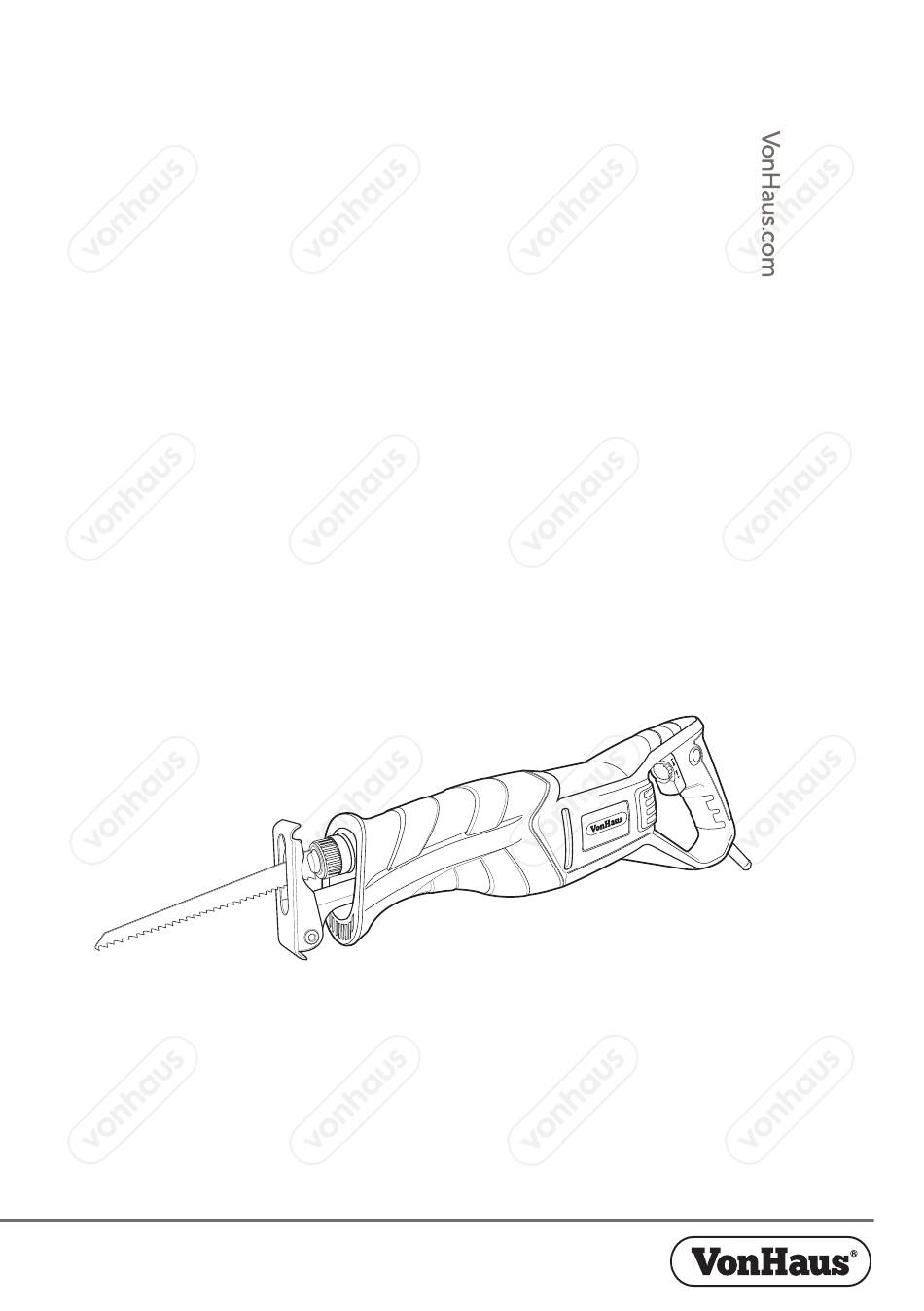

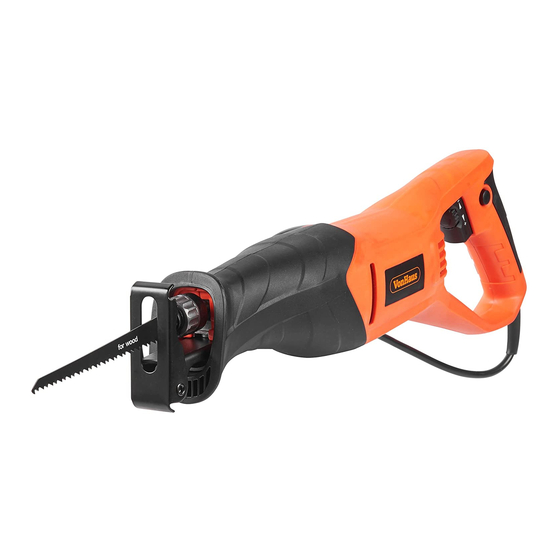

- Page 1 800W RECIPROCATING 3500014 - Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Safety Instructions Safety Instructions Safety Symbols Specification Fitting/Removing a Saw Blade/Adjusting the Shoe Plate Operation Making Cuts Maintenance/Troubleshooting Warranty... - Page 3 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE GENERAL SAFETY INFORMATION. WORK AREA SAFETY. WARNING! Read all safety warnings and all Keep your work area clean and well lit. Cluttered or instructions. Failure to follow the warnings and dark areas invite accidents.
- Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE IMPORTANT SAFETY INFORMATION FOR USE. reciprocating blade and blade clamp. Do not stabilize the tool by gripping the shoe. WARNING! Know your 9 Amp Reciprocating Saw. Do not plug the tool into the power source until you have When cutting pipe or conduit, make sure that they read and understand the information in this manual.
- Page 5 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE MAINTENANCE & STORAGE. Disconnect the plug from the power source and/ or the battery back from the power tool before making any adjustments, changing accessories or storing. Such preventative safety measures reduce the risk of starting the power tool accidentally.
-
Page 6: Safety Symbols
SAFETY SYMBOLS Please ensure you understand their meanings before operating this product in order to prevent personal injury and avoid damage to the tool. USE PRECAUTION INSTRUCTION EAR PROTECTION EYE PROTECTION For your safety MANUAL Must be worn Must be worn Read and understand ALWAYS DUST MASK... -
Page 7: Specification
SPECIFICATION NO LOAD FREQUENCY VOLTAGE SPEED min- 0 - 2800 230-240 1. Shoe Plate. 6. Variable Speed Dial. 2. Chuck Collar/ Blade Holder. 7. Hexagonal Shoe Adjustment Screws (x 2). 3. Barrel Grip. 8. Hex Key. 4. Lock-On Button. 9. Blade Saw for Metal (x1). 5. - Page 8 FITTING/REMOVING A SAW BLADE CAUTION: Always ensure that the tool is powered off and disconnected from the mains before performing any adjustments or maintenance. WARNING! Always wear protective gloves when handling blades. CAUTION Do not use worn or damaged saw blades as this can cause injury to the user and/or damage to the tool.
-
Page 9: Operation
OPERATION WARNING! Always make sure that you wear adequate safety equipment when using the tool. IMPORTANT Always wear eye protection while operating this power tool. WARNING Always ensure the work-piece has been safely secured into position with CAUTION Before attempting to cut any wooden the appropriate clamps before switching on, work-piece, first ensure that the material is free from and using the saw. -
Page 10: Making Cuts
MAKING CUTS PLUNGE CUTTING Squeeze the On/Off Trigger (5) fully for maximum speed, and allow the blade to come to full speed. WARNING! Plunge cutting is an advanced technique with a higher risk. Only more Slowly lower the blade until it makes contact with the competent and experienced users should work-piece and continue to cut slowly, until the blade use this method of cutting. - Page 11 MAINTENANCE CAUTION Ensure the 800W Reciprocating Saw is CAUTION Do not wash with water or use solvents disconnected from the mains power supply before or abrasives. Use only mild soap and a damp cloth to attempting any maintenance. clean the tool. Keep the tool’s ventilation slots clean and free from WARNING! Do not allow water or any obstructions.
-
Page 12: Warranty
DECLARATION OF CONFORMITY DOMU Brands Ltd 5th Floor The Tower Deva City Office Park Manchester M3 7BF Declare under our sole responsibility that the product: SKU: 3500014 Description: VonHaus 800W Reciprocating Saw. 2006/42/EC, 2014/30/EU, 2011/65/EU. - Page 13 USER NOTES...
- Page 14 Thank you for purchasing the 800W Reciprocating Saw. VonHaus is a registered trademark of DOMU Brands Ltd ® Made in China for DOMU Brands Ltd M24 2RW.
