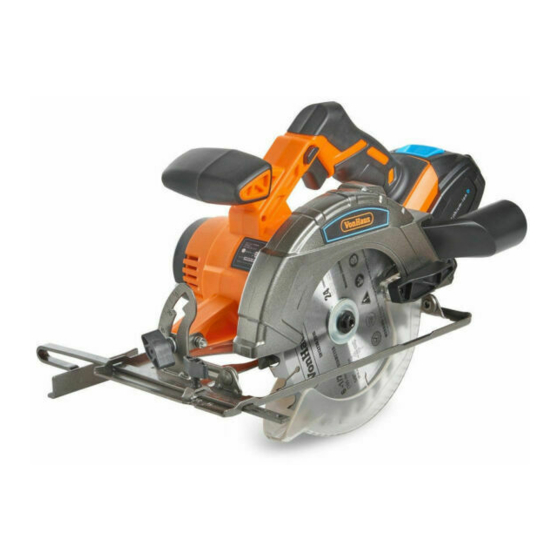

- Page 1 20V MAX CIRCULAR 3500008 - Instruction Manual CAUTION: Using this product with 1.5Ah Battery or 2.0Ah Battery can cause the Battery to overheat.
- Page 2 CONTENTS Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Instructions Safety Symbols Specification Battery Capacity Indicator, Charging Lights...
- Page 3 Battery Insertion/Removal, Angle Adjust Depth Adjustment, Powering Off Attaching/Replacing the Saw Blade, Care & Maintenance Using the Parallel Guide, Operation Attaching/Replacing the Saw Blade Care & Maintenance, Troubleshooting Warranty...
- Page 4 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE GENERAL SAFETY INFORMATION. equipment such as a dust mask, non- WARNING! Read all safety warnings skid safety shoes, hard hat, or hearing and all instructions. Failure to follow the protection used for appropriate warnings and instructions may result in conditions will reduce personal injuries.
- Page 5 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE Stay alert, watch what you are doing if proper precautions are taken. and use common sense when operating When blade is binding, or when a power tool. Do not use a power tool interrupting a cut for any reason, release while you are tired or under the influence the trigger and hold the saw motionless...
- Page 6 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE with the blade guard lever and make sure safety of the power tool is maintained. IMPORTANT PRODUCT CARE it moves freely and does not touch the blade or any other part, in all angles and INFORMATION.
- Page 7 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE DANGER! If the battery is cracked or ion battery below or above temperatures damaged in any way, do not insert it into recommended as this may result in fire or the charger.
- Page 8 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE instructions in this manual. WARNING! Never store or leave your Do not charge the battery in a place Lithium-ion battery in temperatures over where static electricity is generated, or that recommended as this may result in let the battery touch anything that is fire.
- Page 9 Deva City Office Park Manchester M3 7BF Declare under our sole responsibility that the product: SKU: 3500008 Description: VonHaus 20V Max Circular Saw To which this declaration relates is in conformity with the following directives: 2014/30/EU, 2014/35/EU, 2006/42/EC, 2011/65/EU, 2013/56/EC...
- Page 10 SPECIFICATION CHARGER BATTERY BLADE BATTERY CUT AT CUT AT OUTPUT TYPE SIZE 90° 45° Ømm 20 Max 2.4A Li-ion 165x16 1. Parallel Guide Locking Screw 2. Angle Adjustment Screw 3. Angle Adjustment Scale 4. Front Handle 5. Safety Switch 6. Power Trigger 7.
- Page 11 BATTERY CAPACITY INDICATOR When in use you can check the status of the 20V Max Battery (18) by pressing the Battery Level Indication Button (21). Pressing this will illuminate the 20V Max Battery’s level of charge. 0-10% Charged 10-25% Charged 25-50% Charged 50-75% Charged 100% Charged...
- Page 12 BATTERY INSERTION/REMOVAL WARNING! Before making any adjustments ensure the appliance is switched off or remove the 20V Max Battery (16). Hold the Circular Saw with one hand and the 20V Max Battery (16) with the other. To install, push and slide 20V Max Battery into the battery port, make sure the Battery Release Button (19) of the 20V Max Battery snaps into place and is secure before beginning operation.
- Page 13 DEPTH ADJUSTMENT WARNING! Always make sure that the Battery is removed from the Circular Saw before making adjustments or performing maintenance to the tool. To achieve the required depth of cut, loosen the Depth Adjustment Screw (12) and slide the to the desired depth using the Depth Adjustment Scale (13) as a guide.
- Page 14 USING THE PARALLEL GUIDE WARNING! Always make sure that the Battery is removed from the Circular Saw before making adjustments or performing maintenance to the tool. The Parallel Guide (15) is used when carrying out a straight cut is required. Tighten Loosen the Parallel Guide Locking Screw (1) , then slide the Parallel Guide through the two slots located...
- Page 15 ATTACHING/REPLACING THE SAW BLADE WARNING! Always make sure that the Battery is removed from the Circular Saw before making adjustments or performing maintenance to the tool. CAUTION: Always wear protective gloves when IMPORTANT: Ensure the teeth and arrow printed on handling sharp blades.
- Page 16 CARE AND MAINTENANCE WARNING! Always make sure that the Battery is removed from the Circular Saw before making adjustments or performing maintenance to the tool. To clean the Circular Saw effectively, it is CAUTION: Never use any caustic agents - such as recommended to use compressed air.
- Page 17 WARRANTY To register your product and find out if you qualify for a free extended warranty please go to www.Vonhaus.com/warranty. Please retain a proof of purchase receipt or statement as proof of the purchase date. The warranty only applies if the product is used solely in the manner indicated in the Warnings page of this manual, and all other instructions have been followed accurately.
- Page 18 Thank you for purchasing the 20V Max Circular Saw VonHaus is a registered trademark of DOMU Brands Ltd ® Made in China for DOMU Brands Ltd M24 2RW...
