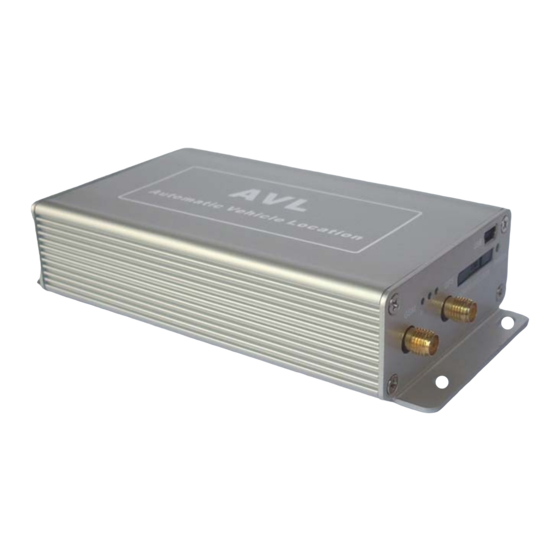

AVL AVL05 User Manual

Automatic vehicle location avl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AVL05 User Guide
V3.32
AVL05 User Guide
Automatic Vehicle Location
Page 1 of 41

Advertisement

Table of Contents
loading

Related Manuals for AVL AVL05

Summary of Contents for AVL AVL05

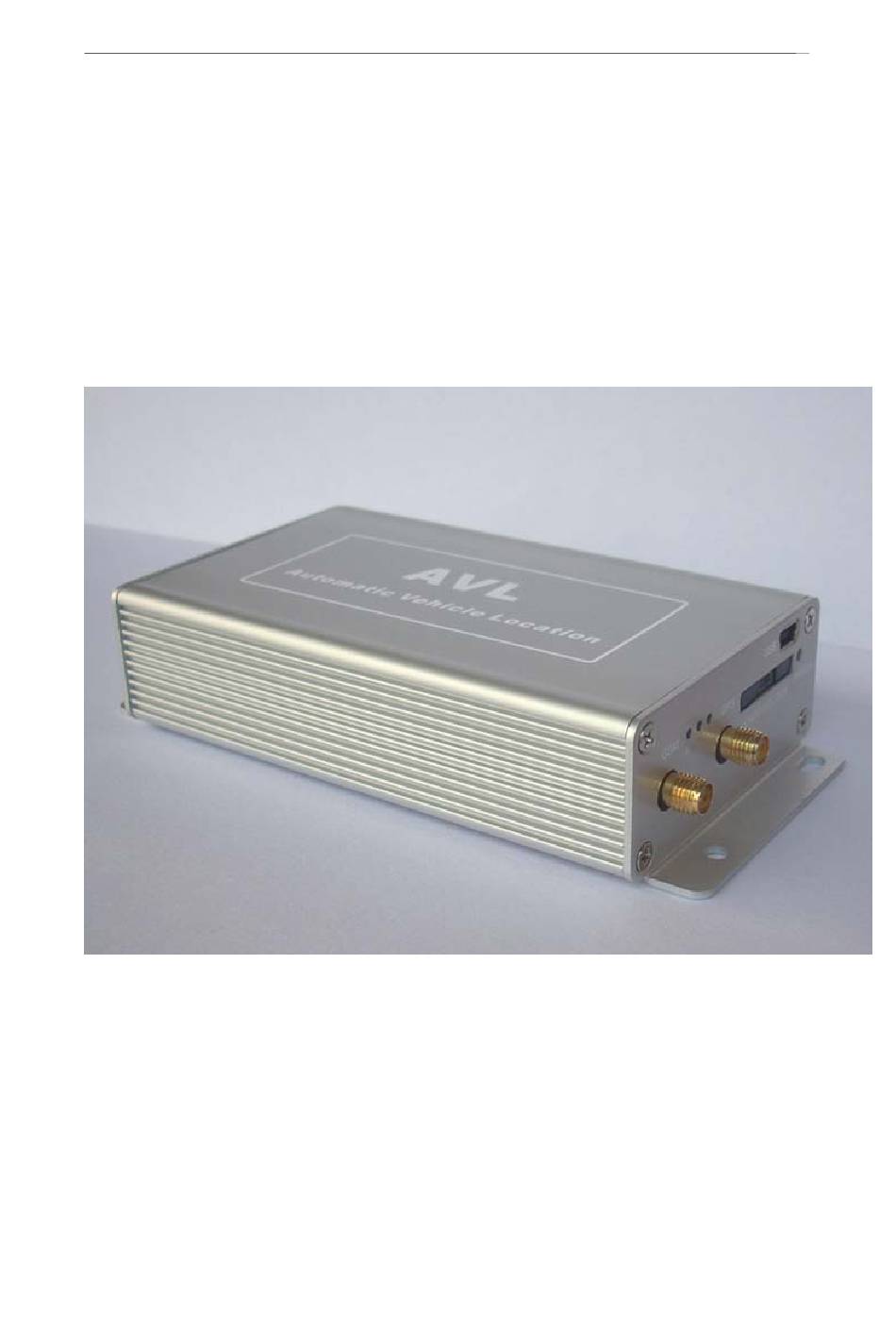

  • Page 1 AVL05 User Guide V3.32 AVL05 User Guide Automatic Vehicle Location Page 1 of 41...

  • Page 2: Welcome To Use This Car Product

    AVL is a device that uses the Global Positioning System to determine the precise location of a vehicle, moving house, trailer or other asset which AVL is installed on and to record the position of the AVL at regular intervals. With Sirf Star III GPS systems, it records not only position, but also velocity, Date time, direction, status of digital output ports, etc.
  • Page 3 AVL05 User Guide V3.32 In order to acquire more important details, you should pay much attention to some signs and supplementary information, such as: 【note】 : Means you must pay much attention, it includes many important details which you may overlook.

  • Page 4: Table Of Contents

    2.6 Listen-In function (optional)................24 III. Attachment ......................... 25 3.1 SMS instruction list.................... 25 3.2 Update the firmware of the AVL ................. 30 3.2.1 IAP Update User Guide ................30 3.3 Worldwide APN (Access Point Name) List ............37...

  • Page 5: Introduction

    Thank you for using the car product, which is mainly for tracking the vehicle, anti-thief, and remotely monitoring the car through I/O ports socket of AVL, etc. All of this function can be realize by using a mobile phone, or see the status of your car in a Server via GPRS.

  • Page 6: Key Feature

    V3.32 1.1.1 Key Feature In the Basic Version, by using the AVL, user can track the vehicle via SMS or GPRS and monitor the status of the door, window, and engine of the car through I/O sockets. The more detailed function as below:...

  • Page 7: Accessories

    AVL05 User Guide V3.32 1.2 Accessories Thank you for your purchase of the AVL, after you get it, please checking all the accessories in the box: Accessories GSM Antenna GPS Antenna Cables User Manual CD Below is Optional: Configure Cable (Optional)

  • Page 8: Outside Feature

    AVL05 User Guide V3.32 Position accuracy 10 --15 meters GSM chip Simcom, support 4 frequency GSM 850/ 900/1800 /1900MHZ GPS chip Sirf-Star III (super-sensitivity and high accuracy ) Tremble Intensity 3 LEDs indicates GSM, GPS signal, and trembling status Button(not in the basic...
  • Page 9 AVL05 User Guide V3.32 Hardware Function A. Switch Open/Close the unit B. I/O Sockets Expanding function, as below C. GSM Antenna socket Connect Exterior GSM Antenna D. GPS Antenna socket Connect Exterior GPS Antenna E. SIM Card Holder Hold a SIM card F.

  • Page 10: I/O Ports

    AVL05 User Guide V3.32 1.4.2 I/O ports 2)GND 8)Cut Car 20)V+ Current (12V-24V) 1)SOS 3)Button 5)Digital 7)Digital 9) Switch 11) Switch 13)Digital 15)Digital (17) (19) Button Output A Output B Input 1 Input 2 input1 input2 Reset (12V) (12V) (12V)
  • Page 11 AVL05 User Guide V3.32 I/O 11 When this cable is connected to GND(port 02), Device will send a GPRS alarm data to Server. And when connect is lose , Device also will send a GPRS alarm data to server. I/O 13 The function is similar as I/O 09, but the triggered voltage must be high, alarm type is “54”, “55”, through it , user can monitor...

  • Page 12: Connect Relay To Control The Car Oil/Power. ( Port 8)

    AVL05 User Guide V3.32 1.4.3 Connect Relay to control the Car Oil/Power. ( port Page 12 of 41...

  • Page 13: Get Started, Please Follow Me

    SMS storage of the card. ♣ Step2: Connect GSM Antenna and GPS Antenna to AVL unit. (1) Fasten the connection by turning the metal end of the antenna, until the connection is very firm.
  • Page 14 AVL05 User Guide V3.32 Picture 1 Picture 2 (GPS Antenna) Page 14 of 41...
  • Page 15 ● GSM is the abbreviation of Global System for Mobile Communication. At first, you should insert a phone (SIM)card into the AVL, In virtue of GSM system, AVL and your mobile phone in hand can communicate with each other.
  • Page 16 10 to 15 meters. ♣ Step 3: Fix the AVL in your car and connect the AVL to the power of your car. (1) Connect the wires to the I/O socket, please make sure the wires has inserted to the I/O socket firmly.

  • Page 17: Send Instructions And Track A Vehicle

    No GPS signal periodically) When AVL is in work mode, if GSM signal is in good state, the green led will flash, similarly, if GPS signal is in good state, the blue led will flash, if the green led is not flashing, that indicates the GSM signal is not good, if the blue led is not flashing, then you should check if there is something upon the GPS antenna top.
  • Page 18 (X), report times(Y). That is to say, you can receive position report at X mins interval, and report Y times before it stops. SMS Format: *+Password+, +002+,X,+Y # For example: *000000,002,2,30# If the AVL received it successfully, it will send one SMS back to check it, Page 18 of 41...

  • Page 19: View Avl Trace On Pc

    It can be one of 0～999,X=0 means stop tracking; Y can be one of 0～999,Y=0 means it will not stop tracking(until another stop instruction) 2.3 View AVL trace on PC 2.3.1 Input position data to map software 1. Launch Internet Explorer on your computer. Other browsers may Also work, but Internet Explorer is recommended.

  • Page 20: Gprs Setting Step By Step

    AVL to check it. 【note】:Please note that, in the bellow steps, $$$$$$ is user password. Step1: Make sure that your SIM card in the AVL has GPRS function. ● Step2: Set APN ● Every country has its APN, please refer to the attachment.
  • Page 21 AVL05 User Guide V3.32 By sending the SMS command, you can connect your AVL to Server by gprs. SMS format: *$$$$$$,015,IP,PORT# example:*000000,015,72.167.29.18,3303# 72.167.29.18 is our company’s Server IP, and user also can link the AVL unit to his server, the IP and Port must be correct, then the unit can send out data to the Server via GPRS network.

  • Page 22: Common Questions And Solution

    While you are operate your AVL, if you detect any question, please check if the following paragraph can help you. Q: You sent one SMS to the AVL, then if you receive one SMS, reading "Set error.."in a few mins. What happened?
  • Page 23 AVL must be in "sleep mode", please note (2). (2) If you find the there leds are dark at the same time, the AVL is in "sleep mode", you must wake it up, or you can turn off the "sleep mode"...

  • Page 24: Listen-In Function (Optional)

    AVL05 User Guide V3.32 2.6 Listen-In function (optional) need listen-in function, please send *000000,008,0010000# to device, so that you can use the cell phone call in and device will auto into the listen in mode. want disable listen-in function, please send *000000,008,1000000# to device.

  • Page 25: Attachment

    AVL05 User Guide V3.32 III. Attachment 3.1 SMS instruction list. If you want to know more about the AVL, and design your special AVL, you can refer to the SMS instruction list. $$$$$$ is user`s password , and initial password is...
  • Page 26 Alarm (the most voltage is 4.2 V) Set over speed alarm *$$$$$$,005,X,Y# X (The speed preset value) When the AVL speed higher = [10<XXX<250] than the preset value, AVL unit is km/h will send one over speed When X <10, it Disable alarm GPRS data to the this function.
  • Page 27 AVL05 User Guide V3.32 = [1,999] After send YYY times stop. Enable/Disable GPRS *$$$$$$,016,X# X=0 Disable GPRS function unction X=1 Enable GPRS Function This is the last step of GPRS setting. Tremble sensor switch *$$$$$$,021,XY# X = 0 Disable Sleep...
  • Page 28 *888888,999,666# Send this command to AVL. It will reset the password to 000000. Reboot by SMS command *$$$$$$,009# It will reboot the AVL by this SMS command. Device will not get reply at this command Extend setting *$$$$$$,008,ABCDEFG# A=0, Disable position...
  • Page 29 V3.32 position SMS by Calling B=0, Send the SMS in Text format. B=1, Send the SMS in NMEA format. C=0, AVL do NOT hung up when one call incoming C=1, AVL hung up after 4~5 rings when call incoming Page 29 of 41...

  • Page 30: Update The Firmware Of The Avl

    3.2.1 IAP Update User Guide 1）Install RS232 cable driver A. At the first, Install the Driver for “USB Converter” B. Connect the AVL unit to PC through RS232 cable, View the com port that the cable used Page 30 of 41...
  • Page 31 AVL05 User Guide V3.32 2）Turn on AVL device 3）Build a New Hyper terminal connect, fill the name, example as IAP_DL Page 31 of 41...
  • Page 32 AVL05 User Guide V3.32 4）Choose the Com Port that the RS232 Cable used Choose all the option same as picture show below (All setting must the same as the picture) Different setting from old version hardware Page 32 of 41...
  • Page 33 AVL05 User Guide V3.32 If your device which bought before 2009-3-15. Please make the option like below: 5）Into Configure Mode Page 33 of 41...
  • Page 34 AVL05 User Guide V3.32 6）Turn Off AVL device 7）Press the SOS button and Turn on Power at the same time，Device all indicator will keep light at same time，Hyper terminal will display the interface like the picture follow(Come into IAP_V7 Come into IAP, and then display CCCCC).
  • Page 35 AVL05 User Guide V3.32 Choose the firmware that you want to Update； Protocol Choose: Xmodem Press Send button, Will display a New Windows that show the update process. Page 35 of 41...
  • Page 36 AVL05 User Guide V3.32 When finish Update, Tracker will reboot automatically, GSM/GPS/Sensors light will blink quickly. After about 3-5 mins, this interface will shut by itself. When the update is pressing, all indicator will off for 10 seconds, doesn’t turn off power of AVL03, otherwise will cause MCU broken.

  • Page 37: Worldwide Apn (Access Point Name) List

    AVL05 User Guide V3.32 3.3 Worldwide APN (Access Point Name) List Page 37 of 41...
  • Page 38 AVL05 User Guide V3.32 Page 38 of 41...
  • Page 39 AVL05 User Guide V3.32 Page 39 of 41...
  • Page 40 AVL05 User Guide V3.32 Page 40 of 41...
  • Page 41 AVL05 User Guide V3.32 Page 41 of 41...
