AVL VT300 Manual

GPS Tracker AVL VT300
UK manual

Insert the SIM card:

SIM card may not have PIN code active. Can be examined in a normal mobile
phone. And changed if necessary.
Open the box by removing the 4 screws.
Slide the metal bracket down and push up the SIM card holder. (Picture). And paste
/ replace the SIM card. Remember to push the metal bracket up again when the
holder is down. The angled side is marked on the PCB.

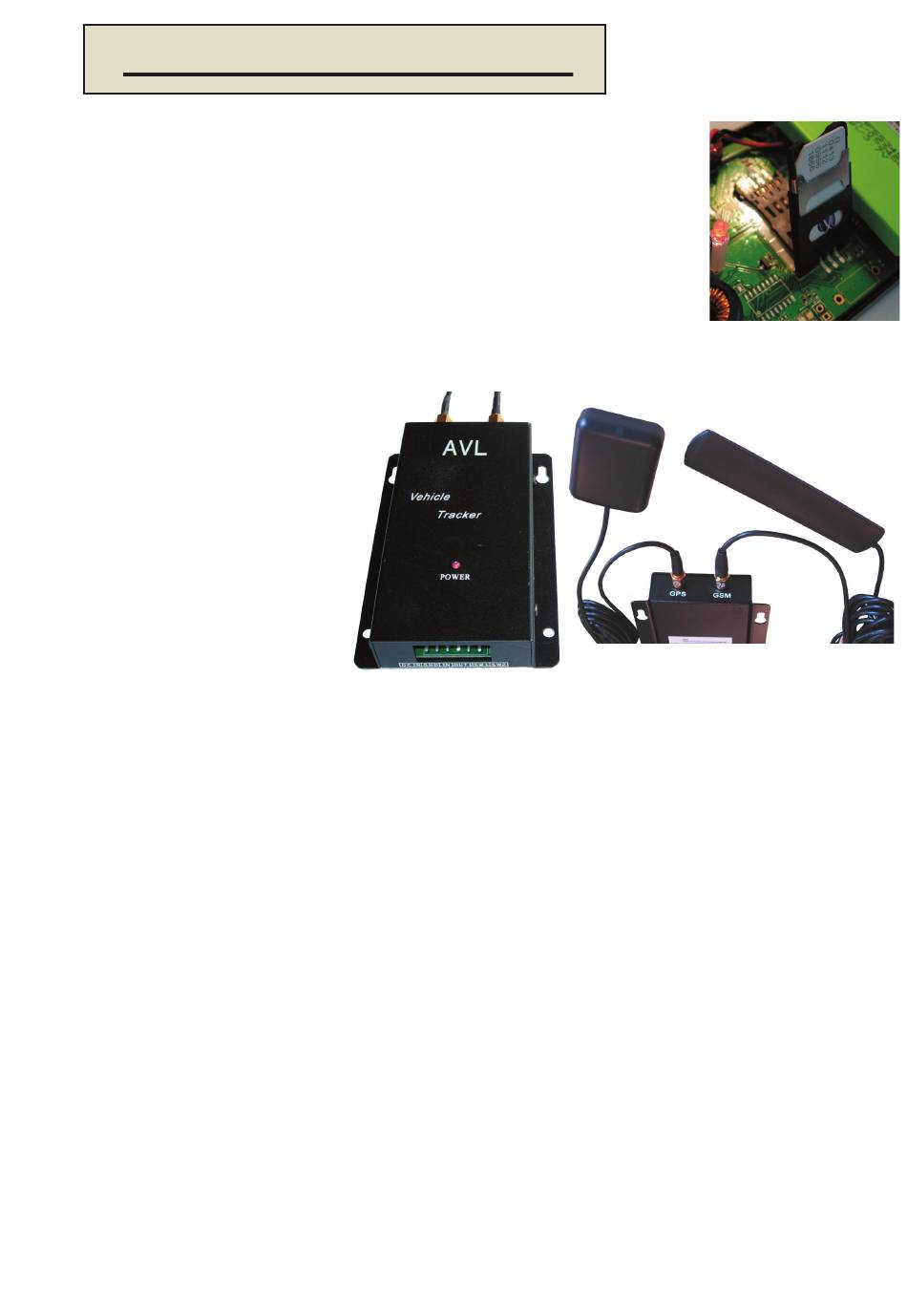

GPS Satellite ant.
Mounting:
(When SIM card is mount)
Red wire to + 12VDC (9-36 VDC)
GSM Mobilephone-
Black wire to ground. Minus battery.
antenna.
The tracker is not waterproof, so it must
be installed in a dry place.
The long antenna GSM, installed in
GSM antenna connector on VT300, and
placed where there is room. (Not criti-
cal)
The square GPS antenna mounted in
GPS antenna connector on VT300. Put
the antenna outside (Best) or under
bonnet / boot lid. It is magnetic. (If the
location fails, set it outside) Important
that correct antenna, are installed in the
correct slot. Write your tracker phone number here: ___________________
The transparent plastic bag:
VT300 be in the engine compartment, it is possible for extra protection for water and dirt, the use of the bag.
The long strips are to buckle VT300 stuck with. The tracker is not waterproof.
The Red Lamp:
Constant light: When you first connect an external voltage or when the battery is charging, it will remain lit
until the battery is charged.
Blinking at 1 sec. ON and 2 sec. OFF when the internal battery is charged and VT300 is turned on properly.
Lights weak when tracker is turned off, but added + DC Volt to VT300.
Flashing fast 0.1 sec / 0.1 sec when the backup battery voltage is low. (Keep app. 6 hours after power loss)
Into service:
Since the SIM card (phone card) is inserted, it is simply sending an SMS to the phone number listed on your
calling card. Send text: W000000,100 (W 6 zeros point one zero zero) Be very aware that some smartphones
insert space after the comma or change a comma to a sentence.
When the tracker VT300 responds back, open the file, the supplied link, and VT300 position is displayed.
(The first time it may take 10 minutes before it accurate, current address shown.)
