PNI SafeHouse HS130 Manual

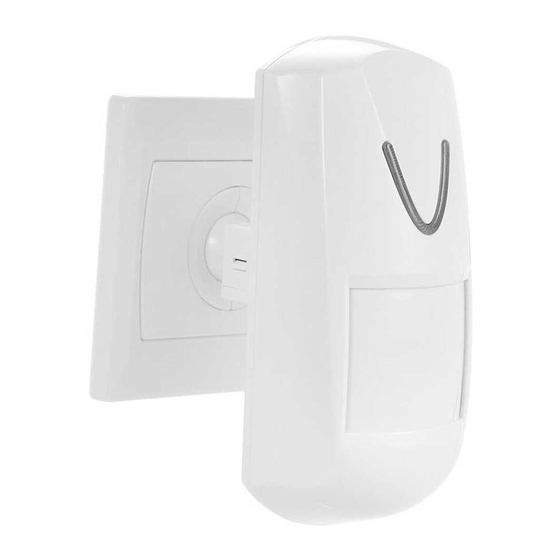

Wired PIR sensor PNI SafeHouse HS130 compatible with alarm systems
This product PNI SafeHouse HS130 wired sensor is a wide angle passive infrared detector, exquisite
design, easy installation,that can be installed on ceiling or wall. Fitted for locations like: balcony, window, door,
corridors, living etc. Equiped with high-end infrared sensor, SMT chip technology, anti-EMI & anti-RFI design,
temperature compensation, and LED switch etc. The product has selectable functions and can be integrated
with wired alarm host in domestic and abroad applications.

Function Features

1. MCU Technology to prevent all kinds of false alarms
2. Anti-RFI & anti-EMI
3. Automatic temperature compensation technology,
Adjustable pulse count
4. Anti-tamper alarm function to enhance anti-damage

1. SPECIFICATIONS

Power Supply: DC 9-12V
Working Current: <18uA
Sensor: Dual element pyroelectric infrared sensor
Detection distance: ≤12 m
Alarm output: NO/NC (500mA 100VDC)

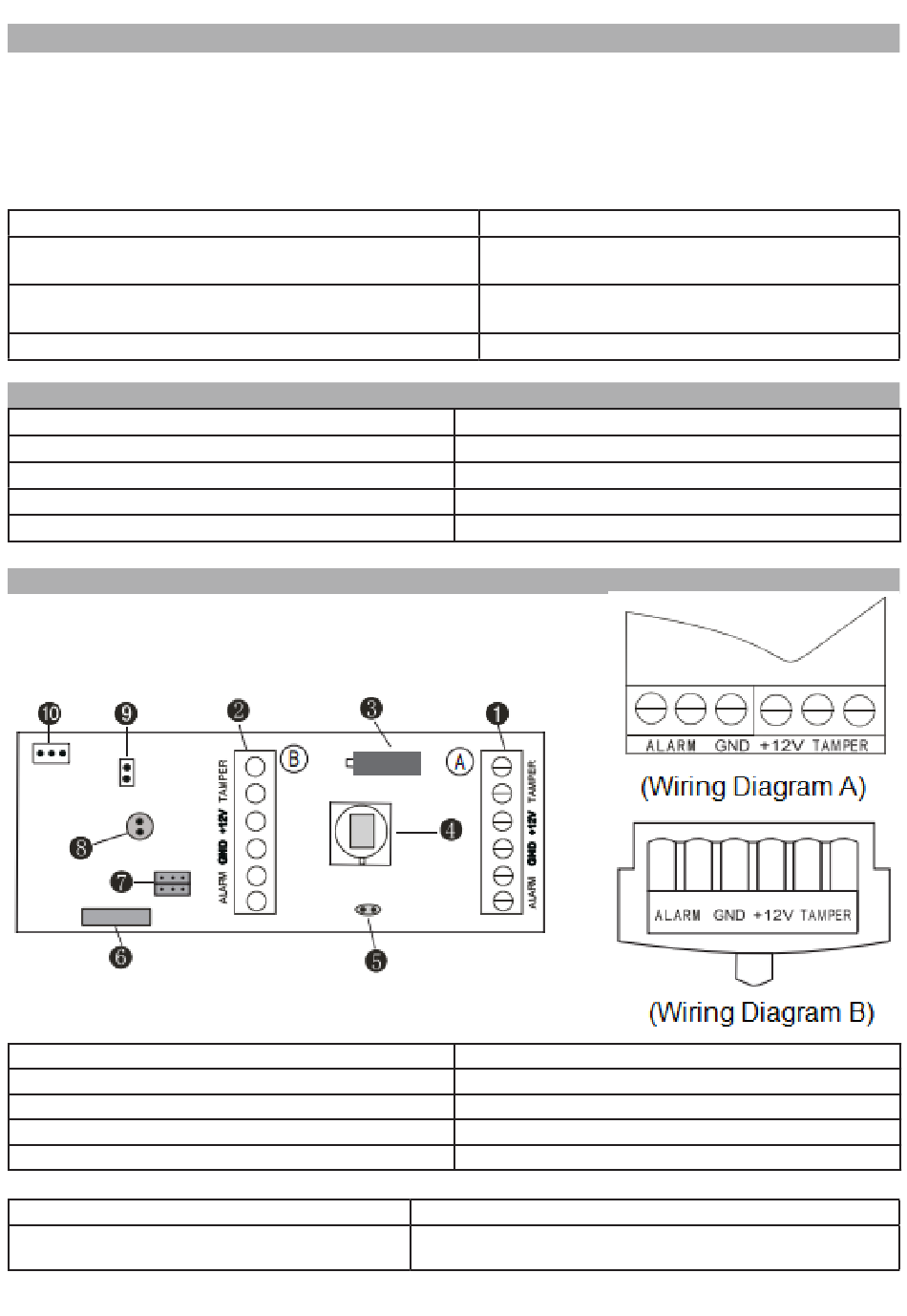

2. DESCRIPTION AND INSTALLATION

1. Wiring Terminal
2. Wire holder
3. Anti-tamper switch
4. PIR sensor
5. Temperature sensor

Installation method

A. Wiring Terminal (diagram)
1. open the front cover of detector and take out the
PCB
5. LED ON/OFF optional, better concealment
6. The power connector with polarity protection
function
7. Walling amounting.
8. Alarm output: NO/NC
Tamper output: NC(50mA 30VDC)
LED indicator light: Yes
Working temperature: -10
Size: 134mm*60mm*45mm
Installation type: wall , ceiling
6. Relay
7. Pulse adjustment
8. LED indicator light
9. LED indicator light Switch
10. Pulse Modulation
B. Wire holder (diagram)
1. Introduce the wire to the bracket of the sensor and connect
the terminals.
C ~ + 50 C
o o
