Lindsay Broadband LA35R Series Installation Manual

LA35Rx Series 1 GHz Compact MDU Amplifiers
Installation Manual
PRODUCT OVERVIEW
Part # Power Socket Type
LA35R 42/54 x
x = 10-36 VDC
LA35R 65/85 x
LA35R 42/54 x
x = 90-240 VAC
LA35R 65/85 x
Lindsay Broadband's LA35Rx compact, multiple-dwelling unit (MDU) broadband distribution amplifier is a full-featured, 2-way, 1 GHz indoor station wth superior
distortion characteristics and low noise.
It is a tough, indoor MDU amplifier specifically designed for broadband distribution systems in apartment buildings, hotels, schools, hospitals and other similar facilities
requiring RF amplification where high quality, low noise figure amplifiers are necessary in both forward and return paths.
Compact in size and designed to mount directly to a wall with increased heat dissipation and low power consumption, this amplifier runs cool and reduces operational
costs. GaAs E-pHEMT push-pull technology provides superior distortion performance and low noise to 1 GHz in both the forward and return paths. It has flat
operational gain of 35 dB in the forward path and 18 dB in the return path. This amplifier also has an input variable EQ and plug-in mid-stage equalization feature in the
forward bandwidth for balancing, a forward 20 dB input gain control, and 20 dB input and output reverse gain controls.
FEATURES
• Compact, aluminum diecast, wall-mountable housing
• Designed for superior heat dissipation
• GaAs E-pHEMT push-pull design for high output, low distortions & very high efficiency
• Active reverse bandwidth 5-42/5-65 MHz
• Forward gain 35 dB; reverse gain 18 dB
• JXP plug-in style mid-stage EQs (available 0-20 dB in 2 dB steps)
CAUTION
Risk of electric shock. Do not open.
No serviceable parts inside. Refer servicing to qualified service personnel.
WARNING: To prevent shock hazard, do not expose this unit to rain or moisture. This apparatus shall not be exposed to dripping or splashing
water and no objects filled with liquids, such as vases, shall be placed on the apparatus.
WARNING: This product is a Class-I construction. Please ensure a connection to power source includes a protective earthing connection.

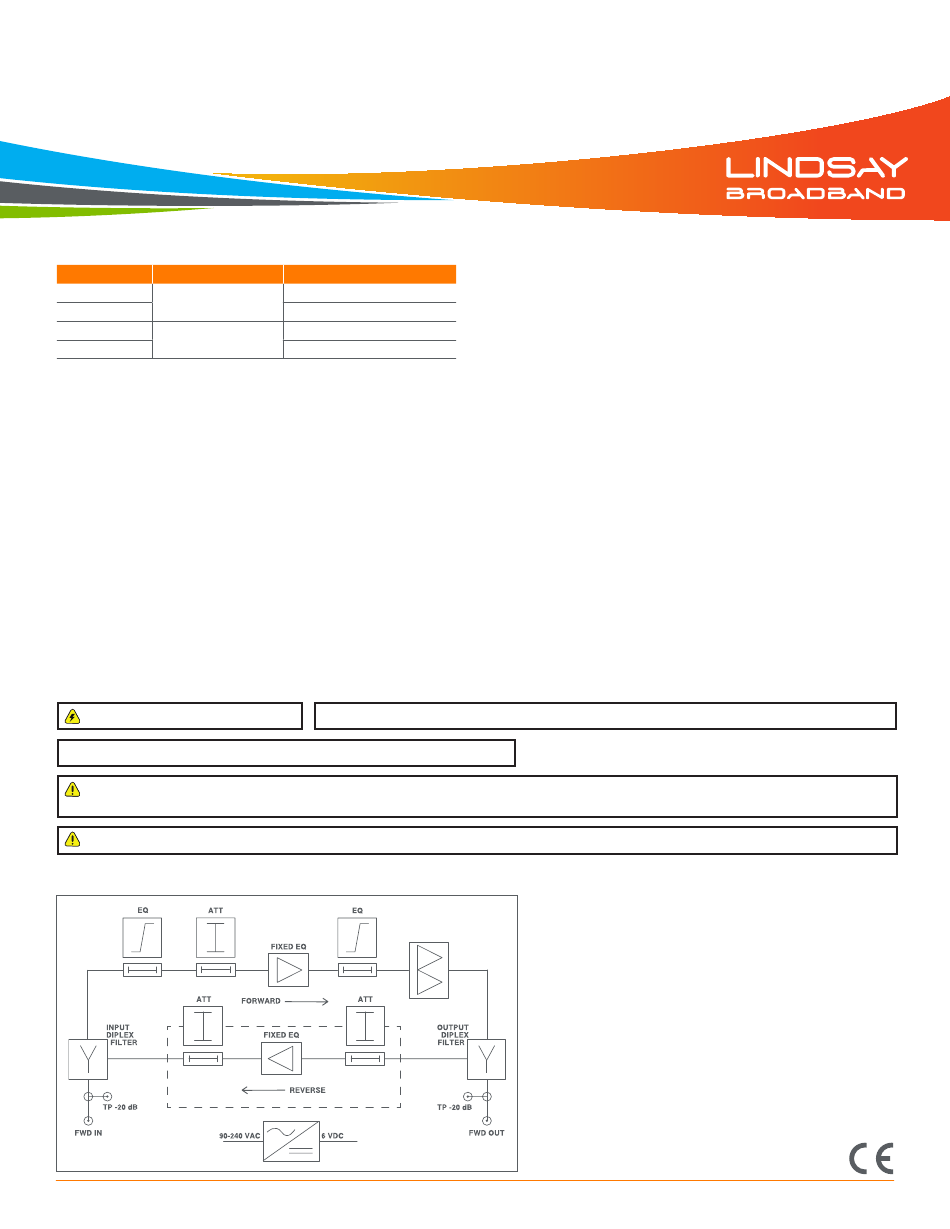

FUNCTIONAL SCHEMATIC
Frequency Range
5-42 MHz / 54-1000 MHz
5-65 MHz / 85-1000 MHz
5-42 MHz / 54-1000 MHz
5-65 MHz / 85-1000 MHz
Remember to replace cover after adjusting. Cover must be in place for CE, safety and protection.
• Rated ingress protection IP54, against dust & water
• Operating Temperature: -30°C to +55°C (-22°F to +131°F)
• Maximum RFI shielding
• SCTE compliant F-type connectors
• -20 dB, bi-directional, external test points
• 6 kV surge protection on all ports
• 90-240 VAC universal powering
