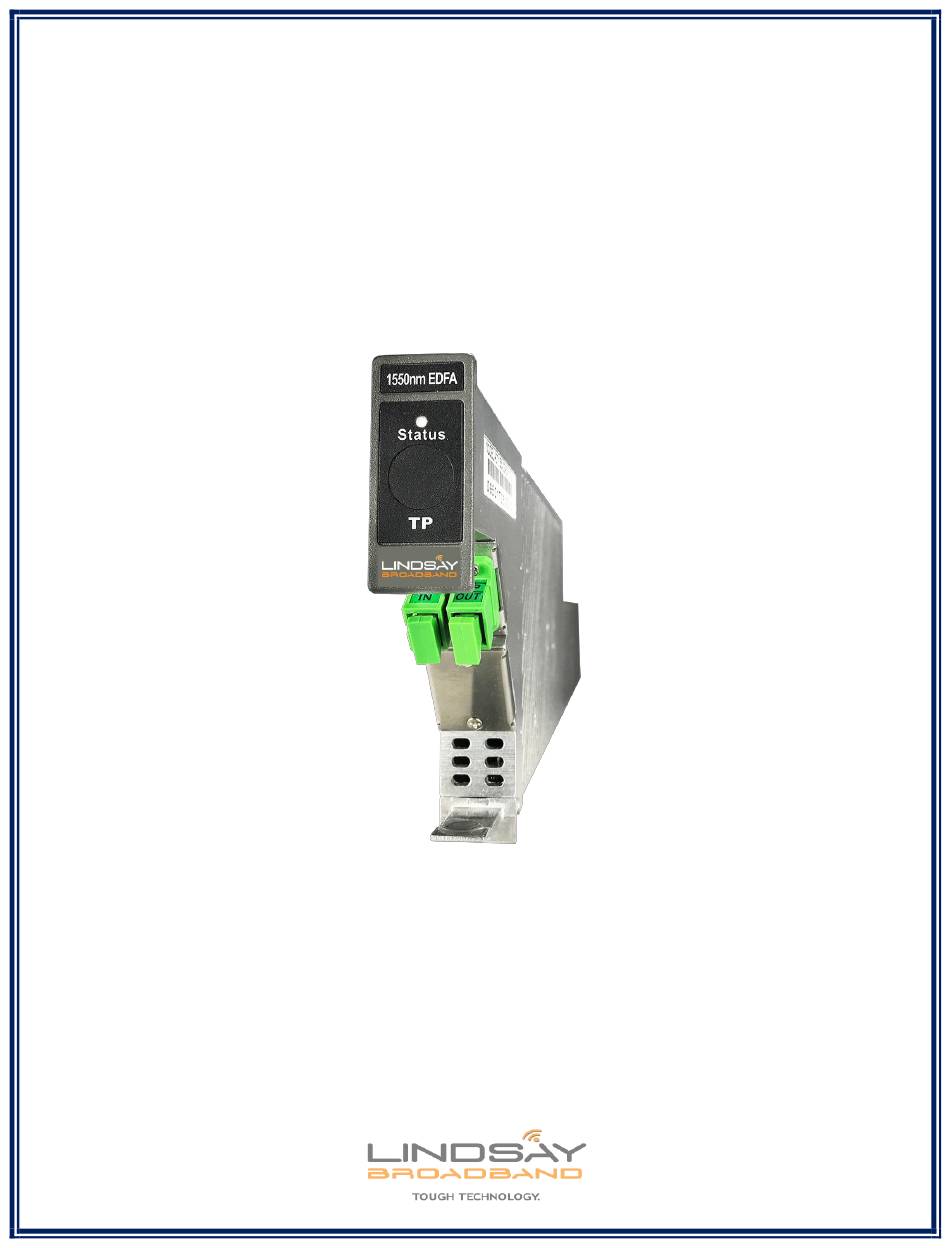

- Page 1 LB-1000-EDFA Headend Platform Optical Amplifier User Manual Aug 01 2019...
-
Page 2: Table Of Contents
LB-1000-EDFA User Manual TABLE OF CONTENTS TABLE OF CONTENTS ........................ ii PRODUCT OVERVIEW AND FEATURES ............... 1 Description ........................1 Features .......................... 1 Specifications ......................... 2 Block diagram of the LB-1000-EDFA ................. 3 SAFETY NOTES ......................... 4 APPLICATION MODULE DESCRIPTION ............... 5 INSTALLATION ......................... -
Page 3: Product Overview And Features
PRODUCT OVERVIEW AND FEATURES Description Lindsay Broadband LB-1000-EDFA series is a family of high-performance Erbium Doped Fiber Amplifier modules designed as an integral part of the high density LB-1000 Headend system. High quality 980nm and 1480nm Pump Laser, high amplification gain with low noise figure, and a wide range of optical output powers (15dBm to 23dBm), this EDFA module is an ideal solution for both analog and digital signal transmission. -
Page 4: Specifications
LB-1000-EDFA User Manual Specifications PARAMETER SPECIFICATION UNIT NOTE Optical Performance Wavelength 1535 to 1565 Optical Output Power 15 to 23 Optical Input Power -6 to +10 Optical Return Loss > 45 Connector SC/APC Output Optical Power Stability ± 0.25 Input Optical Power 0dBm Noise Figure ≤... -
Page 5: Block Diagram Of The Lb-1000-Edfa
LB-1000-EDFA User Manual Block diagram of the LB-1000-EDFA Figure 1: Block diagram of the LB-1000-EDFA Optical Amplifier 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e... -
Page 6: Safety Notes
Failure to comply with these safety precautions and with the general or specific safety precautions described elsewhere in the LB-1000 series manual violates the safety standards of the design, manufacture, and intended use of the device. Lindsay Broadband Inc. assumes no liability for the customer’s failure to comply with these precautions. -
Page 7: Application Module Description
LB-1000-EDFA User Manual APPLICATION MODULE DESCRIPTION Figure 2: LB-1000-EDFA Front and Rear Panel Front Panel 1. Status LED will be green when the EDFA module is operating normally and will be red when there is an alarm. 2. Handle to draw the application module in/out. 3. -
Page 8: Installation
LB-1000-EDFA User Manual INSTALLATION Application modules of LB-1000 can be installed in any of the general slots of the rack. Module is inserted into the rack from the front part. 1) Gently insert the LB-1000 application module into any general slot (labelled 01 to 18) from the front of the chassis. - Page 9 LB-1000-EDFA User Manual on the fiber cable and connector with a fiber inspecting microscope. Ensure the fiber optic connectors and jumper cables are clean. 6) Ensure optical jumper connectors are matched properly to the device adapters. (i.e. SC/APC to SC/APC). Using mismatched connectors will damage the connectors and degrade system performance.
-
Page 10: Lb-1000-Edfa Settings
LB-1000-EDFA User Manual LB-1000-EDFA SETTINGS Once the LB-1000-EDFA module is successfully connected, powered up and operating normally, you will be able to see the corresponding slot populated with the module on the screen and on the web interface of the LB-1000-CM system management module. LB-1000-EDFA settings: Using touch screen On the home screen of the LB-1000-CM touch screen, tap/touch the corresponding application module slot (01-18) where the LB-1000-EDFA is plugged in. - Page 11 LB-1000-EDFA User Manual mode. APC mode is the preferred mode of operation. Laser Optical Power Displays the power of the pump laser Laser Bias Current Shows the laser bias current (mA) of the module Laser Temperature Shows the laser temperature (°C) Laser TI Shows the pump laser TEC current (mA) of the module Laser IB...
-
Page 12: Lb-1000-Edfa Settings: Using Web Interface
LB-1000-EDFA User Manual Figure 6: LB-1000-EDFA settings - Page 3 LB-1000-EDFA settings: Using Web interface Refer to LB-1000-CM manual. Connect your computer to the LB-1000-CM using the RJ-45 LAN port. Login to the LB-1000-CM Web interface. On the home screen of the LB-1000-CM Web interface, click the corresponding application module slot (#1 - #18) where the LB-1000-EDFA is plugged in. - Page 13 LB-1000-EDFA User Manual Figure 7: LB-1000-EDFA Web Interface 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...
-
Page 14: Warranty And Rma Policy
LB-1000-EDFA User Manual WARRANTY AND RMA POLICY 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e... - Page 15 Without an RMA Number will be Returned to Sender RMA number must be used when returning product for credit or repair. Use of RMA numbers will ensure efficient processing. When returning product to Lindsay Broadband, please follow the simple steps below (in the order that they appear): RETURNS Fill out the Product Return Authorization Form indicating product information.
- Page 16 LB-1000-EDFA User Manual Lindsay Broadband Return Material Authorization (RMA) Form Service Repair Policy Lindsay Broadband product may be Company Contact Name: returned for repair under the following Address: City: condition: Please contact Lindsay Broadband Prov/State: Postal Code/Zip: Service Dept. to obtain an RMA#.
