MODELS -
CONTENTS:
I.
OVERVIEW FOR AMP-HOUR BASED METERS: P 2
II.
MODEL 290-AHP3 MENU OPERATION: P 3
A.
AH TOTAL SCREEN
B.
RESETTABLE SCREEN
C.
PRIME PUMP SCREEN
1.
D.
PRESET1,2 SCREEN
E.
PRESET1,2 CNT LEFT SCREEN
F.
TIMER1,2 SCREEN
G.
TIMER1,2 CNT LEFT SCREEN: P 4
H.
CYCLE COUNT 1,2 SCREEN
I.
SETUP SCREEN
1.
2.
3.
APPENDIX:
A. CALCULATING THE PRESET AND TIMER VALUES: P 5-6
B. PUMP SETTING WORKSHEET: P 6
C. INSTALLATION / MAINTENANCE / PARTS LIST: P 7-10
D. TROUBLE SHOOTING: P 11
E. WARRANTY & TERMS OF SALE: P 12
CHECK FOR FREE MANUAL UPDATES AT
JP Tech, Inc. Box 863 2286A Church Street, Unit C East Troy WI 53120
290-AH1
290-AHP3
PRIME FUNCTION SCREEN
SHUNT SIZE SCREEN
RELAY1 SCREEN
RELAY2 SCREEN
Phone (262) 642-7671 Fax (262) 642-7681

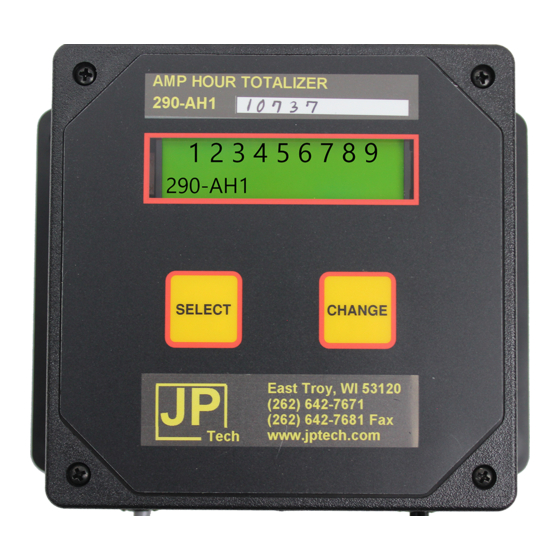

AMP HOUR TOTALIZER
AMP HOUR CONTROLLER
WITH PRIME FUNCTION FOR
PERISTALTIC PUMP(S)
www.jptech.com
REV. 01/27/12
1
Advertisement
Related Manuals for JP Tech 290-AH1
Summary of Contents for JP Tech 290-AH1
- Page 1 D. TROUBLE SHOOTING: P 11 E. WARRANTY & TERMS OF SALE: P 12 REV. 01/27/12 CHECK FOR FREE MANUAL UPDATES AT www.jptech.com JP Tech, Inc. Box 863 2286A Church Street, Unit C East Troy WI 53120 Phone (262) 642-7671 Fax (262) 642-7681...
- Page 2 OVERVIEW FOR AMP-HOUR BASED METERS JP Tech’s Ampere-Hour meters incorporate several screen options in the Menu designed for ease of operation, information gathering, and programming. All models incorporate displays showing accumulated Ampere-Hours or Ampere-Minutes (for Amp Hour meters). A resettable Ampere-Hour/Ampere-Minute display is included. In addition, there is a “Shunt”...
- Page 3 MODEL 290-AHP3 MENU OPERATION This model incorporates everything the Model AH-1 (AH Total and AH Total Re-Settable Screens) has plus it can support 2 pumps with associated Presets and Timers or one (1) pump and one (1) rectifier or two (2) rectifiers. All internal output relays are fused. Also, the status of the pump(s) will be indicated in each of the main display screens by either a LmV (Low Millivolt signal = no accumaltion of Amp Hours and the pump(s) is off), P1 (Pump 1 = ON), P2 (Pump 2 = ON), or P12 (both pump 1 and 2 = ON).
- Page 4 MODEL 290-AHP3 MENU OPERATION (Cont.) To the right is the TIMER1 CNT LEFT screen. This screen shows the amount of seconds remaining during the “ON” pump condition. This screen can also be used to add time to the current pump cycle for a one time add without effecting the TIMER1 setting. TIMER2 CNT LEFT for Pump 2 works the same way.
- Page 5 APPENDIX A. CALCULATING THE PRESET AND TIMER VALUES NEEDED: The values you may need to run your metering system correctly can vary significantly. In most cases, the calculations are straightforward and only require a ratio of need chemical additions per amp/hour units. The following is a step-by-step example of how to derive a series of options for an actual situation. The user’s chemical representative should have supplied the feed ratio for chemical per amp/hour.
- Page 6 Keep Seconds and Correct for Error = Ratio: 60.0 amp/hours X [1-0.033(% error)] : 23 Seconds New Ratio: 58.02 Round Up: 59 Difference +0.98 % Error 1.67% Our final setting will be for every 59 amp/hours the pump must run for 23 seconds. Every 18,000 amp/hours (from step 1) you will need to add 63 ml (3784 ml X 0.0167) to correct for the 1.67% error.
- Page 7 INSTALLATION NOTE: WARNING: 110VAC All board components and CHECK circuitry use a “floating SQUEEZE ground” and must remain isolated from all other cir- TUBES PUMP 1 cuits and grounds. This is PUMP 2 REGU- only an issue if board is removed outside its protec- LARLY FOR tive casing.
- Page 8 8. You can use the “Prime Pump” function to prime these pumps if need be. CHECK FOR FREE MANUAL UPDATES AT www.jptech.com JP Tech, Inc. Box 863 2286 Church Street, Unit C East Troy WI 53120 Phone (262) 642-7671 Fax (262) 642-7681...
- Page 9 MAINTENANCE The PERISTALTIC Series of metering pumps require a minimal amount of maintenance to achieve optimal performance. Periodically check the squeeze tube for cracks, deterioration, or swelling. The squeeze tube will typically need to be replaced about every 6 months (chemical compatibility and duty cycle can cause this interval to vary).
- Page 10 245-4-PLYTB100 PERISTALTIC HINGE 245-4-HINGE NOTE: CHECK YOUR SQUEEZE TUBES PERIODICALLY FOR INTEGRITY (ABLE T0 EXPAND AFTER BEING SQUEEZED BY THE ROLLERS). ORDER BY: PHONE: 1-262-642-7671 POST: JP TECH, INC. FAX: 1-262-642-7681 P.O. BOX 863 E-MAIL sales@jptech.com East Troy, WI 53120...
- Page 11 TROUBLESHOOTING FOR AMP HOUR BASED METERS AMP HOUR ISSUES: NO AMP HOURS RECORDING WHEN RECTIFIER IS ENGAGED May have the leads from the twisted pair mV wire connected wrong at the shunt or analog amp meter in the remote. Reverse the leads of the Twisted Pair mV wire on the shunt or ana- log amp meter.
- Page 12 JP Tech will repair or replace any defective part within a product at the sole discretion of JP Tech. If JP Tech should choose to supply a part to the •...
