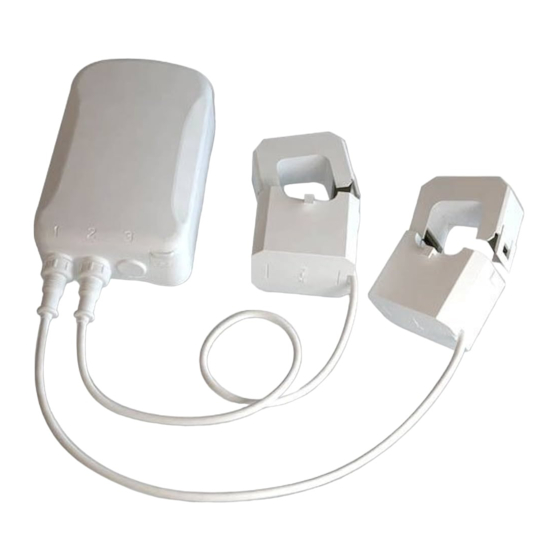

- Page 1 Aeotec Home Energy Meter (Z-DSB28-ZWUS) - Installation Guide https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Energy/Aeon_Labs_Home_Energy_Meter_(HEM)_… Updated: Wed, 22 Sep 2021 15:05:11 GMT...
- Page 2 Step 1: Connect the Home Energy Monitor to the AC Mains 1. Turn the main breaker off and open the main circuit box panel. 2. Clip clamps of the meter around the incoming electricity cable that connects to the main circuit breaker. Important: HEM G2 have directionality on the clamps.

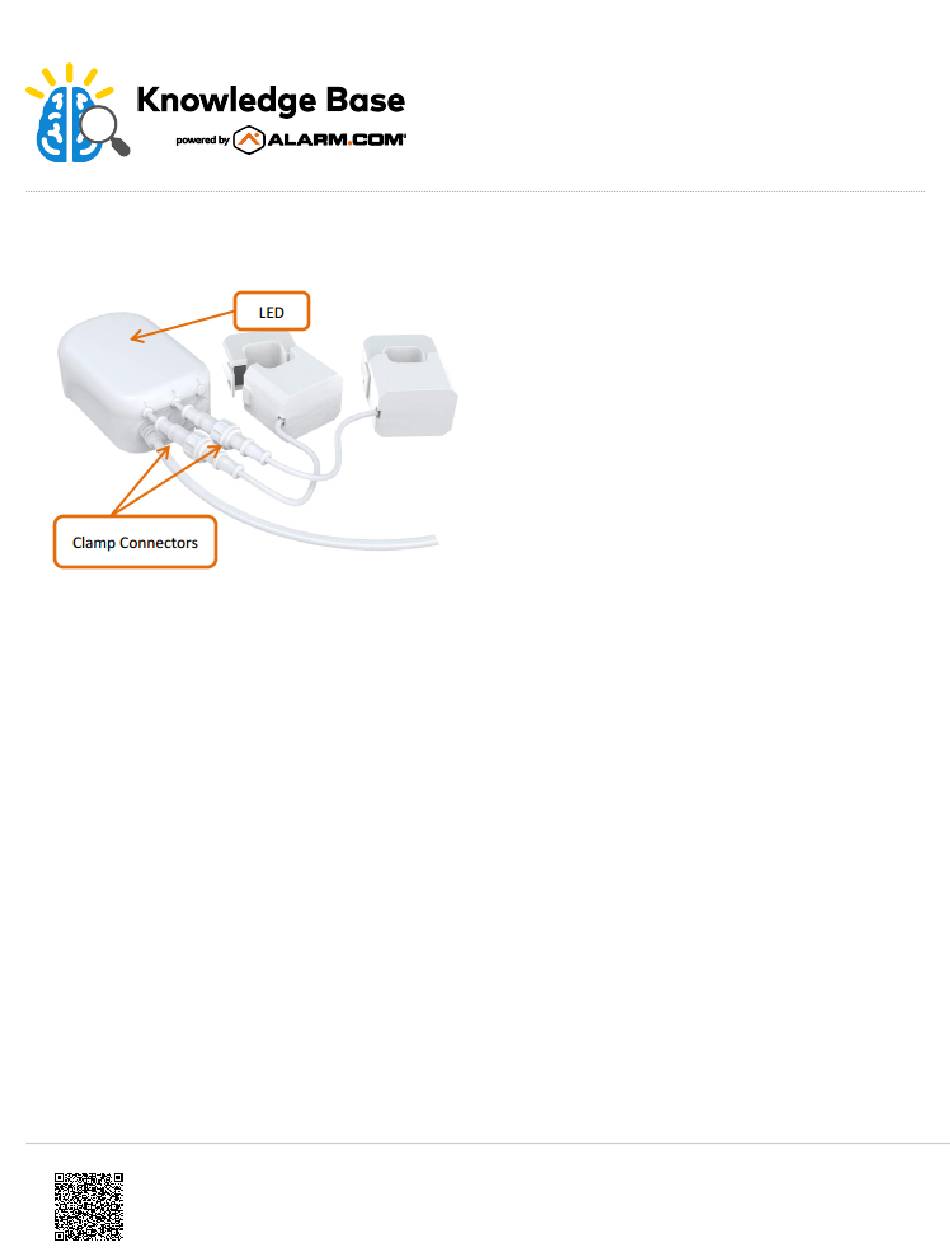

- Page 3 3. Connect the clamp to the meter using a Clamp Connector (1). Affix one of the AC Power exposed wires into a neutral bus terminal and the other exposed wire into a live terminal coming from the main circuit breaker. Step 2: Place the Home Energy Meter Inside the meter is a radio antenna used for communications, and this must be taken into consideration when selecting a location for the meter.
- Page 4 To add the device to an existing Z- Wave network: These steps can be performed without an electrician: 1. Enter Add Mode on the security panel. For panel- specific information about this process, see Panels. 2. Press the Action Button. If the linking was unsuccessful the light will blink...
- Page 5 Additional resources Enroll in the Automation & Energy 201 training course today! For more information on accessing Academy Training, How can I access Academy Training?. https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Energy/Aeon_Labs_Home_Energy_Meter_(HEM)_… Updated: Wed, 22 Sep 2021 15:05:11 GMT...
