23-2-2017
Home Energy Meter G2 user manual.
Modified on: Fri, 10 Feb, 2017 at 10:28 PM

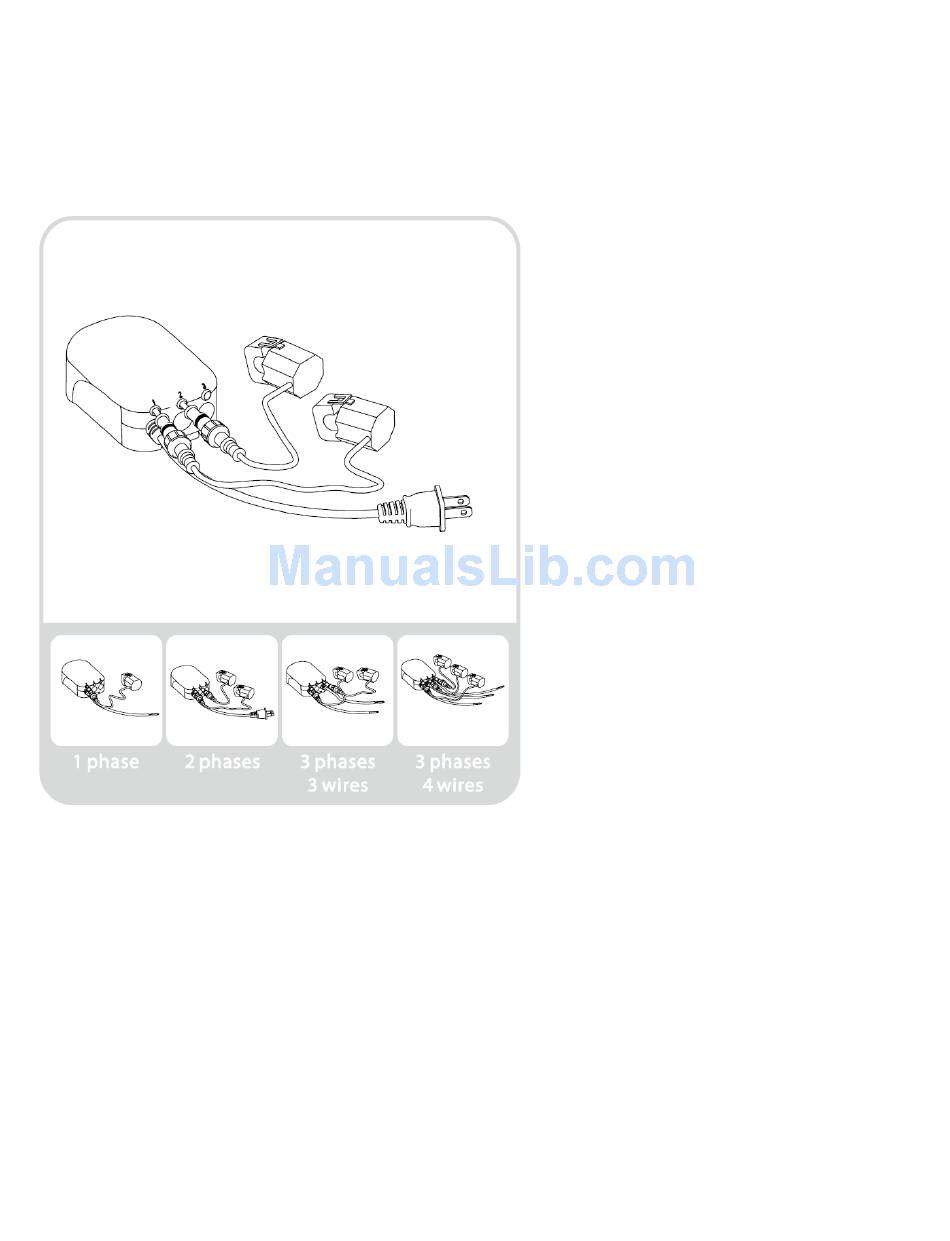

Aeotec by Aeon Labs Home Energy Meter.
You hear a lot about energy use these days. About how if you reduce the amount of energy you use you'll both save
money and the environment. But saving money by using less electricity is only possible if you understand when and how
you are using it. That's what Aeotec's Home Energy Meters provide you with: understanding, for your whole home.
Installed in an electricity box, your new energy meter will monitor the total amount of electricity your home uses with
accuracy and speed. Using a wireless Z-Wave® connection, it'll then feed the data it records back to your smart home's
gateway. In near real-time you'll have a full understanding of how much electricity you use and when you use it.
Familiarize yourself with your Home Energy Meter.
https://aeotec.freshdesk.com/support/solutions/articles/6000166671-home-energy-meter-g2-user-manual-
Home Energy Meter G2 user manual. : Aeotec by Aeon Labs
1/8
Advertisement
Table of Contents
Related Manuals for Aeotec DSB28-ZWAU
Summary of Contents for Aeotec DSB28-ZWAU
- Page 1 But saving money by using less electricity is only possible if you understand when and how you are using it. That’s what Aeotec’s Home Energy Meters provide you with: understanding, for your whole home. Installed in an electricity box, your new energy meter will monitor the total amount of electricity your home uses with accuracy and speed.

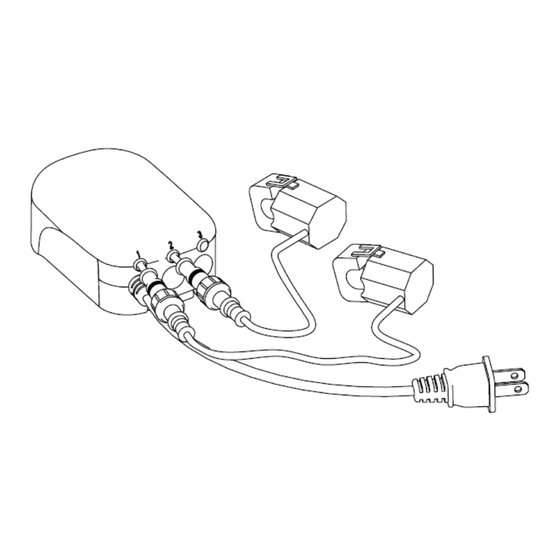

- Page 2 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs Your Home Energy Meter from Aeotec by Aeon Labs is comprised of two parts: the Main Body and Clamps. Once installed, the meter will sit near your home’s main circuit box, while the clamps are attached to it.
- Page 3 23-2-2017 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs In 230 volt countries with a 1 phase installation; Diagram of EU/AU Version(1 Phase): https://aeotec.freshdesk.com/support/solutions/articles/6000166671-home-energy-meter-g2-user-manual-...
- Page 4 23-2-2017 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs In 230 volt countries with a 3 phases and 3 wires installation; Diagram of EU/AU Version(3 Phases,3 Wires): In 230 volt countries with a 3 phases and 4 wires installation;...
- Page 5 23-2-2017 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs To perform the electrical installation for your Home Energy Meter (HEM), utilize the previous images to determine the phase version of the HEM and to also illustrate the following steps 3 through 7. ...
- Page 6 23-2-2017 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs 1. Put your primary Z-Wave controller, usually a gateway or hub, into inclusion mode. If you are not sure how to do this, please refer to your controller’s user manual. ...
- Page 7 23-2-2017 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs Download Excel HEM Calculator Here (https://aeotec.freshdesk.com/helpdesk/attachments/6039852024) -Requirements: Excel Program Byte # Decimal Value Output Clamp # byte 4 Total Readings byte 4 Watt Total Readings byte 4...
- Page 8 23-2-2017 Home Energy Meter G2 user manual. : Aeotec by Aeon Labs Parameter 111-113 [4 byte dec] can be configured through your gateway in case the default settings of your HEM is not what you desire. Parameter 111 will set the interval for Group 1 (parameter 101), parameter 112 will set the interval for Group 2 (parameter 102), and parameter 113 will set the interval for Group 3 (parameter 103).
