Aeotec

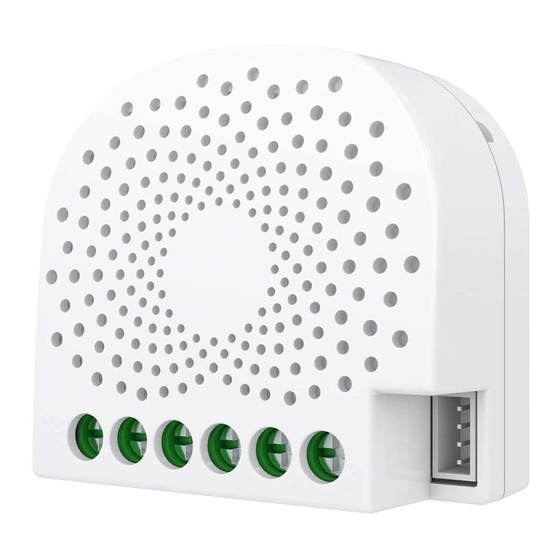

Single Nano Switch with measuring
SKU: AEOEZW116
Quickstart
This is a On/Off Power Switch for Europe. To run this device please connect it to your mains power supply.
following action:
1. Install the device according to the instructions.
2. Press the button 2 times quickly on the Nano Switch.
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment o
What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in
Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and
every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is not
in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other certified Z-Wave
device regardless of brand and origin as long as both are suited for the same frequency range.
If a device supports secure communication it will communicate with other devices secure as long as this
device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level of
security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.
http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116
30-09-2020 13:25
Pagina 1 van 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEOEZW116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aeotec AEOEZW116

  • Page 1 30-09-2020 13:25 Aeotec Single Nano Switch with measuring SKU: AEOEZW116 Quickstart This is a On/Off Power Switch for Europe. To run this device please connect it to your mains power supply. following action: 1. Install the device according to the instructions.
  • Page 2: Product Description

    30-09-2020 13:25 Product Description Aeotec Nano Switch is a low-cost Z-Wave Switch specifically used to enable Z-Wave command and control (on/off wattage consumption or kWh energy usage over a period of time. In the event of power failure, non-volatile memor unit?s operating status.
  • Page 3: Installation

    2. Preparing connection wires 14 AWG power wires for Input/ Output. 18 AWG copper wires for external manual sw the connection wire and make sure the length of the metallic part is about 5mm. Note: All connection wires needs to be flexible cable. Wiring diagram of AC120V/230V power input. http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 3 van 16...
  • Page 4 In some cases, you may have some loads just only can be used on the voltage of DC24V and hope that it still can b the following diagram to achieve this: Note: The ?IN? terminal sho http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 4 van 16...
  • Page 5 Since the Nano Switch also supports the DC24V power input, so you can use it to control the loads that powered b If the output loads should be only powered by AC120V or AC230V, you can change the wire connection as below: http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 5 van 16...
  • Page 6 All above wiring diagrams show that the Nano Switch uses 2-Way or momentary button switches as the external m diagram will show you that the Nano Switch uses the SPDT (Single-Pole Double-Throw) switches as the external m Wiring diagram of 3-Way connection for the external manual switch. http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 6 van 16...
  • Page 7 6. Make sure to have enough mains powered device to benefit from the meshing Association - one device controls an other device Z-Wave devices control other Z-Wave devices. The relationship between one device controlling another device is c http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 7 van 16...
  • Page 8: Configuration Parameters

    Output Load will be turned off automatically after 30 seconds and if the temperature of product inside exceeds 100° Size: 1 Byte, Default Value: 0 Setting Description Disable Enable Parameter 20: Configure the output status after re-power on it. Configure the output status after re-power on it. Size: 1 Byte, Default Value: 0 http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 8 van 16...
  • Page 9 Size: 1 Byte, Default Value: 1 Setting Description Send Nothing Send Basic Set CC Parameter 83: Configure the state of LED Configure the state of LED when it is in 3 modes Size: 1 Byte, Default Value: 0 http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 9 van 16...
  • Page 10 0 - 60 The minute value of ON time 256 - 316 The hour value of ON time 65536 - 65543 The day value (Mon to Sun) 16777215 Disable the setting. 16777216 Enable the setting. http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 10 van 16...
  • Page 11 Send Meter Report of energy (kWh) Parameter 102: To set which reports need to be sent in Report group 2. To set which reports need to be sent in Report group 2. Size: 1 Byte, Default Value: 0 http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 11 van 16...
  • Page 12 The range of interval time is 1 to 2147483647. Parameter 113: Set the interval of automatic report for Report group 2. Set the interval of automatic report for Report group 3. Size: 4 Byte, Default Value: 600 http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 12 van 16...
  • Page 13 Parameter 252: Lock/unlock configuration parameters Lock/unlock configuration parameters. Size: 1 Byte, Default Value: 0 Setting Description Unlock Lock http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 13 van 16...
  • Page 14: Technical Data

    Specific Device Class Binary Power Switch Firmware Version 01.00 Z-Wave Version 04.22 Certification ID ZC10-17035496 Z-Wave Product Id 0x0086.0x0003.0x0074 Frequency Europe - 868,4 Mhz Maximum transmission power 5 mW Supported Command Classes Basic Switch Binary Switch All http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 14 van 16...
  • Page 15: Explanation Of Z-Wave Specific Terms

    Node Information Frame — is a special wireless message issued by a Z-Wave device to announce its capabil (c) 2020 Z-Wave Europe GmbH, Antonstr. 3, 09337 Hohenstein-Ernstthal, Germany, All rights reserved, www.zwave.eu. Europe GmbH. The product content is maintained by Z-Wave Europe GmbH , Supportteam, support@zwave.eu. Last upda 09:56:23 http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 15 van 16...
  • Page 16 30-09-2020 13:25 http://manual.zwave.eu/backend/make.php?lang=en&sku=AEOEZW116 Pagina 16 van 16...
