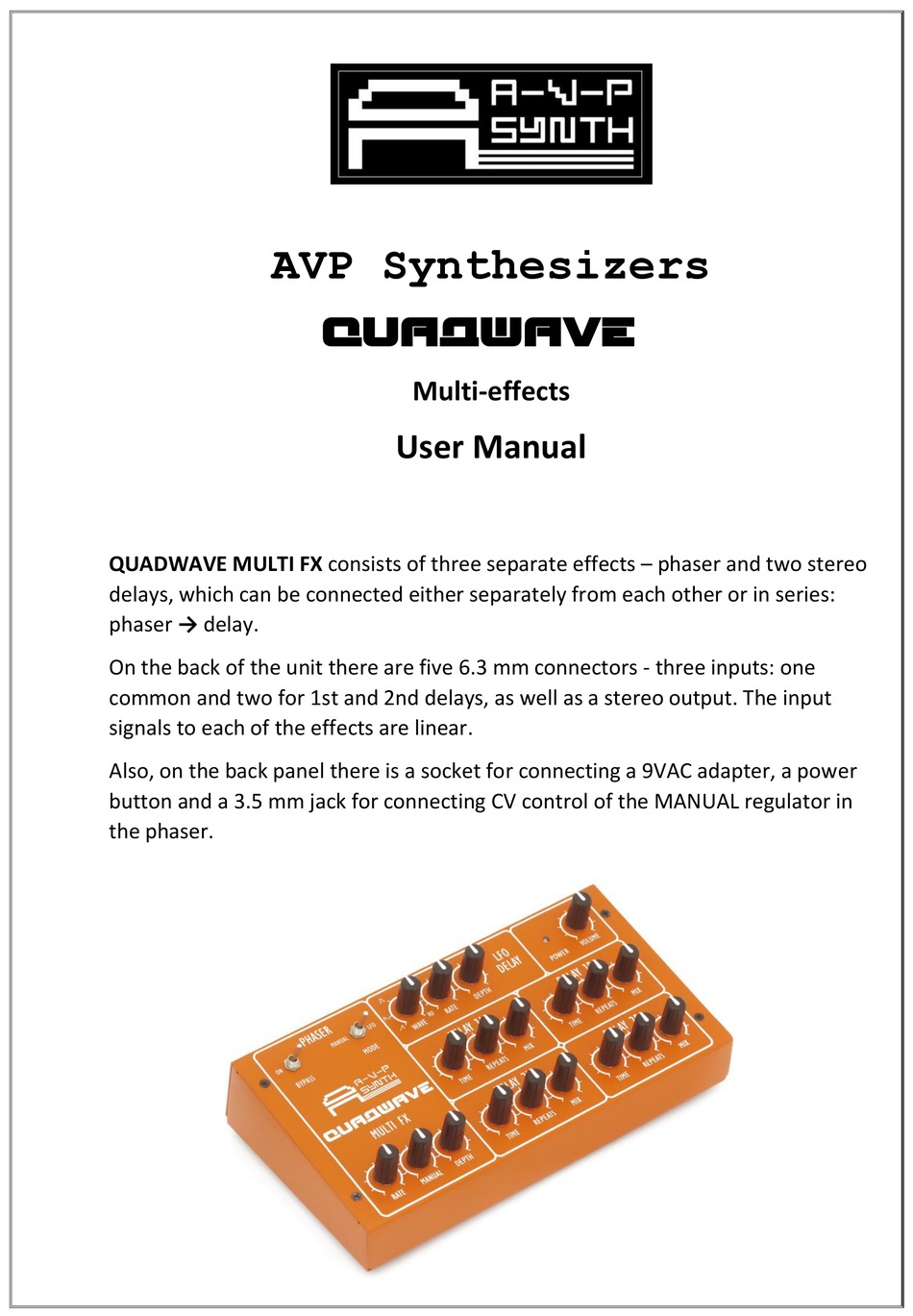

QUADWAVE MULTI FX consists of three separate effects – phaser and two stereo
delays, which can be connected either separately from each other or in series:
phaser → delay.
On the back of the unit there are five 6.3 mm connectors - three inputs: one
common and two for 1st and 2nd delays, as well as a stereo output. The input
signals to each of the effects are linear.
Also, on the back panel there is a socket for connecting a 9VAC adapter, a power
button and a 3.5 mm jack for connecting CV control of the MANUAL regulator in
the phaser.
