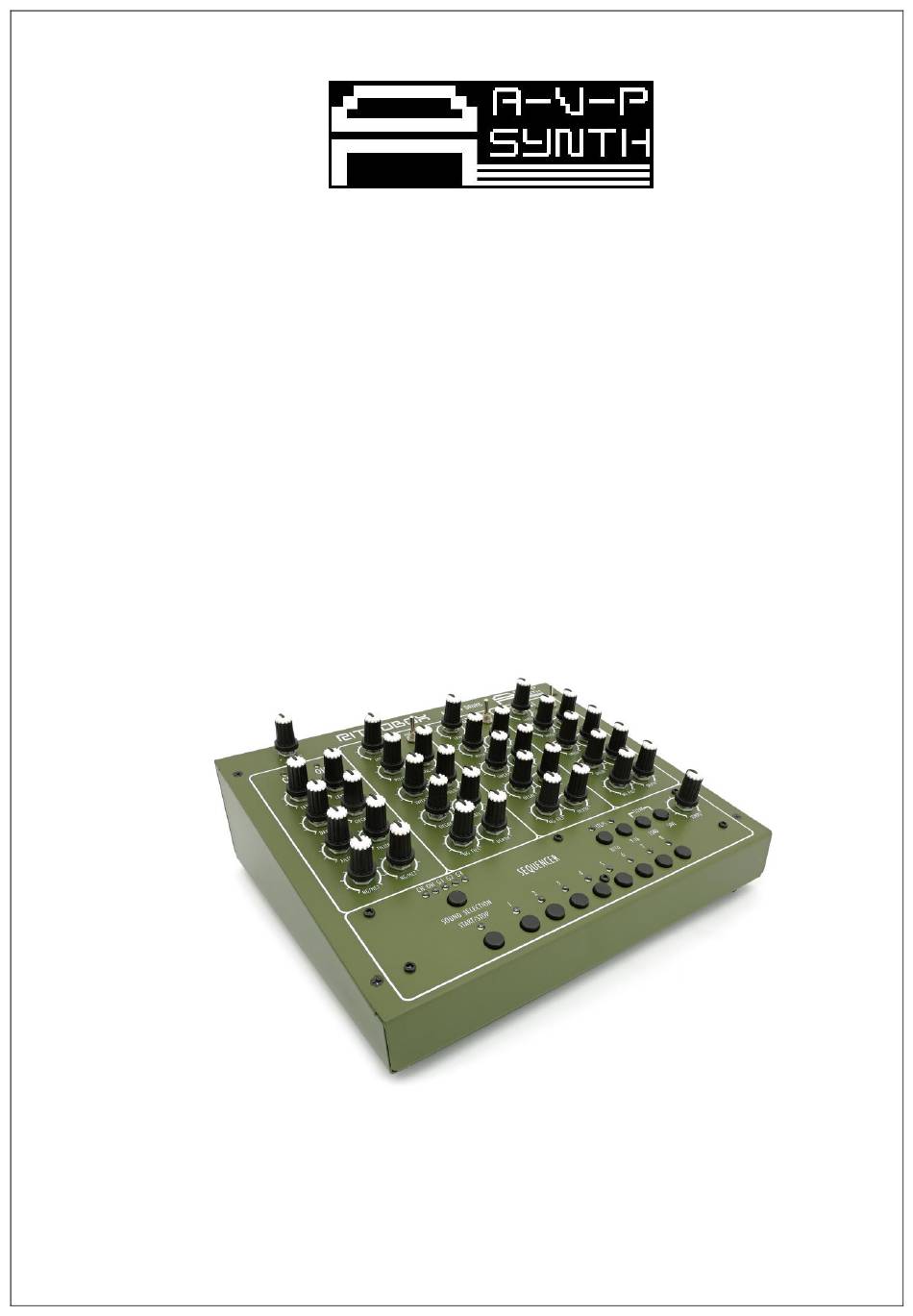

- Page 1 AVP SYNTHESIZERS RITMOBOX Analog Drum Synthesizer with 8-step sequencer User Manual www.avpsynth.com...

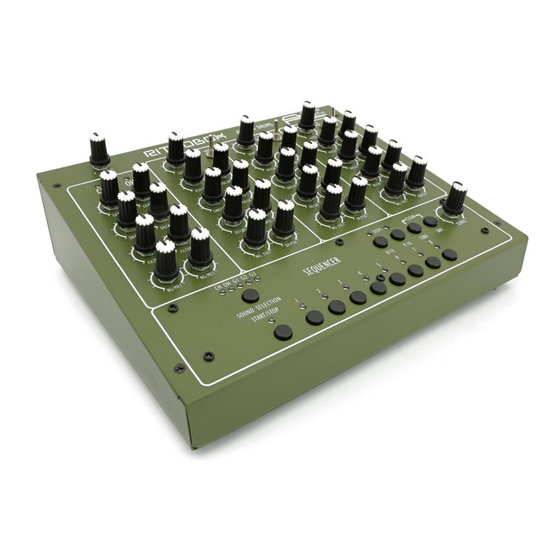

- Page 2 RITMOBOX - is a compact, analog drum synthesizer inspired by the drum machines/synthesizers of the 70s-80s with a built-in 8-step sequencer and MIDI. It has 37 controls, 3 switches and 14 buttons with which you can have a wide control over the sound parameters, sequencer and MIDI. It has individual audio outputs for each of the five sounds and a mix output.
- Page 3 Controls Front panel Rear panel www.avpsynth.com...
- Page 4 ① MASTER section Regulates the master volume of the unit. ② ③ CH and OH section LED indicator; LEVEL – volume control level; DECAY – decay control; FILTER – cutoff filter control; NG/MET - mixing of the noise generator/metal tone. ④...
- Page 5 ⑭ MIX OUT – 6.3 mm jack for connecting the unit to a mixer, amplifier or other sound device. Connecting RITMOBOX Connect the power adapter, audio and MIDI cables to your RITMOBOX rear connectors. Power supply (12 VAC): Connect the included power adapter to the POWER input of RITMOBOX;...
- Page 6 The first MIDI note received from the MIDI controller will set the MIDI channel number. After that, you need to Power off RITMOBOX and then turn it on again to resume normal operation. Now the set MIDI channel will be stored in the device memory.
- Page 7 8 step buttons to select where the pattern will be saved. By default, the 1-8 slots for saving are selected (out of 16). This saves all 16 steps of each of the eight sounds of the current pattern. RITMOBOX has overall 16 saving slots.
- Page 8 MIDI CLOCK messages are sent from the MIDI OUT. MIDI notes in messages are sent via MIDI OUT for MIDI control of other external midi devices. Warranty: The standard warranty on RITMOBOX synthesizer is for one year from the date of purchase. 1. The warranty does not apply in the following cases: - Expiration of the guarantee (after one year from the date of purchase);...
