COMPUTERSCALES
XLi Hybrid
OPERATING INSTRUCTIONS
App versions 1.23 – 1.25
www.LongacreRacing.com
© 2020 - AFCO Performance Group
52-LIT-5040 REV B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Computerscales XLi Hybrid and is the answer not in the manual?

Questions and answers

Summary of Contents for Longacre Computerscales XLi Hybrid

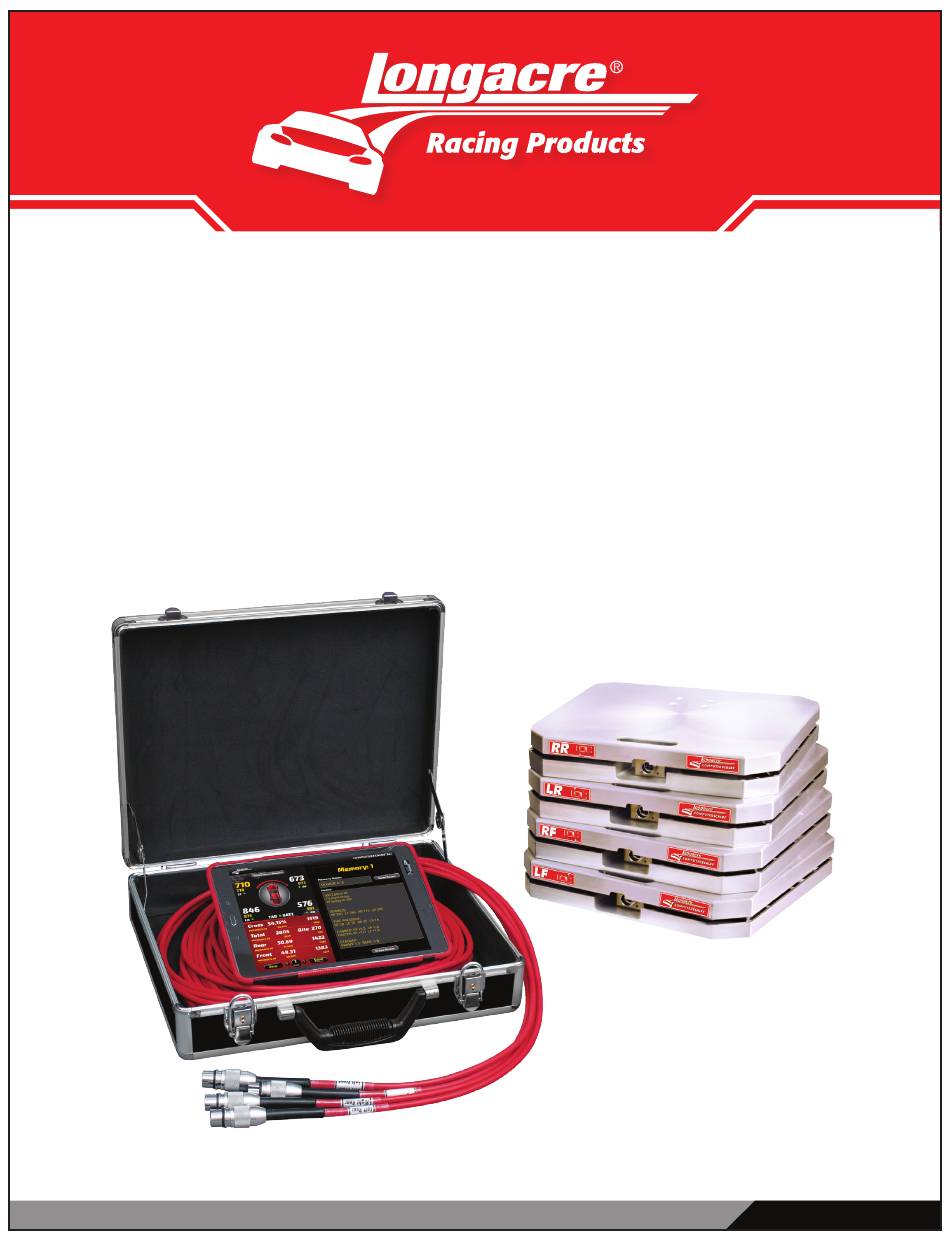

  • Page 1 ® COMPUTERSCALES XLi Hybrid OPERATING INSTRUCTIONS App versions 1.23 – 1.25 www.LongacreRacing.com © 2020 - AFCO Performance Group 52-LIT-5040 REV B...
  • Page 2 VISIT US ONLINE... www.LongacreRacing.com Online Catalog Everything you need to know about Longacre products: ® photos, detailed product descriptions, instructions and tech tips. Tech Library Helpful tech information on a variety of racing topics. Find A Dealer Need help finding a...
  • Page 3: Quick Start Instructions

    COMPUTERSCALES ® App Versions 1.23 – 1.25 Quick Start Instructions This tablet uses the Android operating system. ® Many functions are similar to ‘Smartphones’ and it uses a touch screen to operate. CAPACITY: Most #’s listed 1500 lbs (650 kgm) per pad. Excess weight can damage the load cells.
  • Page 4 COMPUTERSCALES ® App Versions 1.23 – 1.25 HYBRID SCALES -- PART WIRED/PART WIRELESS At the very top is the Memory number you selected for reference (in yellow). Hybrid Systems have 2 separate parts: 1. A pad control board under the tablet that powers the Under that is a narrow text box called Memory Name.
  • Page 5 COMPUTERSCALES ® App Versions 1.23 – 1.25 In the future to view these notes, tap the arrows (< & >) to 10” TABLET SIDE-BY-SIDE NOTE TAKING select the memory number and tap the: Notes – Add/View Name Memory button again. Note taking screen and main application screen are You can edit these notes at any time or you can erase shown side-by-side and the app is locked into landscape...
  • Page 6 COMPUTERSCALES ® App Versions 1.23 – 1.25 10” tablet with side-by-side note taking feature ROTATE WHEEL WEIGHTS ON DISPLAY: Tap the TO SHUT SYSTEM DOWN: (different from ‘Sleep’) Rotate Wheel Weights button. Weights and car icon Push & HOLD ON for 3 seconds. Display changes. Tap rotate clockwise in 90°...
  • Page 7: Replace Control Box Batteries

    COMPUTERSCALES ® App Versions 1.23 – 1.25 REPLACE CONTROL BOX BATTERIES: The control RE-PAIRING: The control box and tablet are connected box runs off separate Alkaline batteries. Access is behind wirelessly via Bluetooth®. Occasionally the pairing the control box and uses 3 “D” cell batteries. Remove the between the two will be lost and you will need to re-pair.
  • Page 8: Application Features

    COMPUTERSCALES ® App Versions 1.23 – 1.25 Application Features NOTE: Feature differences between DX3 (10”) and DX2 (7”) noted where applicable. Push ON for High contrast white sleep mode to display for bright save battery. conditions. Standard Red Industrial Skin. Black Skin.
  • Page 9 COMPUTERSCALES ® App Versions 1.23 – 1.25 TABLET BATTERY INDICATION: is on the display just When you are done be sure to POWER OFF the tablet (different than Sleep). Push ON and hold 3 seconds. under the car icon . You can also go to the Message comes up.
  • Page 10 Double click on this to open and then double click on Tablet. Longacre folder on the tablet when you tap Save to File. Look for a folder named ‘Longacre’ and open it. Drag any of It will create a file using the Memory location number and the .csv files that you want to save to your PC Desktop or other...
  • Page 11: General Precautions

    COMPUTERSCALES ® App Versions 1.23 – 1.25 Misc. Notes Here are some messages that may come up from time to time: The app wants to The app wants to pair Tablet battery is turn Bluetooth ® the device low – continue? The wording may vary slightly.
  • Page 12: Install Custom Car Display Icon

    (or even a tree). Shots taken from a ladder may not look as expected. Look for a folder named ‘Longacre’. If there is not one, Email us the picture to contactus@longacreracing.com right click to create one and name it Longacre.
  • Page 13: Simple Troubleshooting

    COMPUTERSCALES ® App Versions 1.23 – 1.25 Simple Troubleshooting Be sure the Bluetooth® icon shows before launching Possible solutions: the app. • First reboot the control box (turn off and back on). • If it doesn’t start working in 5-10 seconds try rebooting If you launch the app COMPUTERSCALES XLI™...
  • Page 14 COMPUTERSCALES ® App Versions 1.23 – 1.25 ‘PAIRING’ THE CONTROL BOX WITH THE TABLET the screen and tap the Screen Rotation icon or go into On rare occurrences the connection between the control your Android® Settings screen and under Accessibility box and the tablet –...
  • Page 15 COMPUTERSCALES ® App Versions 1.23 – 1.25 Warning message comes up. Tap Change Code. Display changes and keyboard appears at the bottom. Tap on white area of box to right of ****. (Current SysID – hidden). Blue arrow appears below cursor and ****.
  • Page 16 COMPUTERSCALES ® App Versions 1.23 – 1.25 Tap Backup key to erase current SysID. Blue arrow shows where the cursor is. All **** must be gone. Enter new SysID on keyboard. 4 characters. (May be all numbers or letters, not case sensitive). After you enter the last number or character you are done.
  • Page 17 COMPUTERSCALES ® App Versions 1.23 – 1.25 Pair the Control Box with the Tablet The control box and tablet are connected wirelessly via “DO YOU WANT TO PAIR WITH THIS DEVICE?” Bluetooth®. Occasionally the pairing between the two could be lost and you will need to repair them. This is a Tap OK.
  • Page 18: Warranty Policy

    COMPUTERSCALES ® App Versions 1.23 – 1.25 WARRANTY POLICY on Hybrid Scale Systems Tablets are warrantied for a period of 1 year and the control box and pads for 2 years from the date of retail/consumer sale (not from the date of manufacturer’s sale to the dealer as other scale manufacturers do). We will handle any tablet manufacturer’s warranty for you since the repaired or replaced tablet needs to be configured and linked to the pad modules (remember –...
  • Page 19 COMPUTERSCALES ® App Versions 1.23 – 1.25 Pad Capacity by Part Number Excess weight can damage load cells. 52-72613, 52-72617 1500 lb per pad 52-72653 1800 lb per pad CHECK OUT OUR NEW TECH VIDEOS ONLINE! ™ www.LongacreRacing.com/videos CONTACT US Phone Service Department Fax Number...
  • Page 20 ® ® all levels of racing. Find us online at LongacreRacing.com. FOLLOW US ON FACEBOOK. For the latest news from Longacre on new product ® development, tech tips, race results, how-to videos, product videos, and industry news, find us online at Facebook.com/LongacreRacing.
