Longacre 72601 Instructions

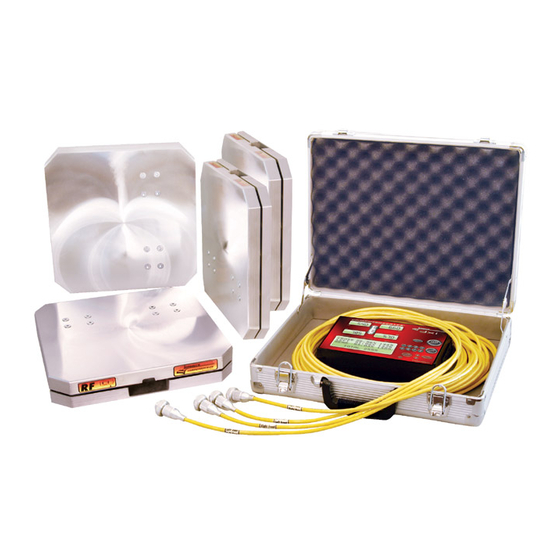

Instructions for Model No. 72601, 72609, & 72628 Scales
1) Set up pads along side car. Scale pads are marked RF, LR, etc.
2) Set up control box in a convenient location and connect cables to the pads. Cables are marked and must be used for that pad.
3) Turn on control box, allow to warm up for a minute or so.
4) Push Zero.
This defines "0" weight. DON'T PUSH
5) Lift car and place pads under wheels.

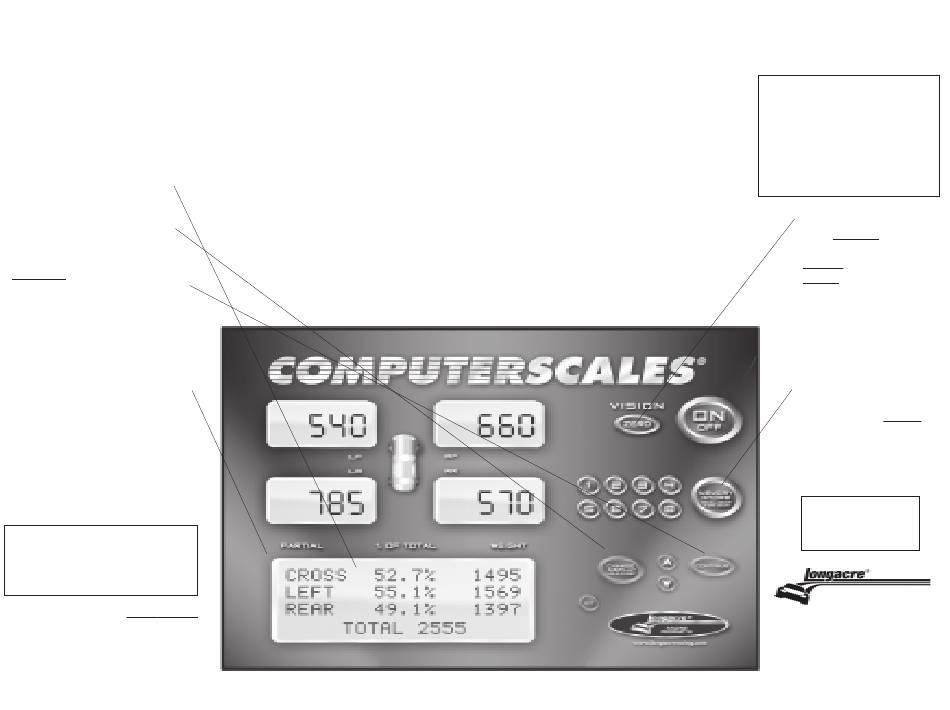

Customize 4 line
display:
To change the 4 line % display to
your preference push CHANGE
DISPLAY and hold for 5 sec. Top
line will start to flash. Use arrows to
scroll up or down to the % you want
on that line. Push CONTINUE. The
second line starts to flash. Use
arrows to select this line. Press
CONTINUE after each selection.
Normal function resumes after last
selection or push ON. This will stay
until you change.
Low Batt
Shows :
on display when batteries needs to
be r eplaced. Use 6 Alkaline AA cells
Low Battery indication has 2 steps:
LOW BATT CHANGE SOON LOW BATT CHANGE SOON
LOW BATT CHANGE SOON LOW BATT CHANGE SOON LOW BATT CHANGE SOON
1)
comes on when you have approx. 4 hours
left - plenty of time.
LOW BATT CHANGE NOW LOW BATT LOW BATT CHANGE NOW CHANGE NOW CHANGE NOW
LOW BATT LOW BATT CHANGE NOW
2)
comes when you have approx.
1/2 hour left.
NOTE: THIS MODEL DOES NOT USE
RECHARGABLE BATTERIES.
Power consumption is so low that
it only needs battery replacement about
once a year or less.
Control Box:
To CHANGE BATTERIES:
Remove 4 small screws in the plate on the
bottom of the black enclosure - marked
"Batteries". Replace with 6 quality AA
alkaline batteries (always replace all
batteries). Be sure polarity is correct. The
coil spring goes to negative end.
and should be used at that location
AFTER CAR IS ON SCALES.
Zero
"Shake" car up & down at each corner to settle out any shock or suspension friction.
• Control box shuts off after 1+ hour. Push ON/Off
• If you turn off just the control box after 1 minute pads go into "standby" mode. If control box is turned back
on within 1 hour pads will go back to active. If the green LED is out you will need to turn the pads back on also.
• Keep the system clean and dry. Do not drop either the pads or the control box.
System can be set for Metric readout. See below.
.
ON/Off to turn back on
(DO NOT re-zero unless car is off pads)
ON/Off ON/Off ON/Off
2/12
CAPACITY:
Most #s listed: 1500 lb
(650 kgm)
per pad.
#72628 kart scale: Do NOT
exceed 400 lbs.
(180 kgm)
Excess weight can damage
the load cells.
Zero:
Push BEFORE putting
car on scales.
DON'T push Zero
AFTER car is on scales.
This defines zero
weight.
"2ero" on display
indicates zero has been
lost. Remove weight &
rezero.
Memory:
To store weights in
Memory push & hold
Memory Store
button, then push #1 - 8.
To recall push and hold
#1 - 8 only.
Metric:
See below
Call, FAX, e-mail
if you have any questions or problems.
Longacre Racing Products, Inc.
16892 146 St SE, Monroe, Wa. 98272
th
Ph (360) 453 2030 FAX (360) 453 2031
www.longacreracing.com
