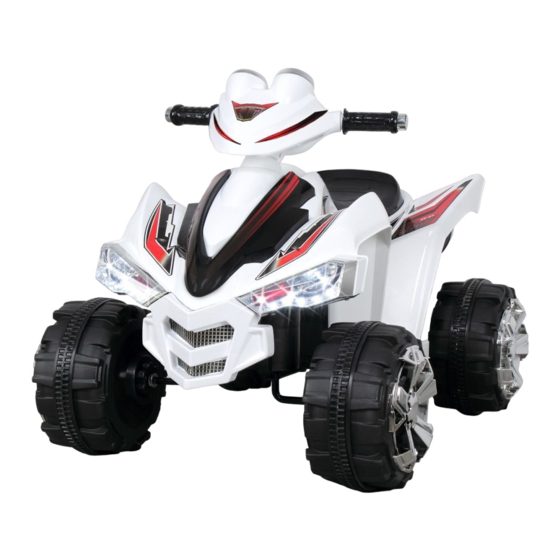

- Page 1 RIDE ON ATV item number: 048-ATV12...
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following Read all Instruction before use • To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid. •... - Page 3 Parts and Feature 1. Body 6. Wheel 11. Battery Holding Bar 2. Seat 7. Wheel Washer 12. Battery 3. Seat Lock 8. Wheel Nut 13. Steering Column 4. Rear Wheel Axle 9. Wheel Cover 14. Steering handle 5. Gear Unit 10.
-
Page 4: Assembly Instruction
Assembly Instruction Washer Wheel Nut Front Axle Wheel Cover Front axle assembly Slide on a washer, wheel, and another washer on the front axle. Secure it using the nut. Then snap the wheel cover on. Repeat the same process on the other side. Left Gear Box Right Gear Box (w/ Blue + Yellow wire) - Page 5 Assembly Instruction Steering handle assembly Remove the bolt and nut from the steering handle. Align and insert the steering handle on the steering col- umn. Secure it by replacing and tightening the bolt and nut on the mount. Battery connection and seat assembly Connect the battery unit underneath the driver seat by the connectors with correspond colored wires and secure the seat by tightening the seat lock.
- Page 6 Sticker Decoration Application...
-
Page 8: User Instruction
User Instruction Before Use • Make sure the product is fully charged. • Make sure all componants are well assembled. Power / Gear Selsction Power Switch • Turn on the power by pushing down the power switch. Forward • Select Low / High speed by using the speed selection boton. Stop Slow-Fast Back... -
Page 9: Troubleshooting
User Instruction Care and Maintenance • Store the product indoor. • Avoid direct sunlight, rain, water, or snow. • Clean the product termly • Do not wash the product with a hose Troubleshooting Problem Possible reason Solution Battery is too low Fully charge the battery Fuse protection Replace with a new fuse... - Page 10 2. Any product modifications by dealer, any circumstances. It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
