Instruction Manual
Ride on Bumper Car 360 Rotation (6V)
Item number: 060-ROT-06

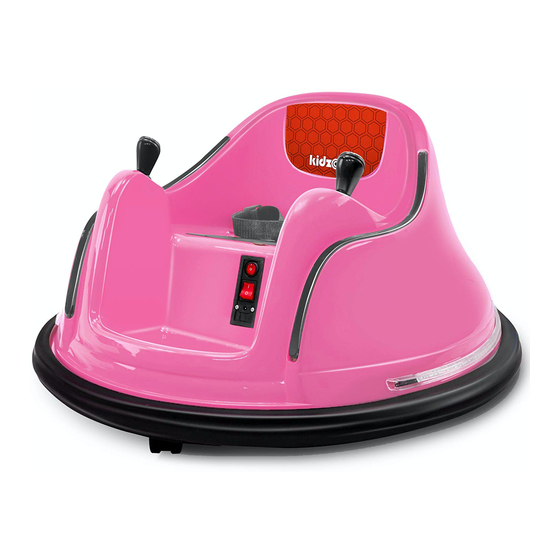

Note: Product appearance and colors may vary from the photo.
This vehicle is packed with the battery disconnected.
Connect the battery before use.
This manual contains important safety, performance
and maintenance information. Read the manual before
allowing your child to ride your new electric ride-on toy.
Keep this manual properly for future reference.
Advertisement
Related Manuals for Kidzone 060-ROT-06
Summary of Contents for Kidzone 060-ROT-06
- Page 1 Instruction Manual Ride on Bumper Car 360 Rotation (6V) Item number: 060-ROT-06 Note: Product appearance and colors may vary from the photo. This vehicle is packed with the battery disconnected. Connect the battery before use. This manual contains important safety, performance and maintenance information.
- Page 2 When using electrical product, basic safety precaution should always be followed including the following Read all Instructions before operating this product WARNING: • To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid. •...
-
Page 3: Prevent Fire
WARNING: PREVENT FIRE • Never modify the electrical system. Alterations could cause a re resulting in serious injury and could also ruin the electrical system. • Use of the wrong type of battery or charger could cause a re or explosion resulting in serious injury. - Page 4 WARNING FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. The owner’s manual contains assembly, use and maintenance instructions. Child Safety Warnings • Adults supervising children must read and understand this entire manual before allowing any child to use this product.
- Page 5 WARNING 5• If necessary, adults and supervisors are always responsible for setting up gates and barriers to ensure a safe riding environment for the child rider. 6• Be aware that this ride-on toy does not have braking capabilities. Allowing use of this ride-on toy in areas that require braking may cause rolls, crashes, serious injury, or death to the child rider.
- Page 6 WARNING Battery and Charging Warnings The following safety hazards may result in serious injury or death to the user of the ride-on: Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium • batteries.) Corrosive Material Warnings Battery posts, terminals and related accessories contain lead and lead...
- Page 7 WARNING • Regularly check charger, supply cord and connector for wear and damage. Look for frayed or kinked wires, any exposed inner wires, any missing insulation. If any damage is observed do not plug in the charger and do not charge the battery.
- Page 8 Motor: 2x15 W Battery: DC 6V 4AH Charger: 6V 500MA Speed: 0.75mph(1.2km/h) Suitable Age: 18-72 months Maximum User Weight: 66 lb/30 kg Dimension: 28.35”x28.35"x16.93" (72x72x43cm) Battery Charging Time: 8-12 hours First Charging Time : 4-5 hours Max Charging Time : 12 hours Battery (Temperature Tolerance):104 F...
- Page 10 Before activating this vehicle Unscrew to detach the seat cover. Connect the battery terminal. (Red terminal connect with Red connector, Black terminal connect with Black connector) Attach the seat cover and tighten the screws. WARNING: The battery should only be charged by adult. The vehicle must be OFF when charging.
- Page 11 Operating this vehicle To light on the vehicle, press light symbol switch. To move the vehicle forward, push both control sticks forward at the same time. To move the vehicle backward, pull both control sticks backward at the same time. To left turn the vehicle forward, push the right control stick forward.
- Page 12 Frequency Matching Emergency brake Forward Turn Right Backward Indicator Turn left Using the remote control The remote control should only be used by adult. The remote control overrides the manual control from the vehicle. Frequency Matching changing the batteries is required. •...
- Page 13 Control the vehicle • For your child's safety, please make sure the seat belt is securely fastened when operating this vehicle. • To move the vehicle forward, press the up arrow switch. • To move the vehicle backward, press the down arrow switch. •...
- Page 14 Battery not last long Charger becomes warm during charging...
- Page 15 Model: TX4 FCC ID: 2AJ2H-WYTX4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
- Page 16 V3-2021-09-23...
