LICENSED CHEVY SILVERADO RIDE ON (12V)
item number: 060-ROT-11L
Note: Product appearance and colors may vary from the photo.
This vehicle is packed with the battery disconnected.
Connect the battery before use.
This manual contains important safety, performance
and maintenance information. Read the manual before
allowing your child to ride your new electric ride-on toy.
Keep this manual properly for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 060-ROT-11L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kidzone 060-ROT-11L

Summary of Contents for Kidzone 060-ROT-11L

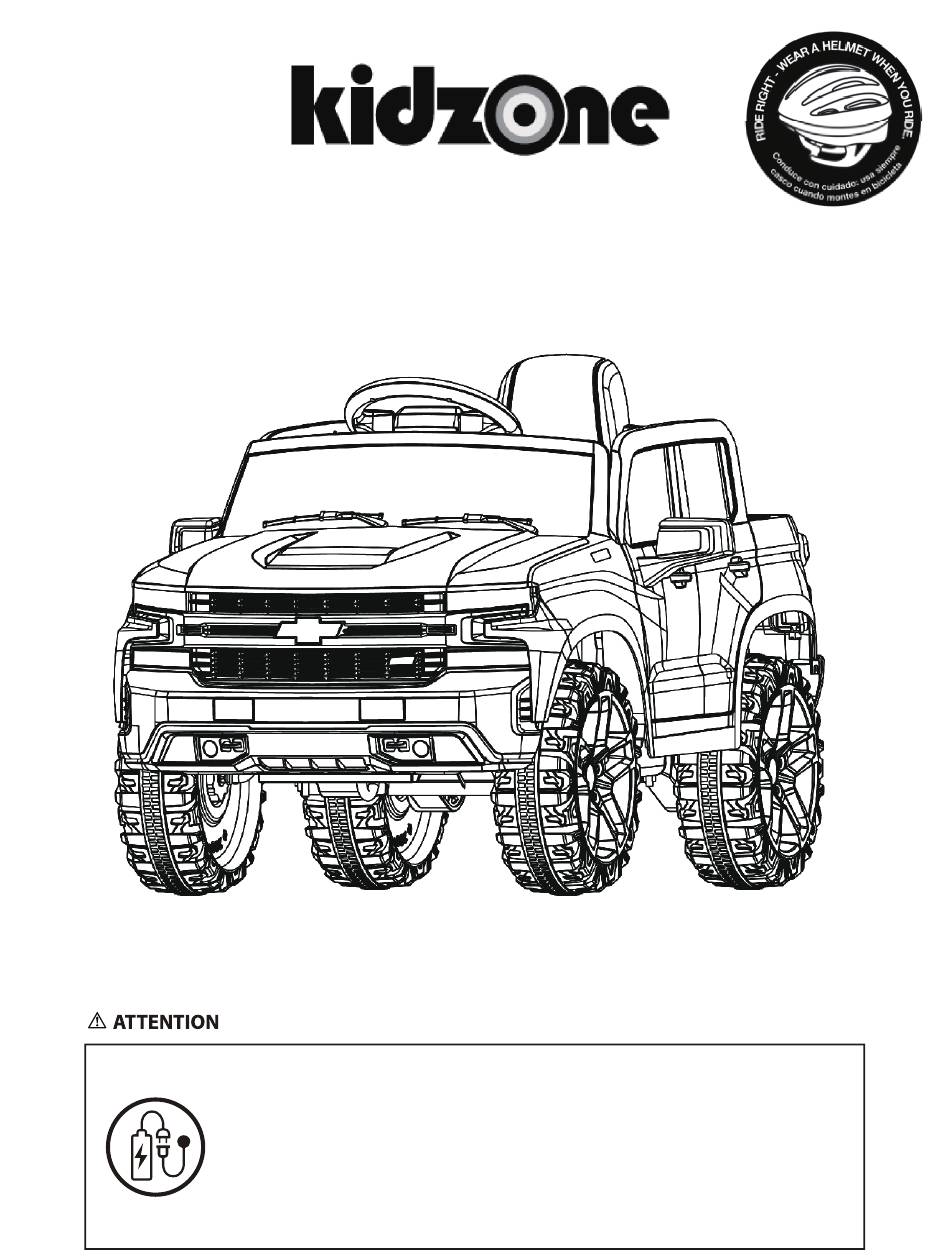

  • Page 1 LICENSED CHEVY SILVERADO RIDE ON (12V) item number: 060-ROT-11L Note: Product appearance and colors may vary from the photo. This vehicle is packed with the battery disconnected. Connect the battery before use. This manual contains important safety, performance and maintenance information. Read the manual before allowing your child to ride your new electric ride-on toy.

  • Page 2: Safety Instruction

    Safety Instruction When using electrical product, basic safety precaution should always be followed including the following. WARNING: Read all Instruction before use operating this product • To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid.
  • Page 3 WARNING: PREVENT FIRE Never modify the electrical system. Alterations could cause a re resulting in serious injury and could also ruin the electrical system. Use of the wrong type of battery or charger could cause a re or explosion resulting in serious injury. The battery must be handled by adults only.
  • Page 4 Parts and Feature A (Steering Wheel) C (Seat) D (Backrest) E (Remote Control) F (Wind Deflector) H (Wheel Cover) I (Wheel) J (Rear View Mirror) K (Side Window) P (M8 Spanner) X (M4 x 16 Screw) Y (M3 x 10 Screw) Q (Charger)

  • Page 5: Assembly Instruction

    Assembly Instruction Estimated Assemble Time: 40 mins Tools Needed: Screw Driver (not included) Some parts are small parts and have sharp edges. Do not let children handle parts or the assembly. This product should be assembled by adult. Assemble the rear lights to the vehicle and tighten screws (Y).
  • Page 6 Assembly Instruction Remove Nuts (2) and Gaskets (1) from the Rear Axle (3) by M8 Spanner(P). Assemble Rear Wheel Motor (4) to the Rear Axle (3). Insert the extended end (8) into slot (Z) of the vehicle.
  • Page 7 Assembly Instruction Remove Nuts (6) and Gaskets (5) from both ends of the front axle by M8 Spanner(P). NOTE: Leave 1 Gasket (5) on each side of the front axle. Insert Wheels (I) to both front and rear axle. Secure using Gasket (5) and Nut (6) by M8 Spanner(P) and put on the Wheel Cover (H).
  • Page 8 Assembly Instruction Insert 2 AA batteries to the Steering Wheel (A). WARNING • All batteries should be installed in the correct polarity. • Do not recharge Non-rechargeable battery. • Keep battery away from children. • Do not mix old and new batteries. •...
  • Page 9 Assembly Instruction Align Side Window (K) to the side of the car body and fasten 5 M3x10 Screws (Y). Repeat the same step for the other side. Insert the windshield (F) to the vehicle body. Insert the 2 Rear View Mirror (J) to the vehicle body.
  • Page 10 Assembly Instruction Insert the hook of the Seat (C) into the corresponding grooves on the vehicle body, then secure in place using 2 M4x16 Screws (X). Insert Seat Backrest (D) into the corresponding grooves on the vehicle body, then fasten 2 M4x16 Screws (X).

  • Page 11: User Instruction

    User Instruction Horn Button Horn Button Horn Button Control Panel Control the vehicle Control Panel Control the ON / OFF of the vehicle and the audio playing system. See detailed instruction on the Control Panel on page 11~12. Horn Button Press the button to horn.
  • Page 12 Press the FM button to enter FM mode. 3. Mode Button Press Mode button to switch between USB, AUX, and Bluetooth(Kidzone Ride-on). 4. Forward Button Press the forward button, and step on the foot pedal to move the vehicle forward.
  • Page 13 User Instruction (Control Panel) 9. Next / Increase Volume Button Press the button to play the next music track. Press and hold the button to increase the volume. 10.ON/OFF Button Press and hold the button to turn ON or OFF the vehicle. Short press the button to pause or play music track.
  • Page 14 User Instruction (Remote Control) Forward Left Stop Right LED Indicator Reverse Speed Selection Button Using the remote control...
  • Page 15 User Instruction (Charging) WARNING! The battery should only be charged by an adult. The battery is not replaceable.

  • Page 16: Care And Maintenance

    Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Keep away the product from heat and humid area, cover it with trap when not in use. •...
  • Page 17 Troubleshooting...
  • Page 18 Model: CST-1A FCC ID: 2ARLM-CST-1A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
