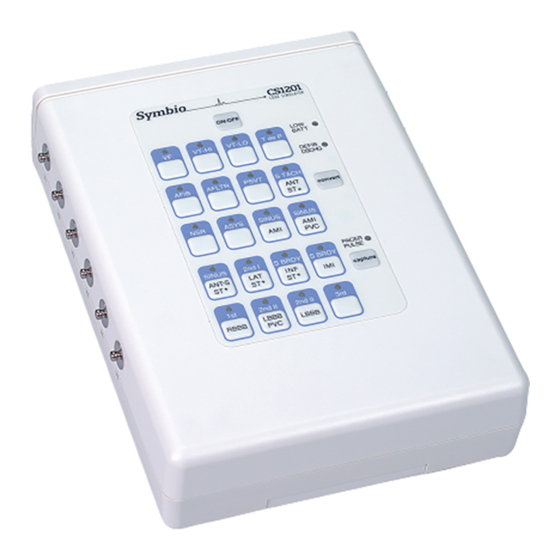

symbio CS1201 Quick Start Manual

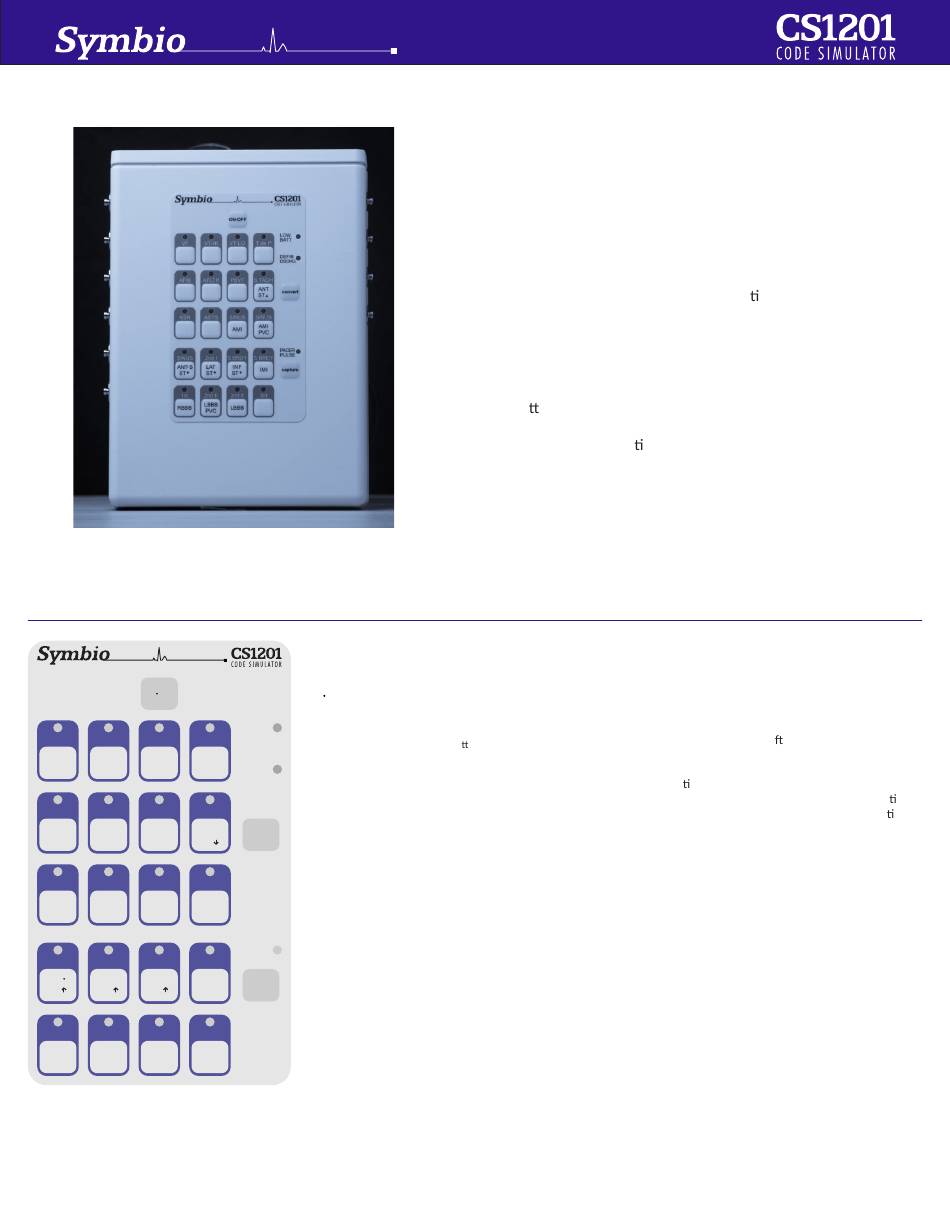

Controls and Indicators
ON OFF
VF VT-HI VT-LO T de P
AFIB AFLTR PSVT S TACH
ANT
ST
NSR ASYS SINUS SINUS
AMI
AMI
PVC
SINUS 2nd I S BRDY S BRDY
ANT S LAT INF
IMI
ST ST ST
1st 2nd II 2nd II 3rd
LBBB
RBBB LBBB
PVC
ON OFF
Press to power-on and to power-off.
LOW
LOW BATT
BATT
Red indicator illuminates when ba ery
should be replaced.
DEFIB
DSCHG
DEFIB DSCHG
Green indicator illuminates for two
seconds when discharge is delivered
from defib set to 50J or more.
convert
convert
When enabled, a pre-selected rhythm
becomes the running rhythm when a
defib delivers 50J or more.
PACER PULSE
Brightness indicates pacing capture
PACER
level selected.
PULSE
capture
Selects capture current levels:
capture
70, 80, 90 and 100 mA and "ignore".
OPERATING INSTRUCTIONS
Controls and Indicators . . . . . . . . . . . . . . . .
Rhythms for Defibrillator Training . . . . . . . . . .
ST Segment and T Wave Abnormali es . . . . . .
Defibrillator Exercises . . . . . . . . . . . . . . . .
External Pacing Exercises . . . . . . . . . . . . . .
Ba ery Saver Feature . . . . . . . . . . . . . . . .
IBP Waveform Op on . . . . . . . . . . . . . . . .
Service . . . . . . . . . . . . . . . . . . . . . . . . .
convert
When enabled, a pre-selected rhythm becomes the running rhythm,
when a defib delivers 50J or more.
1. Press convert key. The indicator of the running rhythm
pulses brighter.
2. Press key of the waveform to run a er the defib discharge.
3. Deliver discharge from defib set to 50J or more.
The pre-selected rhythm is now the running rhythm.
To cancel a convert opera on before its completed, press either the
convert key or the key of the running rhythm. If a convert opera on is
started but not completed in two minutes, it will cancel automa cally.
capture
When the pacer's current and rate are properly adjusted, paced beats
are displayed and the PACER PULSE indicator blinks off with each
pacer pulse detected.
Press capture key to select one of five pacing capture levels: 70, 80,
90 and 100 mA, or "ignore". Brightness of PACER PULSE indicates
the level selected. At 70 mA, the brightness is lowest. At 100 mA,
the brightness is highest. When the PACER PULSE indicator is off,
"ignore" is selected and the simulator won't respond to pacer pulses.
At power-on, the default pacing capture level is 70 mA.
