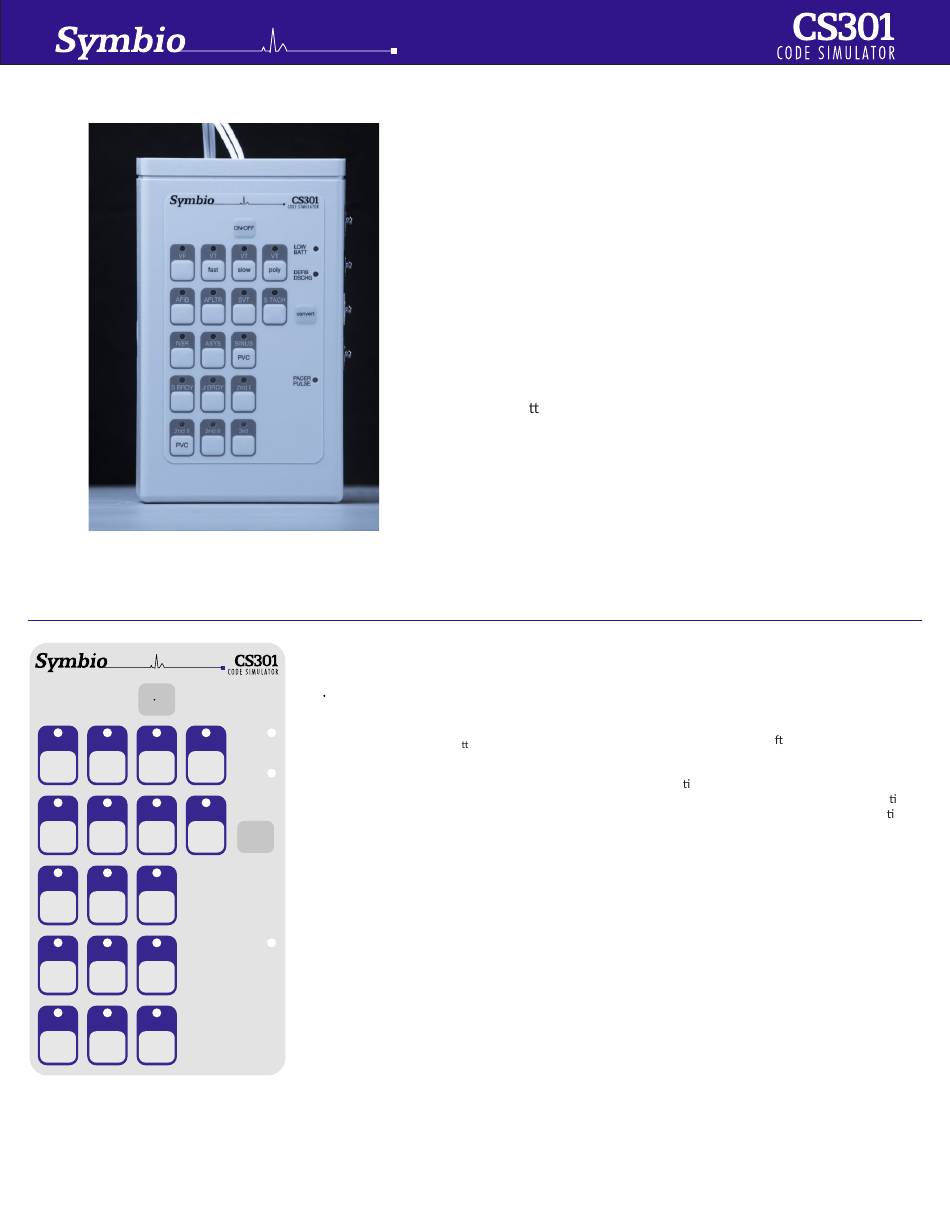

symbio CS301 Operating Instructions

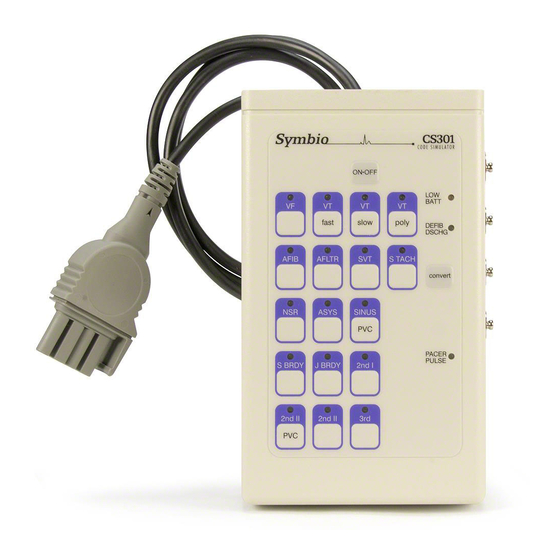

Controls and Indicators
ON OFF
VF VT VT VT
fast slow poly
AFIB AFLTR SVT S TACH
NSR ASYS SINUS
PVC
S BRDY J BRDY 2nd I
2nd II 2nd II 3rd
PVC
ON OFF
Press to power-on and to power-off.
LOW
LOW BATT
BATT
Red indicator illuminates when ba ery
should be replaced.
DEFIB
DEFIB DSCHG
DSCHG
Green indicator illuminates for two
seconds when discharge is delivered
from defib set to 50J or more.
convert
convert
When enabled, a pre-selected rhythm
becomes the running rhythm when a
defib delivers 50J or more.
PACER PACER PULSE
PULSE
Brightness indicates pacing capture
level selected.
OPERATING INSTRUCTIONS
Controls and Indicators . . . . . . . . . . . . . . . .
Rhythms for Defibrillator Training . . . . . . . . . .
Rhythms for External Pacer Training . . . . . . . .
Defibrillator Exercises . . . . . . . . . . . . . . . .
External Pacing Exercises . . . . . . . . . . . . . .
Ba ery Saver Feature . . . . . . . . . . . . . . . .
Service . . . . . . . . . . . . . . . . . . . . . . . . .
convert
When enabled, a pre-selected rhythm becomes the running rhythm,
when a defib delivers 50J or more.
1. Press convert key. The indicator of the running rhythm
pulses brighter.
2. Press key of the waveform to run a er the defib discharge.
3. Deliver discharge from defib set to 50J or more.
The pre-selected rhythm is now the running rhythm.
To cancel a convert opera on before its completed, press either the
convert key or the key of the running rhythm. If a convert opera on is
started but not completed in two minutes, it will cancel automa cally.
capture
When the pacer's current and rate are properly adjusted, paced beats
are displayed and the PACER PULSE indicator blinks off with each
pacer pulse detected.
Press capture key to select one of five pacing capture levels: 70, 80,
90 and 100 mA, or "ignore". Brightness of PACER PULSE indicates
the level selected. At 70 mA, the brightness is lowest. At 100 mA,
the brightness is highest. When the PACER PULSE indicator is off,
"ignore" is selected and the simulator won't respond to pacer pulses.
At power-on, the default pacing capture level is 70 mA.
