Page 3: Quick Start

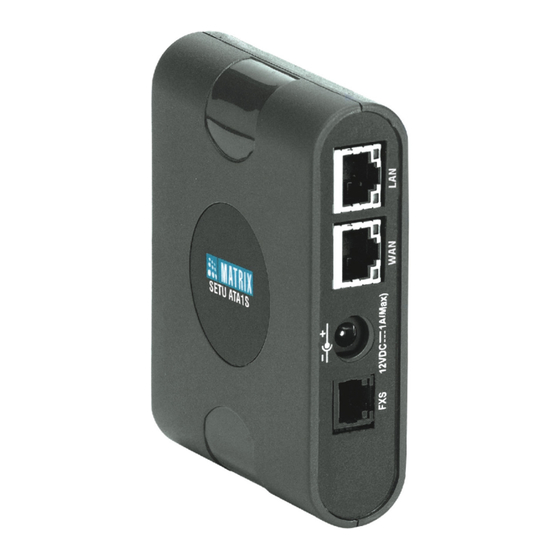

SETU ATA1S VoIP-FXS Adaptor Quick Start Package Contents • SETU ATA1S • Adapter 12V, 1 Amp • Ethernet Cables • Two wall mounting screws and wall grips • Warranty Card • Quick Start and User Card • CD (System Manual, Quick Start and User Card) - Page 4 Select an appropriate site and mount SETU ATA1S. Do not install the device at the places where shocks or vibrations are frequent or strong. Use only the power adapter provided with the SETU ATA1S package. Using an alternative power adapter may damage the unit.
- Page 5 The default Subnet Mask of the LAN Port of SETU ATA1S is: 255.255.255.0 • Make sure your PC is in the same Subnet as the LAN Port of SETU ATA1S. Change the Subnet Mask of the PC, if necessary. •...
- Page 6 The Login page opens. You can also use the WAN Port of SETU ATA1S to access the embedded web server in the same manner. The default IP Address of the WAN Port of SETU ATA1S is: 192.168.001.191 The default Subnet Mask of the WAN Port of SETU ATA1S is: 255.255.255.0 SETU ATA1S offers two Login modes: Admin and User.
- Page 7 • Click Login button. • On successful login, the Home page will open. The links Basic Settings, Advanced Settings, Supplementary Services, and Status, appear on the left pane. Basic Settings are sufficient to get your SETU ATA1S into operation. http://ArtTel.ru...
- Page 8 To set up and operate your system, quickly, • Click Basic Settings link. The links to the different basic parameters appear on the left pane. You may either use the Wizard to guide you through the configuration or selectively configure the Basic Settings pages. When you use the Wizard, •...
- Page 9 When you use selective configuration, • Click Basic Settings link to expand. • Click each parameter link, Region, SIP, FXS, Passwords, Network. The selected parameter page opens. • Set the desired values on the page. • Click Submit to save your settings on the page. Read the System Manual for detailed instructions.
- Page 10 http://ArtTel.ru...
- Page 11 http://ArtTel.ru...
- Page 12 MATRIX COMSEC PVT. LTD. Corporate Office: 394-GIDC, Makarpura, Vadodara - 390010, India. Tel.:+91 265 2630555, Fax: +91 265 2636598 E-mail: Info@MatrixComSec.com Factory: 39-GIDC, Waghodia - 391760, Dist. Vadodara, India. Tel.: +91 2668 262056/57 Technical Support: Tel.: +91 2668 263172/73, Fax: +91 2668 262631 E-mail: Support@MatrixComSec.com...
