Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1.
Do not have camera immersed in water.
2.
Do not disassemble it or place it on an unstable base.
3.
Do not touch the surface of CCD sensor by hand directly.
4.
Never face the camera toward the sun.
5.
Use proper power source otherwise the camera will not function correctly.
6.
Use the camera at temperatures within -10°C~50°C (14°F~122°F) and humidity between
20%~ 80%. The input power source is 12VDC.

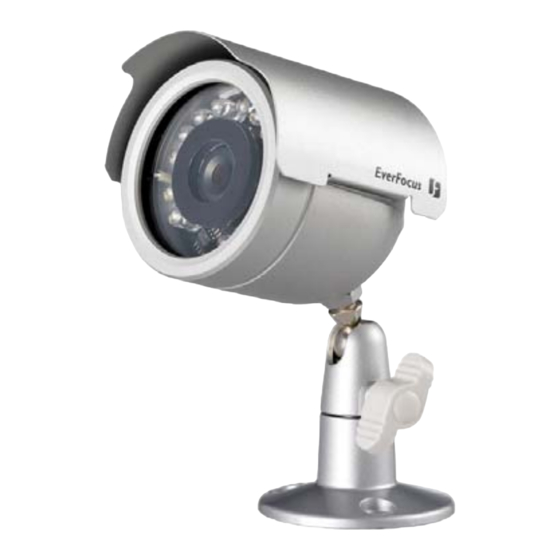

1/3" CCD Outdoor Vari-Frequency IR Camera
Model No.
EVERFOCUS

Operation Instructions

ECZ330E/230E
