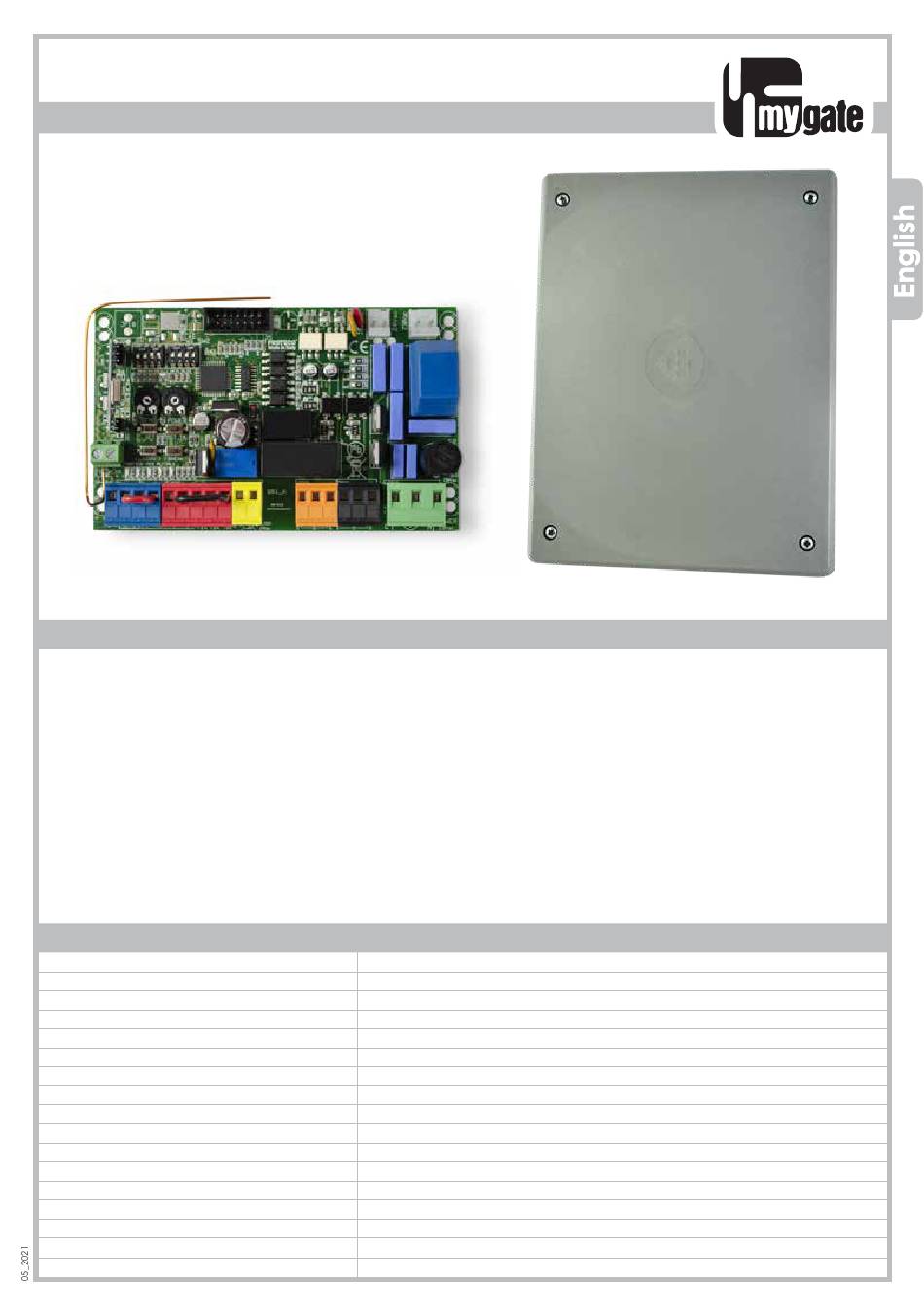

In case you wish to automate a single leaf. Gate be extremely careful to sections marked by this symbol Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
1 TO OPEN COMMON THE CONTROL UNIT COMES FROM MANUFACTURER PRE-WIRED AS FOLLOWS CLOSING OPENING PHOTOCELL PHOTOCELL Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
Page 6
Make sure a circuit breaker is properly fitted to the gate electric box. J5 = input for electrolock and second radio channel jacks Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
• If the beam is broken during CLOSING, the gate • If the beam is broken during CLOSING, the gate stops and reverses. stops and reverses. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
Before setting the dip-switch SW1, make sure the power is off. MRX01 Interface SENS POWER SET TX max 1A - 24V Q81A_5_2021 WORK BREAK START STOP PED PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net 230Vac...
Plug the jacks one onto the other as shown in the picture, carefully AUX jack following the slot post. MRX01 slot post Lock jack MEL04 slot post Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
To activate the 8K2 input as safety in opening press SET + SET TX while turning the control panel on. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
4 OFF = Motor and photocell TEST DEACTIVATED ON = Motor and photocell TEST ACTIVATED Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
Page 16
At the endpoint stage during CLOSING and OPENING, the motors press onto the mechanical endstop, cut the thrust, and release a small space between the doors for safety operation. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
- Load within 5 sec. the remote control you wish to store. The control panel has stored the radio code and goes out the programming automatically. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
If power cut occurs, the first START cycle will perform without obstacle detection just to restore properly the standard operation of the gate. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
If adjustments are needed, turn SENS clockwise (to +) and regulate accordingly. The sensitivity has to be proper in order to prevent uncorrect operation. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
If time settings need to be adjusted go back to programming and repeat the whole programming procedure. Q81A_5_2021 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
TROUBLE SHOOTING – ERROR MESSAGES The control panel is designed to display errors through a LED lighting system. Here below the trouble shooting table. ERROR POSSIBLE CAUSE SOLUTION • Photocell test 2 blinks Check the wiring and operation of the photocell. + blinker stop 2 blinks ..
