Moore 240G Instructions Manual

Moore uni - drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

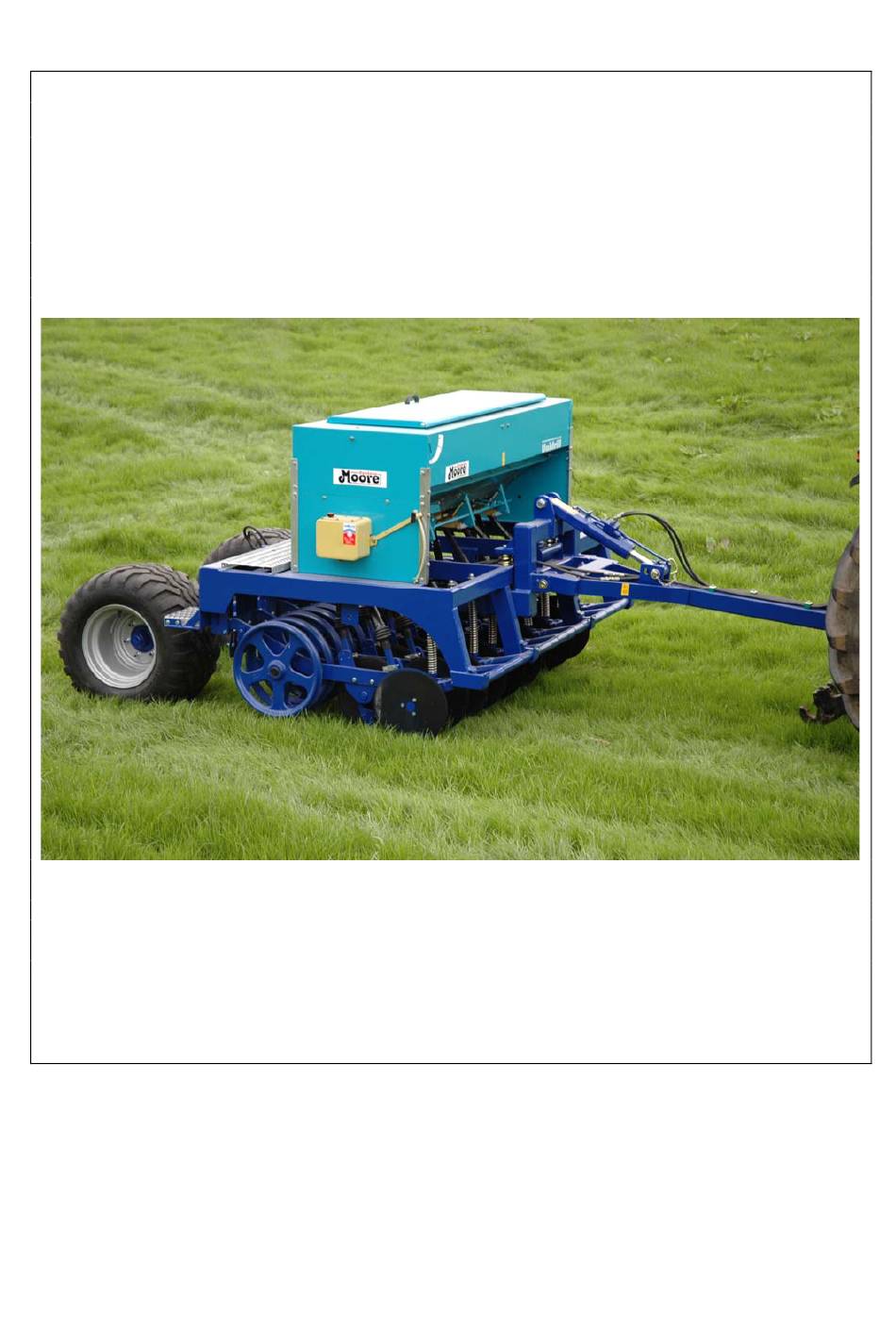

Instructions
Moore Uni - drill
240G / 300G
PLEASE READ CAREFULLY BEFORE USING THE MACHINE
Mar 2007 version 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 240G and is the answer not in the manual?

Questions and answers

Related Manuals for Moore 240G

Summary of Contents for Moore 240G

  • Page 1 Instructions Moore Uni - drill 240G / 300G PLEASE READ CAREFULLY BEFORE USING THE MACHINE Mar 2007 version 1.0...
  • Page 2 Please return the duly completed guarantee form to us. We wish you success with your seed drill. Yours sincerely Sam Moore Managing Director...
  • Page 3 SIGNED:- DAT : - CUSTOMER 1. To be completed, detached and returned to Moore Uni Drill within 14 days of customer receipt / purchase. 2. It is essential that all details be completed. 3. Failure to complete and return this form will prevent claim settlement...
  • Page 4 Directives and Regulations, and has been certified accordingly. The Essential Health and Safety Regulations Directive. 98 – 37 - EC The Proposed Seed Drills Safety Document 2000 (00/714171 DC) Certified on behalf of Moore Uni - Drill Limited James A O’ Kane Technical Engineer...
  • Page 5 Safety / Instruction Decals • These symbols are used in these instructions every time recommendations are provided concerning your safety, the safety of others or the correct operation of the machine. • These recommendations must be given to all users of the machine. GENERAL SAFETY surroundings, particularly...
  • Page 6 Safety / Instruction Decals the ignition and wait until all 1 – When hitching or unhitching 9 – Before engaging power take- moving parts have come to a the machine form the tractor, off, ensure that no persons or standstill. place the control lever of the animals are close to the machine.
  • Page 7 Only use Moore removed from the ignition. spare parts. 2 – Check regularly that nuts and screws are not loose. Tighten if necessary.
  • Page 8 Safety / Instruction Decals Safety Stickers Warning notices relating to safety are affixed to your machine. Their aim is to contribute to your safety and to the safety of others. Know their contents and check their location. Review the safety notices as well as the instructions contained in this operating manual. If any safety notices become illegible or lost they should be replaced.
  • Page 9 Safety / Instruction Decals Safety Stickers...
  • Page 10 Safety / Instruction Decals...
  • Page 11 Safety / Instruction Decals...

  • Page 13: Table Of Contents

    Contents Start Up Pages Technical Specifications Operator Check List Hitching Transport Hydraulic Connections Settings Distribution 19 - 24 Sowing Depth Coulter Adjustment Half Width Shut Off Maintenance Wear Check Seed Distribution Greasing and Lubrication Practical Recommendations 31 – 35 Flow Rate & Calibration Procedure 36 –...

  • Page 14: Start Up

    Start Up A : Technical Specifications When accepting ownership of your machine, note the following information: Serial Number: _____________________ Type of machine:______________________________________________ Accessories: _________________________________________________ MOORE 240G Uni-Drill 300G Uni-Drill UNIDRILL Width Number of rows Row spacing 13.3 13.3 (cm) Width in...

  • Page 15: B Operator Check List

    Start Up B : Operator Check list It is the owner / drill operators’ responsibility to set up the drill for: 1. Sowing depth according to conditions in each soil type and pre worked condition 2. Tramline bout number to suit tramlines 3.

  • Page 16: C Hitching

    Start Up C : Hitching Position 1 Position 2 • To unhitch, set the machine with the transport wheels resting on the ground • Beware of the drawbar motion Hitching height The height of the hitching point greatly influences the performance of the device (+/- 450 mm). The hitching point must be fixed.

  • Page 17: D Transport

    Start Up D : TRANSPORT Users must scrupulously observe traffic regulations on open roads. Travel only with an empty hopper. Users must also use the transport pins when making adjustments to the drill TRANSPORT SPEED Important: Do not exceed 25 Kilometers per hour TRANSPORT •...

  • Page 18: E Hydraulic Connections

    Start Up E : HYDRAULIC CONNECTIONS HYDRAULIC CONNECTIONS • Double-action hydraulic system to lift the seed drill. • Double-action hydraulic system for depth control • Single-action hydraulic system controlling side-markers and tramlining system. • Install the hydraulic hoses on support (2) •...

  • Page 19: Settings

    Settings A : Distribution Settings Follow the setting instructions Distribution shutter. Raise or lower the shutter (1) according to the recommendations. Insert the spring (2) into the appropriate catch. 3 opening positions are available for the shutter. Marker 0. Closed (when sowing every 2nd row for instance). 1.
  • Page 20 Settings A: Distribution Settings Follow setting instructions. Selecting the peg wheel • (1) standard wheel for cereal and large seeds. • (2) fine wheel for small seeds • Take hold of the pin located on the shutter of the first unit to the right. •...
  • Page 21 Settings A : Distribution Settings Very precise sowing requires a calibration test. Make sure your scales are accurate Setting up the calibration test Preparing the calibration test • Use accurate scales and a container. • Before carrying out the test, check that no-one is standing near the seed drill except the operator. Procedure •...
  • Page 22 Settings A : Distribution Settings Size (metres) 2.40 3.00 Turns 62.5...
  • Page 23 After sowing a hectare, carry out a further check (proceed as above from step 5). Drill Width (Metres) Number of turns with the crank 240G 62.5 300G Checking the distribution system Distribution of seed to the seed tubes should be checked at regular intervals through out the day, for example every hour.
  • Page 24 Settings A : Distribution Settings SLIDE RULER Test using the slide ruler • This slide ruler enables you to determine the new variator index after the first flow rate test. • Adjust distribution settings and carry out a test according to the recommendations contained in the preceding pages.

  • Page 25: B Sowing Depth

    Settings • If you want to change the rate/ha with the same seed but on another plot, use the slide rule to determine the new variator index from the weight value of the first flow rate test. B : Sowing Depth Depth Scale Depth Segments The hitching height and drawbar locking position affect the depth setting’s choice.

  • Page 26: C Coulter Adjustment

    Settings C : COULTER ADJUSTMENT 12mm for conventional sowing 25mm for high trash residue in hard soils 40 mm for high trash residue in Coulter adjustment a) Adjusting coulter height: The tip of the coulter is approximately 20 mm above the disc edge for drilling in high trash volumes, it should be set 12mm above the disc edge, when being used in conventional seed beds.

  • Page 27: D Half Width Shut Off

    Settings : Half Width Shut off It is important that the hopper is emptied after sowing to avoid any damage caused by rodents SETTINGS Disengaging half the seed drill (1/2 width shut off) - The central coupling between the distributor half-shafts can be uncoupled in order to match the current tramlining setting.

  • Page 28: Maintenance

    Tighten the ¾” UNF Flange nut with a torque wrench, After 20 hours of operation : Check the tightening of the main nuts. Periodically check wheel rim tightening and tyre pressure: Tyres – 10.5 x 15 (240G) : 2 bar - 19.0/45-17 (300G) : 1.5 bar...

  • Page 29: B Seed Distribution

    Maintenance B : Seed Distribution f) Metering devices Never leave seed for any length of time in the hopper Open shutters (1) and flaps (2) during the storage period Never lubricate or grease metering devices and seed pips Checks – Incorrect setting of flaps (2) may induce oversowing in the course of work. It is recommended to check and adjust if necessary after each sowing period- -Set the flap lever to index 1 -Begin with visually assessing the distance between the flap and the peg...

  • Page 30: C Greasing And Lubrication

    Maintenance C : Greasing and Lubrication Never grease the metering devices or the coulter tubes. • Lubricate the sowing equipment regularly at the beginning and end of the sowing campaign • Oil distribution chains • Check variator oil level [horizontal seed drill],top up the red dot with ATF – DEXTRON II D •...

  • Page 31: Practical Recommendations

    Protective covers which are prone to wear should be checked regularly. Replace immediately if damaged. Spare parts must conform to the manufactures specification. Only use genuine Moore parts. Before working on any electrical circuit disconnect the power source. Repairs carried out on parts under tension or pressure (springs or components under pressure etc) require specialist knowledge and tooling so should only be carried out by qualified personnel.
  • Page 32 Practical recommendations FIELD OPERATION Do not turn sharp corners with the Uni-Drill especially in direct drilling operations as this will give massive disc to soil side thrust. When this happens the disc is parted from the seed coulter and trash can then enter between them resulting in blockage to the seed flow.
  • Page 33 Practical recommendations DRILLING INTO STRAW INCORPORATED SOIL AND TRASHY CONDITIONS In heavy trash conditions it may be necessary to raise the tip of the seed tube coulter so that the disc will cut through the trash before the coulter opens the slit. In heavy maize trash, especially in the direct drill or no-till situation, it may be necessary to raise the tip of the seed tube coulter 30 to 40 mm above the edge of the disc.
  • Page 34 Practical recommendations HOW TO PREVENT COMPACTION 1. Generalise the use of low-pressure tyres on field equipment to restrict surface compaction. Fitting wide tyres or twin wheels is not enough; pressure has to be adapted. The target is 0.6 bar, in agreement with the tyre manufacturer. When in tow, UNIDRILL does not load the rear wheels of the tractor and weights are not needed in the front! 2.
  • Page 35 Practical recommendations HOW TO FIGHT WEED Setup conservation tillage only in clean plots In particular, perennial weeds should be controlled during the preceding crop. Plan fighting weed within the cropping cycle. Alternate cereals with dicotyledon plants (peas, rape, beet…) as well as winter and spring crops. Take advantage of dicotyledon crops to take effective action against graminaceous weed, and of cereal crops to destroy dicotyledons.

  • Page 36: Flow Rate & Calibration Procedure

    Flow Rate Tables & Calibration Procedure FLOW RATE TABLES • Wheat • Rapseed – Barely – Peas – Field peas • Oats – Mustard – Phacelia – Radish • Alfalfa – Linseed – Ray-grass – Clover...
  • Page 37 Flow Rate Tables & Calibration Procedure...
  • Page 38 Flow Rate Tables & Calibration Procedure...
  • Page 39 Flow Rate Tables & Calibration Procedure...
  • Page 40 Flow Rate Tables & Calibration Procedure...

  • Page 41: Warranty

    Warranty In this warranty Moore Uni-Drill is referred to as the Company. Subject to the provisions of this warranty the Company Warrants each new machine sold by it to be sold free from any defect in material or workmanship. If the machine or part there of supplied by the Company is not in accordance with the warranty given in clause 1 the Company will at its option;-...
  • Page 42 Moore Uni-drill. Hints and guide lines are to be regarded as general advice, entailing no responsibility whatsoever on the part of Moore Uni-drill and / or its representatives. All responsibility for usage, road transport, maintenance and repair of the drill rests with the owner/driver.
  • Page 43 Grassland Parts booklet 2007 grassland seeding line...
  • Page 44 Part Description 570008 Tandem Swinging Arm 720002 Pivot Arm Bushes 020154 Classic Pivot Arm Pin 140090 Grease Nipple 010023 1” UNF Slim Binx Nut 020080 Classic Drag Arm Bar 140070 ½” x 1 ¾” Spirol Pin 140030 M12 Nyloc 680001 Dust Cap 140143 ¾”...
  • Page 45 Grassland Main Chassis...
  • Page 46 ITEM PART No: DESCRIPTION 318-1034 Drive Wheel Spacer 319-1234 Pivot Bracket. Washer 340-1034 Chainguard — Lower S900594 16T Double Drive Sprocket 344-1034 20T Drive Sprocket 348-1034 Connecting Link DC-5/8-02 Drive Chain Lower 66 Links DC-5/8-01 Drive Chain Upper 58 Links A106 M20 X 70 Bolt A111...
  • Page 47 ITEM PART No: DESCRIPTION ITEM PART No: DESCRIPTION S900052 Spring Holding Plate S571458 M8 Locknut S900045 Ram Holding Plate S540855 M8 X 15 Screw A207A Seed Box 4m S900489 Seed Feeding Unit A206A Seed Box 3m S907381 Feed Trap Shutter S901578 U Bolt Clamp S985209...
  • Page 48 ITEM PART No DESCRIPTION ITEM PART No DESCRIPTION S910221 Variator 2 S732001 Circlip 2.65 X 15.1 S553612 Allen Screw 6 X 12 S922029 Plateau Shaft S573107 Washer M6 S981008 Lever Spring S571206 Nut M6 S910239 Freewheel Assembly S795060 Oil Filter Plug S914022 Cam Lever S751005...
  • Page 49 ITEM PART No DESCRIPTION S907381 Feed Trap Shutter S909068 Feed Trap Spring S901539 Standard Seed Wheel S901538 Fine Seed Wheel S985209 Skid Flap S525895 M8 X 45 Screw S571806 M8 Nut S909081 Skid Flap Spring S904599 Skid Flap Support S985210 Rape Shutter S711008 Distribution Shaft Bearing...
