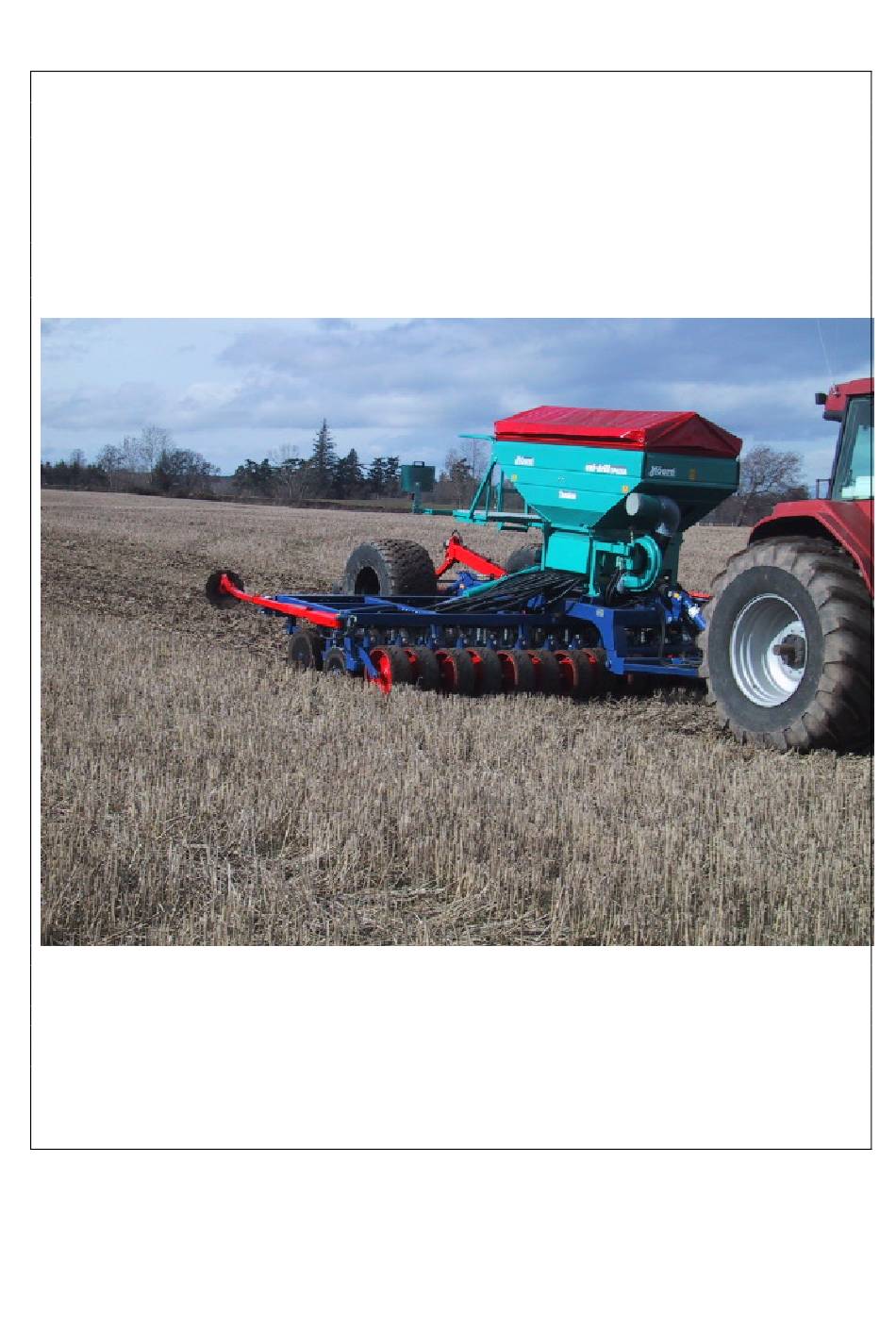

Tandem Uni - drill
DP400A / DP600A
PLEASE READ CAREFULLY BEFORE USING THE MACHINE
June 2005 stdpa version 2.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tandem Uni-Drill DP400A and is the answer not in the manual?

Questions and answers

Related Manuals for Moore Tandem Uni-Drill DP400A

Summary of Contents for Moore Tandem Uni-Drill DP400A

  • Page 1 Instructions Tandem Uni - drill DP400A / DP600A PLEASE READ CAREFULLY BEFORE USING THE MACHINE June 2005 stdpa version 2.0...
  • Page 2 Please return the duly completed guarantee form to us. We wish you success with your seed drill. Yours sincerely Sam Moore Managing Director...
  • Page 3 SIGNED :- DATE : - CUSTOMER 1. To be completed, detached and returned to Moore Uni Drill within 14 days of customer receipt / purchase. 2. It is essential that all details be completed. 3. Failure to complete and return this form will prevent claim settlement...
  • Page 4 Directives and Regulations, and has been certified accordingly. The Essential Health and Safety Regulations Directive. 98 – 37 - EC The Proposed Seed Drills Safety Document 2000 (00/714171 DC) Certified on behalf of Moore Uni - Drill Limited James A O’ Kane Technical Engineer...
  • Page 5 Safety Regulations • These symbols are used in these instructions every time recommendations are provided concerning your safety, the safety of others or the correct operation of the machine. • These recommendations must be given to all users of the machine. surroundings, particularly transport position, in accordance...
  • Page 6 Safety Regulations 25 – Before climbing down from and the direction of rotation of the tractor, before power take-off, comply with the HITCHING operation on the machine, turn off manufacturer’s instructions. 9 – Before engaging power take- the engine; remove the key from 1 –...
  • Page 7 Only use Moore removed from the ignition. spare parts. Danger A = Risk of crushing B = Marker operating zone C = Moving parts...
  • Page 8 Safety Regulations Safety Stickers Warning notices relating to safety are affixed to your machine. Their aim is to contribute to your safety and to the safety of others. Know their contents and check their location. Review the safety notices as well as the instructions contained in this operating manual. If any safety notices become illegible or lost they should be replaced.
  • Page 9 Safety Regulations Safety Stickers...

  • Page 10: Table Of Contents

    Tramline Track Width Maintenance Wear Check Seed Distribution Greasing and Lubrication Optional Equipment Multiplier Flexible Agitator Pre Emergence Marker Moore Headland Control 38-46 Practical Recommendations 47 – 48 Flow Rate & Calibration Procedure 49 - 55 Warranty 55 - 56...

  • Page 11: Start Up

    Start Up A : Technical Specifications When accepting ownership of your machine note the following information: Serial Number:_____________________ Type of machine__________________________________________________________ Accessories: _________________________________________________________ MOORE UNIDRILL DP400A DP600A Width Number of rows Row spacing (cm) 16.6 16.6 Width in transport Hopper capacity...

  • Page 12: B Operator Check List

    Start Up B : Operator Check list It is the owner / drill operators responsibility to set up the drill for: 1. Sowing depth according to conditions in each soil type and pre worked condition 2. Tramline bout number to suit tramlines 3.

  • Page 13: C Hitching

    Start Up C : Hitching If possible use the pickup hitch • To unhitch, set the machine with the transport wheels resting on the ground • Beware of the drawbar motion 1 Hitching height The height of the hitching point greatly influences the performance of the device (+/- 450 mm). The hitching point must be fixed.

  • Page 14: D Transport

    Start Up D : TRANSPORT Users must scrupulously observe traffic regulations on open roads. Travel only with an empty hopper. Users must also use the transport pins when making adjustments to the drill Important: Do not exceed 25 Kilometers per hour TRANSPORT SPEED TRANSPORT •...

  • Page 15: E Hydraulic Connections

    Start Up E : HYDRAULIC CONNECTIONS Pressure lines will have a RED cap Return lines will have a BLUE cap Hydraulic connections • 1 Double-action spool valve to operate valve block • 1 Motor spool valve for hydraulic fan, c/w free flow back to tractor •...

  • Page 16: F Hopper Cover

    Start Up F : HOPPER COVER • Ensure that sieve (1) is in place in the bottom of the hopper bottom. • Operate with tarpaulin (2) sealed.

  • Page 17: G Turbine

    Start Up G : TURBINE...
  • Page 18 Start Up G : Turbine – Operating Instructions 1) Mechanical • Use the 1000 RPM power take-off • Maintain tractor engine rate during work • Do not engage the PTO on full load 2) Hydraulic a) Specification Warning and reminder: a number of checks need to be made on the tractor when using the hydraulic turbine drive system.
  • Page 19 8) When putting into service for the first time, the number of revolutions must be corrected between start-up (cold oil) and normal operation (warm oil) The turbine speed is checked on the Moore Tronic unit. 9) Tractor connection The fan rate can be adjusted with the tractor-metering device regulating valve.

  • Page 20: Settings

    Settings A : Distribution Settings FOLLOW SETTING INSTRUCTIONS 1) Distribution shutter • Raise or lower shutter (1) according to recommendations. 2) Clip spring (2) in the corresponding notch • It is a three-position shutter • Index 0) Closed (e.g. sowing every other row 1) Small seed <8 kg/ha 2) Large seed 3) Flap...
  • Page 21 Settings A: Distribution Settings Follow setting instructions. Store rape shutters in a dry place and away from any deterioration risks 4) Selecting the peg wheel • Rape Shutter fitting is to be carried out: - with the hopper empty - shutters to position 2 - flaps to maximum opening position a) Engage plug (1) on the peg wheel so as to cover it b) Rotate...
  • Page 22 Settings A : Distribution Settings For very accurate sowing, a flow rate test must be carried out. Check the precision of your scales. Setting up the calibration test • Use accurate scales and a container. • Before carrying out the test, check that there is no-one around the seed drill. •...
  • Page 23 Settings A : Distribution Settings...
  • Page 24 Settings A: Distribution Settings Carrying out the calibration test 1) Fixed unit test Set the distribution as indicated in the manual (plugs, baffle, plate, shutters etc.). Put the grain in the seed box on the day of sowing (5 kg of rape, 150 kg of cereal) and carry out the following test.
  • Page 25 Settings A : Distribution Settings SLIDE RULER Test using the slide ruler • This slide ruler enables you to determine the new variator index after the first flow rate test. • Adjust distribution settings and carry out a test according to the recommendations contained in the preceding pages.

  • Page 26: B Sowing Depth

    Settings B : Sowing Depth Seeding depth can be changed by changing the position of the depth clips By moving depth clips from the ‘A’ side to the ‘B’ side and vise versa the seeding depth can be adjusted ‘A’ side ‘B’...

  • Page 27: C Weight Transfer

    Settings C : Weight Transfer Using the front ram, it is possible to transfer weight, onto the front or rear press wheels, this is done by inserting stroke control segments onto the front ram to limit its stroke. Using the stroke control segments here, to vary the front ram stroke...

  • Page 28: D Coulter Adjustment

    Settings D : COULTER ADJUSTMENT 12mm for conventional sowing 25mm for high trash residue in hard soils 40 mm for high trash residue in soft soils Coulter adjustment a) Adjusting coulter height: The tip of the coulter is approximately 20 mm above the disc edge for drilling in high trash volumes, it should be set 12mm above the disc edge, when being used in conventional seed beds.

  • Page 29: E Markers

    Operation of markers using Moore headland Control See page 46 for operation of markers on the Moore Headland control The markers should be operated in a gentle manner, beware of obstacles when drilling, turning at the headlands should be carried out with the markers in the...

  • Page 30: F Half Width Shut Off

    Settings F : Half Width Shut off The hopper must be emptied after work, to avoid rodent damage. c) Half-seed drill disengagement Only the right side is declutchable. Remove the clip. Pull lever (1) and put clip (2) back in place. After completing your ½...

  • Page 31: G Electronic Tramlines

    Settings G : Electronic Tramlines See page 41 to set tramline rhythm on the Moore Headland Control The electronic tramliner disengages 2 or 4 seed flow outlets to form tramlines to facilitate further crop treatments The table below shows typical tramline rhythms for different widths of tramline bouts...

  • Page 32: H Tramline Track Width

    Settings H : Tramline Track Width...

  • Page 33: Maintenance

    Maintenance A : Wear Check These checks should be regularly repeated, especially when the seed drill has been used on hard or stony soil. e) Checks Wear check - of coulters (1) Coulters are the essential furrowing part and must retain aggressive shape. Coulters can be rebuilt with suitable welding rods before wear becomes too pronounced.

  • Page 34: B Seed Distribution

    Maintenance B : Seed Distribution f) Metering devices Never leave seed for any length of time in the hopper Open shutters (1) and flaps (2) during the storage period Never lubricate or grease metering devices and seed pips Checks – Incorrect setting of flaps (2) may induce oversowing in the course of work. It is recommended to check and adjust if necessary after each sowing period- -Set the flap lever to index 1 -Begin with visually assessing the distance between the flap and the peg...

  • Page 35: C Greasing And Lubrication

    Maintenance C : Greasing and Lubrication • Lubricate the sowing equipment regularly at the beginning and end of the sowing campaign • Grease the front Otico press wheels every 120 hours • Lubricate markers every 20 hours • Oil tramline springs with spray releasing oil •...

  • Page 36: B Flexible Agitator

    Practical Recommendations A : Multiplier Follow the mounting instructions g) Variator rate multiplier - Multiplier (1) is to be used for high-speed operation (≥ 12 km/h) with high seed rate. Fitting Remove the variator (3 screws accessible through the hopper) Remove the couplings Fit the multiplier from the outside Check alignment and tighten the multiplier and variator securing screws.
  • Page 37 Practical Recommendations C : Pre – Emergence Marking • Pre – Emergence discs operate simultaneously with post – emergence marking out. (Tramlines) • The marking out track must match that of the disengaged rows • Ground marking is adjusted by letting the discs “catch” more or less soil. It is recommended to let the disc “catch in the edge of the first seeded row, so as to project soil...

  • Page 38: C Pre Emergence Marker

    Practical Recommendations Practical Recommendations HOW TO PREVENT COMPACTION 1. Generalise the use of low-pressure tyres on field equipment to restrict surface compaction. Fitting wide tyres or twin wheels is not enough; pressure has to be adapted. The target is 0.6 bar, in agreement with the tyre manufacturer. When in tow, UNIDRILL does not load the rear wheels of the tractor and weights are not needed in the front! 2.
  • Page 39 Practical Recommendations Plough up stubble early to restrict slug feeding sources. Work surface soil rather finely and press to upset and make slugs uncomfortable. Keep soil clean by mechanical and chemical destruction and sow early. Detect the presence of slugs upon the first rainfall and set traps. Sow a little deeper and under fast-emergence conditions.

  • Page 40: Flow Rate & Calibration Procedure

    Flow Rate Tables & Calibration Procedure A : Reminder of Pre Settings Table settings are merely indicative. Check you flow rate/ha. REMINDER OF PRE-SETTINGS [1] Shutters (3 positions) [2] Flap (6 positions) [3] Turbine (5 positions) [4] Pegs (2 positions) [5] Variator (Indices 0 - 90) FLOW RATE TABLES •...
  • Page 41 Flow Rate Tables & Calibration Procedure...
  • Page 42 Flow Rate Tables & Calibration Procedure...
  • Page 43 Flow Rate Tables & Calibration Procedure...
  • Page 44 Flow Rate Tables & Calibration Procedure...
  • Page 45 Flow Rate Tables & Calibration Procedure...

  • Page 46: Warranty

    Warranty In this warranty Moore Uni-Drill is referred to as the Company. Subject to the provisions of this warranty the Company Warrants each new machine sold by it to be sold free from any defect in material or workmanship. If the machine or part there of supplied by the Company is not in accordance with the warranty given in clause 1 the Company will at its option;-...
  • Page 47 Tandem Uni – drill. Hints and guide lines are to be regarded as general advice, entailing no responsibility whatsoever on the part of Moore Uni drill and / or its representatives. All responsibility for usage, road transport, maintenance and repair of the drill rests with the owner/driver.
  • Page 48 DP400A and DP600A Parts booklet 2002 seeding line...
  • Page 49 Part Description 010015 M20 Recessed Binx Nut 210007 Outer Washer 210006 Spacer Tube 210004 Farm flex Wheel Bearing 210002 Farm Flex Rim 210003 Farm Flex Tyre 010013 Farm Flex Wheel Axle 020005 Front Wheel Carrier 140017 M16 Nyloc Nut 010225 16mm Depth Clip Stopper 550003 ¼”...
  • Page 50 Part No Description 622-0004 6M HP Chassis 621-0004 6m HP wing 126-04 Axle Unit 624-0004 Draw Bar A153 M8 x 40 roll pin A199 1 ¼” x 1” tension bush 128-46 Ram to chassis pin BAC358 Rear Axle Ram 128-46 Ram to chassis pin A101 1”...
  • Page 51 Part No Description 422-0004 6M HP Chassis 421-0004 6m HP wing 126-04 Axle Unit 424-0004 Draw Bar A153 M8 x 40 roll pin A199 1 ¼” x 1” tension bush 128-46 Ram to chassis pin BAC358 Rear Axle Ram 128-46 Ram to chassis pin A101 1”...
  • Page 52 2002 DP600A markers...
  • Page 53 Part No Description 020043 DPA marker Main Arm 140142 M20 x 25 set screw 020044 DPA Marker hinge 140140 M20 half nut 140190 M8 Straight grease nipple 020133 DPA marker hinge pin assy 240003 Devol Drag Arm bush 140190 M8 Straight grease nipple 020068 DP Marker Swivel Pin Assy...
  • Page 54 Marker Circuit Diagram...
  • Page 55 W Seed box hopper extension...
  • Page 56 W Seed box Peg Wheels...
  • Page 57 W Seed box Distributor Assembly...
  • Page 58 W Seed box Distributor Assembly...
  • Page 59 W Seed box Variator Assembly W Seed box Variator Assembly...
  • Page 60 W Seed box half width shut off...
  • Page 61 W Seed box Venturi System...
  • Page 62 W Seed box Drive Wheel Assy...
  • Page 63 W Seed box Wind turbine Assy...
  • Page 64 W Seed box Air Intake...
  • Page 65 W Seed box RDS system...
  • Page 66 W Seed box MS Variable seeding...

This manual is also suitable for:

Tandem uni-drill dp600a
