Summary of Contents for Moore 300G

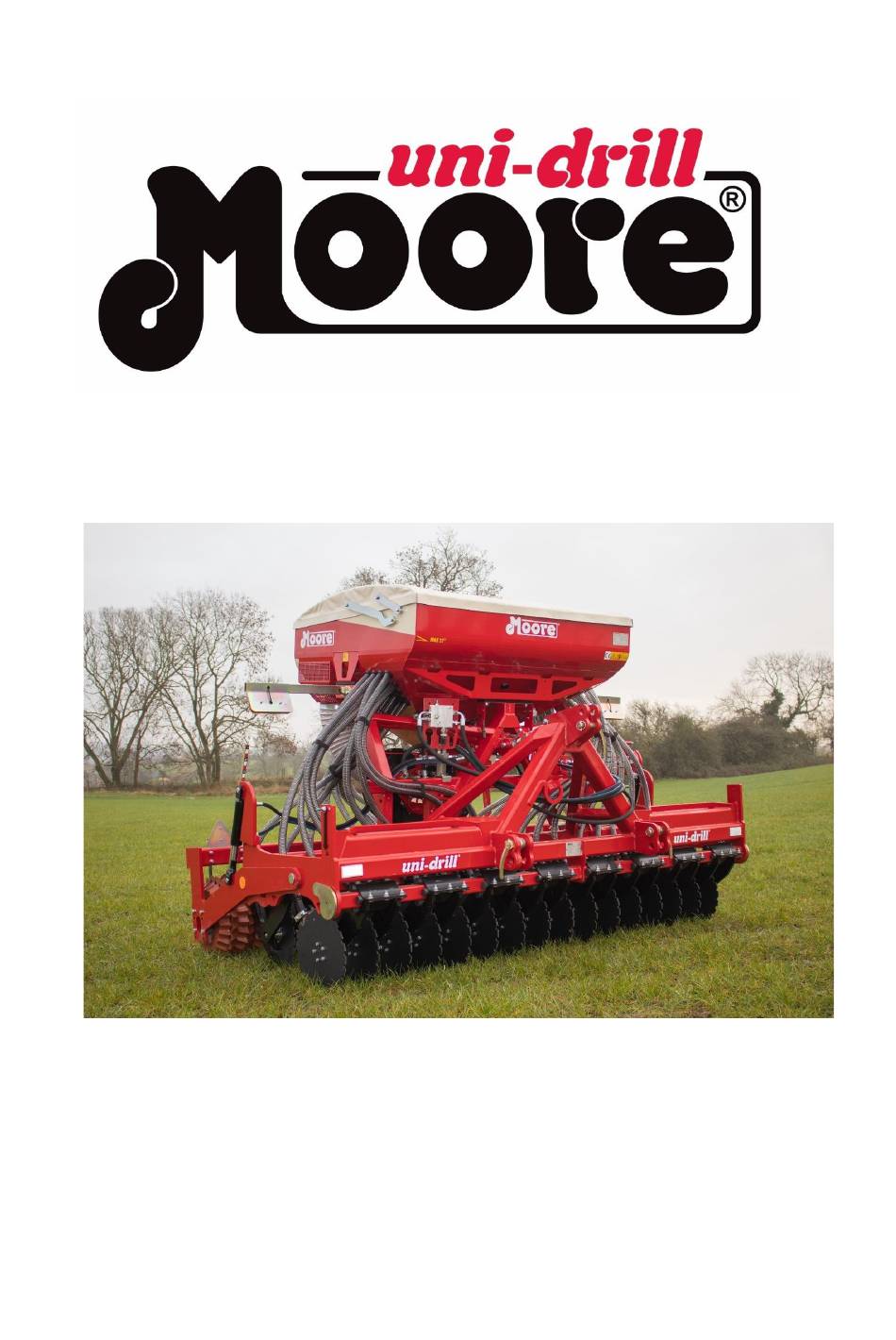

- Page 1 Original Instructions 3.0 MTR MOUNTED MODEL MOORE UNIDRILL 300G, August 2016, S/N 8314- ___________ MOORE UNIDRILL (MANUFACTURING) LTD RANDALLS FARM, SCOTTLETHORPE ROAD, EDENHAM, BOURNE, LINCS. PE10 0LN Phone +44 (0) 2827 66 44444 Email reception@moore-unidrill.com Web: www.moore-unidrill.com...
- Page 2 This way you will avoid accidents, reduce repair costs and downtime and increase the reliability and service life of your seed drill. Pay particular attention to the safety instructions! Moore Unidrill Ltd cannot assume any liability for damage or malfunctions caused by a failure to observe the instructions contained in this operating manual.
- Page 3 The guarantee does not cover the replacement of parts subject to wear. 2. Guarantee claims must be submitted on special Moore Unidrill Ltd claim forms to Moore Unidrill Ltd product support, at PE10 0LN, Bourne. Claims cannot be considered unless the claim form has been completed in full and submitted no later than 3 months after oc- currence of the damage or defect giving rise to the guarantee claim.
-
Page 4: Proper Use
Moore Unidrill drills. Any replacement parts and accessories not supplied by Moore Unidrill have not been tested or approved by us. The installation and/or the use of non-Moore products may under certain circumstances have a negative influence on the given design features of your seed drill and may therefore adversely affect its safe and reliable operation and your safety. -
Page 5: No Liability For Consequential Damage
No liability for consequential damage Even though your Moore Unidrill seed drill has been manufactured with the utmost care and you are using it properly, fluctuations and interruptions in seed delivery may still occur, the possible causes being: • differences in composition of the seed or fertilizer (grain size, density, shape, dressing, treatment) •... -
Page 6: Accident Prevention
Accident prevention Care must be paid not only to the safety instructions contained in this operating manual but also to 'the accident prevention regulations governing the operation of agricultural machinery. Coupling the seed drill to the tractor The work of coupling and uncoupling the seed drill (using the three-point linkage) involves a high risk of injury. -
Page 7: Care And Maintenance
matching colours. Ensure hydraulic fittings are clean and free of grit / mud that could cause damage. Operating the seed drill Prior to start-up and operation, make sure that nobody is standing in dangerous proximity to the seed drill. No persons may ride on the seed drill during operation. None of the prescribed guards supplied with the seed drill may be removed during operation. - Page 8 Description and technical detail. 1. Hopper Access Steps 2. Hand Rail 3. 850L Hopper 4. Tractor Top Link 5. Cat 3 Linkage Mount 6. 1000rpm PTO Drive Fan (*Option Hydraulic) 7. Parking Stand in work position 8. Rear Packer Depth Rams 9.
- Page 9 Setting and using the seed drill Road transport Fit warning signs and the necessary lighting and guards for road transport. Make sure the seed hopper is empty before you proceed to transport your seed drill along the road. The maximum speed at which the seed drill may be transported on the road is 25km/h Retract the Seeding drive wheel and lock it in position.
- Page 10 the shaft, cut the PTO drive shaft guard to size at both ends and then de-burr, clean and grease the protective tubes and the special section tubes. After it has been adapted fit the universal joint shaft. The PTO shaft speed of the tractor must correspond with the maximum permissible rotational speed of the seed drill.
- Page 11 Calibration and sowing operation. Setting the Seed Rate To obtain the desired seed rate, please refer to the seed rate calibration chart, which indicates the settings for medium to large seeds on the left-hand side and fine seeds on the right-hand side.
-
Page 12: Calibration Test
PICT 3 NOTE: Make all the above operations only when the hopper is empty or by rotat- ing the metering system to avoid damages to the unit. By rotating the handle 4, set the reading on the scale to the same number shown in the chart depending on the seed type and rate required. - Page 13 Hydraulic Drive Fan Drills (*Optional) Safety precautions Moore Unidrill does not accept liability for damage due to incorrect usage of the drill to either the drill or tractor. Only trained and competent persons should carry out repair and changes to the...
- Page 14 Product data Chart 2 Product data of hydraulic drive of the fan Working Oil Flow Type Hydraulic motor Width (Rate) Displacement Speed (l/min) Fan Speed (cm3) (rpm) (rpm) 4200 4200 Installation of hydraulic hoses Oil escaping under high pressure can penetrate clothing and skin and causes serious injuries. In case of injury, emergency first aid services should be called.
- Page 15 Connection to the tractor Hyd. fittings and connectors can differ depending on tractor manufacturer. Perform the connections on the tractor in following order: 1. Outlet ( T ) 2. Input ( P ) First putting in operation With first putting in operation, the revolutions have to be adjusted until the hydraulic oil reaches the operational temperature and the fan revolutions are stable.
- Page 16 seed tube coulters, and relieving the blockage with a long screw driver or piece of stiff wire from above. When removing arti cles for service, please observe HSE manual handling guidelines. Common service component weights are listed in the full spare parts list included later in this operating manual. Guttler roller The Guttler roller is self cleaning except at each end, were the hardox scrapers work to clean the back to back 50cm rolls.
- Page 17 MOORE UNIDRILL 300G August 2016 S/N 8314- Guttler roller 1. PA900597 UCF 40mm bearing 2. PA900354 45cm special end Guttler 3. PA900420 Guttler scraper holder 4. PA900595 Guttler hardox scraper 5. PA900464 50cm Guttler 6. PA900331 45cm Guttler 7. PA900892 1472mm shaft to fit 40mm 1.
- Page 18 MOORE UNIDRILL 300G August 2016 S/N 8314- Parts list of common serviceable components. Part No Material Quantity PA900029 Moore Unidrill Peer Hub 5 hole 3/8" UNF PA900775 RH Grass Suspension Unit PA900776 LH Grass Suspension Unit PA900777 RH Arable Suspension Unit...
- Page 19 Part No Material Quantity PA900595 Guttler Hardox Scraper PA900457 Drive Wheel Rest PA900597 Guttler Packer Bearing PA900354 Guttler 45cm End Ring PA900464 Guttler 50cm Ring PA900331 Guttler 45cm Ring PA900892 1472mm Packer Shaft PA900509 1.25" Washer Pin & Split Pin PA900652 1/4"...
- Page 20 August 2016 S/N 8314- Techniques The Moore Unidrill prepares its own mini seedbed by using an angled disc and seed tube coulter tine. All seeds are planted at a constant depth, The points of the Guttler roller slit the ground 305 times per square meter, to give good seed soil contact, however in some conditions another pass with a flat roll is necessary.
- Page 21 A light to medium coat of slurry immediately after seeding (depending on moisture) can be applied providing it contains no effluent or dairy washings. Moore Unidrill cannot be held accountable for off label use of chemicals. Method 4 Early Spring drilling...
- Page 22 MOORE UNIDRILL 300G August 2016 S/N 8314- After silage We prefer to cut the silage first rather than apply glyphosate pre harvest, at the recommended 5 days, as this prevents any wheelings from the sprayer appearing in subsequent crop, also Glyphosate seems more effective on less volume of grass.
- Page 23 In all the above cases use a vigorous quick establishing grass seed mixture up to 35kg/ha. There is no doubt that a blend of 50% perennial Hybrid Tet, 25% Intermediate tet and 25% diploid works best. These are mostly larger seeds with greater energy reserves for coping with adverse situations.
-
Page 24: Eu Declaration Of Conformity
MOORE UNIDRILL 300G August 2016 S/N 8314- EU DECLARATION OF CONFORMITY Declaration No. 300G1 We, the undersigned Moore Unidrill (Manufacturing) Ltd Randalls Farm, Scottlethorpe Road, Edenham, Bourne, Lincs. PE10 0LN Declare under our sole responsibility that the following apparatus: Name: MOORE UNI DRILL... - Page 25 Feb 2021 Appendix to Mounted 300G Instructions 3.0 MTR TRAILED MODEL ____________ MOORE UNIDRILL (MANUFACTURING) LTD RANDALLS FARM, SCOTTLETHORPE ROAD, EDENHAM, BOURNE, LINCS. PE10 Phone +44 (0) 2827 66 44444 Email reception@moore-unidrill.com Web: www.moore-unidrill.com...
- Page 26 Foreword This appendix is to be read and observed in addition to the mounted Seed drill 300G instructions. Trailed Drill Supplement Hydraulic drive is standard on all Trailed Drills. Operating instructions on this can be found in the mounted section and are the same. All coulters and disc assemblies are also the same as the mounted model.
- Page 27 Set the coulter depth by engaging the hydraulic depth control, so the discs are in approx. 25mm for grass seed, and 10-15 mm for clover or other small seeds. This appendix is to be read in addition to the mounted Seed drill 300G instructions. E&OE...
