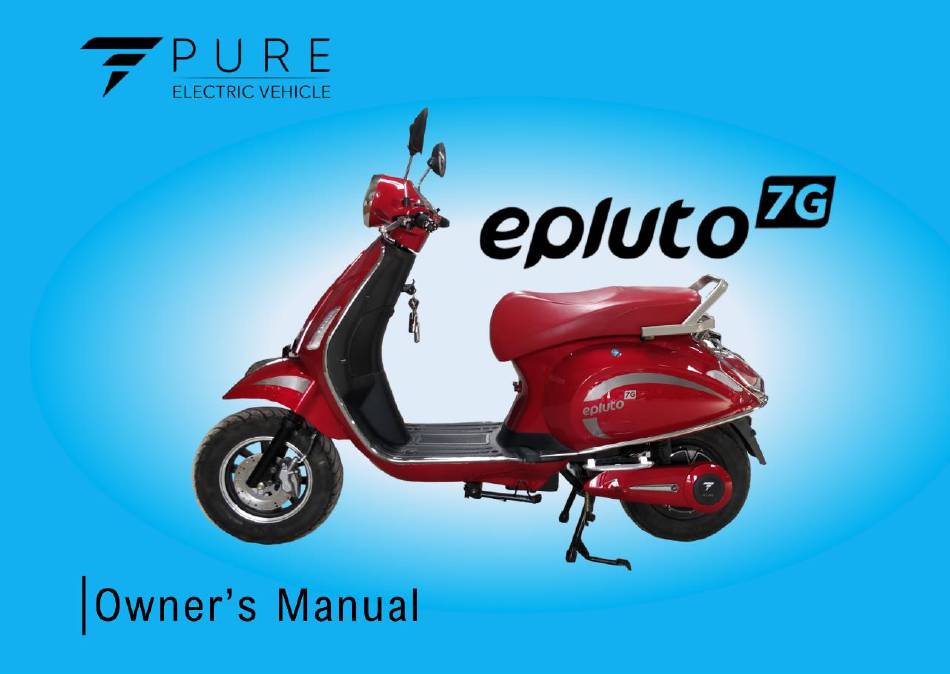

  • Page 1 PURE Electric Vehicle PuR Energy Pvt Ltd...
  • Page 2 Dear Customer, Greetings on purchasing the PURE EPLUTO 7G, India’s premium electric Scooter that is manufactured by PuREnergy Pvt Ltd. Before you begin riding, please go through this manual to familiarize yourself with the mechanism and controls of the EPluto 7G, and with its proper care and maintenance to ensure a long trouble-free ride.
  • Page 3 PURE EV is limited to the cost of repairing or replacing the...

  • Page 4: Table Of Contents

    5 Warranty Policy: Scope of Warranty .... 18 EPluto 7G Kit ............. 1 Smart Lock ............5 6 Mandatory Road Signs ........22 Driving your PURE EPluto 7G: ....... 7 7 Trouble Shooting .......... 23 2 PURE Lithium Battery........9 Critical ..............9 Important ............

  • Page 5: About Epluto 7G

    60 Kmph Top Speed 60 V 20 Tubes Vector Looped Controller Motor: 1.5 KW nominal and 2.2 KW Peak 67.2V, 10A Charger 2.5 KWh Patented High Performance PURE Lithium Battery Comfortable Seat for 2 PAX LED Display Tyre - Front: 90/100-10, Rear: 3.00—10...
  • Page 6 PURE Electric Vehicle Rear View Mirrors Head Light Left Brake Lever Front Number Plate Front Storage Box Smart Keys Front Luggage Hook Side Stand External Charging Port 10. Middle Stand 11. Ladies Footrest (Side Foot Rest) 12. Back Number Plate 13.
  • Page 7 PURE Electric Vehicle Left-Side Handle Controls Right Side Handle Controls Side Indicator Switch Headlight / Back Light (Off/No) Switch Horn Switch Horn Switch High / Low Beam Switch Speed Mode Selection Switch Rear Brake Lever Parking Switch Twist Throttle (Accelerator)
  • Page 8 Battery Level Indicator Left Side Indicator Parking Mode On PURE EV Has integrated additional safety feature of parking mode. The vehicle remains in “Parking Mode” when switched on with the metal key or smart key and the LED status is as show in the figure to the left side. This keeps the vehicle immobile and avoid any unintentional acceleration unless the Parking button is pressed.

  • Page 9: Smart Lock

    Feel modish with the smart locking system for the EPluto 7G. The device allows you to ride your EPluto 7G without any key and is loaded with anti- theft abilities. The transponder that is built into the ignition key carries a unique identification code.
  • Page 10 PURE Electric Vehicle Features Force Panic ON Operation and Automatic Activation of Immobilisation If the vehicle is in running condition and the lock button is pressed, it overrides the key operation and turns the vehicle off (immobilise) triggering an alarm until it is unlocked using the Smart Key.

  • Page 11: Driving Your Pure Epluto 7G

    Take EPluto 7G off the side stand. • Check for the recommended tyre pressure (30-35 psi) for smooth running. • Sit on the EPluto 7G and ensure the battery is charged. • Turn on the Ignition key (Clockwise). • Press the parking button on the right hand side (with “P” symbol).
  • Page 12 PURE Electric Vehicle After Ride • After ride, turn off the ignition and remove the keys. Ensure, switching off the vehicle using both remote and key. • It is advisable to use the center stand for vehicle to be kept stand still for longer duration.

  • Page 13: Pure Lithium Battery

    PURE Electric Vehicle PURE Lithium Battery PURE EPluto 7G, with PURE Li-ion in-house battery manufacturing and testing, is equipped with Active Battery Management System (BMS), which protects the battery from damages due to short-circuiting, over- charging, deep discharging and high temperatures.

  • Page 14: Important

    PURE Electric Vehicle • Do not directly solder the battery pack. • Do not reverse the positive (+) and negative (–) terminals. Do not connect the battery pack to an electrical outlet, vehicle cigarette lighter, etc. • Do not use the battery pack for a purpose other than those specified.

  • Page 15: Battery Health Tips

    To maximize the battery and charger life, please refer the Battery care and precautions mentioned above. • The charger supplied with your EPluto 7G should only be used for the purpose of charging the battery of the EPluto 7G. Do not use it for any other purposes. •...

  • Page 16: Epluto 7G Charger

    PURE Electric Vehicle EPluto 7G Charger The charger provided with the Li-Ion battery is sophisticated and is a special purpose electronic charger. This charger has an additional protective feature which provides protection from output overvoltage, output overcurrent, short-circuiting and high temperatures.

  • Page 17: Charging Your Li-Ion Battery

    PURE Electric Vehicle Charging your Li-ion Battery • Ensure location for charging the battery must be dry, clean, safe and dustproof. • Do not place the charger on the battery. • Connect input mains supply plug to the 230V/50hz supply wall socket with proper grounding.
  • Page 18 PURE Electric Vehicle Steps to Charge Battery Inside the Vehicle 2. The battery is placed inside the 1. Ensure the vehicle ignition is OFF 3. MCB is ON vehicle and properly connected **Do not use extension box 4. Three pin connector of the 5.

  • Page 19: Steps To Charge The Battery Away From The Vehicle

    PURE Electric Vehicle Steps to Charge the Battery Away from the Vehicle 1. Ensure the vehicle ignition is 2. MCB is turned OFF 3. Disconnect the Battery 6. Connect the plug to a three pin 4. Remove the Battery 5. Connect the Charger to the battery...

  • Page 20: Important Safety Information

    PURE Electric Vehicle Important Safety Information Misusing or Incorrect connection to the Battery Charger may Damage the equipment or create Hazardous conditions for user. Read the following Safety instructions and pay special attention to all caution WARNINGS • Use the supplied charger only to charge LITHIUM-ION Batteries. Other uses may cause personal injury and damage.

  • Page 21: Service Policy

    PURE Electric Vehicle Service Policy PURE EV, offers 4 Free and 6 Paid service for its scooter. • The services to be availed within the specific kms or days from the date of sale of the scooter (Whichever is earlier).

  • Page 22: Warranty Policy: Scope Of Warranty

    PURE Electric Vehicle Warranty Policy: Scope of Warranty PURE EV offers Warranty for PURE EV Scooter models manufactured in its Hyderabad plant and sold through its authorised dealers. • Warranty claim is applicable only to the first owner of the Vehicle.
  • Page 23 24 business hrs with the dealer for the same. • PURE EV Reserves the right to carry out the replacement of the defective part with the same part manufactured by another vendor, which is also used by PURE EV.
  • Page 24 This warranty is not applicable to rental or commercial use of the product. • This warranty exclusively covers systems and components provided by PURE EV. The use of spare parts from unknown sources, like replacement parts from third parties deems the warranty void.
  • Page 25 The content in this subject of warranty may be changed without any notice. All rights are reserved by PURE EV. No one is allowed to make copies of, reproduce, change or modify any part or all the content of warranty without expressed permission of PURE EV.

  • Page 26: Mandatory Road Signs

    PURE Electric Vehicle Mandatory Road Signs PuR Energy Pvt Ltd...

  • Page 27: Trouble Shooting

    PURE Electric Vehicle Trouble Shooting YouTube Videos by PURE EV We have a YouTube channel, where videos for troubleshooting are uploaded. These videos will help as additional assistance in case of any defect or problem in the circumstances where technical assistance or authorized service centers are not available.
  • Page 28 Notes...
  • Page 29 Notes...
  • Page 30 WARRANTY REGISTRATION CARD EPluto 7G (DEALER COPY) OWNER’S NAME: ADDRESS 1: ADDRESS 2: MAIL ID: MOBILE NO: + 9 1 CITY: STATE: BATTERY NO: MOTOR NO: VIN NO: SOLD ON DEALER CODE: STAMP & SIGNATURE DEALER CUSTOMER SIGNATURE...
  • Page 32 WARRANTY REGITRATION CARD EPluto 7G (CUSTOMER COPY) OWNER’S NAME: ADDRESS 1: ADDRESS 2: MAIL ID: MOBILE NO: + 9 1 CITY: STATE: BATTERY NO: MOTOR NO: VIN NO: SOLD ON DEALER CODE: STAMP & SIGNATURE DEALER CUSTOMER SIGNATURE...
  • Page 34 FREE SERVICE COUPON EPluto 7G (Valid if serviced within 1000 – 1100km or 30 – 45 days from date of sale, whichever earlier.) VIN No: Motor No: Battery No: Customer Name: _______________________________________ Contact Number: _________________ Serviced On: yyyy Sold On:...
  • Page 36 FREE SERVICE COUPON EPluto 7G (Valid if serviced within 4300 – 4500km or 90 – 105 days from date of sale, whichever earlier.) VIN No: Motor No: Battery No: Customer Name: _______________________________________ Contact Number: _________________ Serviced On: yyyy Sold On:...
  • Page 37 FREE SERVICE COUPON EPluto 7G (Valid if serviced within 8000 – 8500km or 210 – 225 days from date of sale, whichever earlier.) VIN No: Motor No: Battery No: Customer Name: _______________________________________ Contact Number: _________________ Serviced On: yyyy Sold On:...
  • Page 39 FREE SERVICE COUPON EPluto 7G (Valid if serviced within 12000 – 12500km or 300 – 315 days from date of sale, whichever earlier.) VIN No: Motor No: Battery No: Customer Name: _______________________________________ Contact Number: _________________ Serviced On: yyyy Sold On:...
  • Page 41 Service Records: Service Distance (Km) Odometer Job Card Date Dealer Sign and Code / Time (Days) Reading Number Free Free Free Free Paid *Please ensure to get this filled by the dealer after every service.
  • Page 42 Service Records: Service Distance (Km) Odometer Job Card Date Dealer Sign and Code / Time (Days) Reading Number Paid Paid Paid Paid Paid *Please ensure to get this filled by the dealer after every service.
  • Page 43 Battery Service Records (Batrics Faraday): Service Inward Capacity Outward Capacity Dealer Sign and Code (Ah) (Ah) Free Free Free Free Paid *Please ensure to get this filled by the dealer after every service.
  • Page 44 Battery Service Records (Batrics Faraday): Service Inward Capacity Outward Capacity Dealer Sign and Code (Ah) (Ah) Paid Paid Paid Paid Paid *Please ensure to get this filled by the dealer after every service.
  • Page 45 A. PROPER CHARGING PROTOCOL Do’s It is recommended to only use the charger provided by the company for charging the batteries. Ensure location for charging the battery must be dry, clean, safe, and dustproof. Connect input mains supply plug to the 230V/50hz supply wall socket with proper grounding.
  • Page 46 B. BATTERY STORAGE PROTOCOL Do’s Battery should be stored away from any heat source or direct sunlight, in a well ventilated, dry, and dust-free environment. Keep all flammable materials away from the storage area In case of long-term storage, remove the battery from the vehicle and store it away from any heat source or direct sunlight, in a well ventilated, dry, and dust-free room.
  • Page 47 Voltage spikes, harmonics, or interruptions – regardless of the duration – can and will damage the battery/charger. It is highly recommended to install voltage stabilisers to provide constant voltage to avoid damages and ensure safety during. Adequate earthing and circuit protection must be ensured. Don’ts Do not use any adapter or extension cord.
  • Page 48 FIRST AID MEASURES (IN CASE OF ELECTROLYTE LEAKAGE FROM THE BATTERY) Eye contact Flush the eyes with plenty of clean water for at least 18 minutes immediately, without rubbing. Get immediate medical treatment. If appropriate procedures are not taken, this may cause eye injury Skin contact Wash the contact areas off immediately with...
  • Page 49 To recharge the battery pack, use the battery charger specifically designed for the purpose and observe the recharging conditions specified by PURE EV. Do not pierce the battery pack with a nail or other sharp objects, strike it with a hammer, or step on it Do not strike or throw the battery pack.
  • Page 50 DECLARATION I,______________________________________, would like to confirm that I have been explained and understood the above mentioned instructions / protocols for safety of PURE Lithium battery. Further I commit to abide by them. Customer Signature Dealer Stamp &...
  • Page 51 Notes...
  • Page 52 Notes...
  • Page 53 WWW.PUREEV.IN FOLLOW US AT: @pureevindia Company Address: H. No 10-38/2, Survey no 424/AA3, Beside Arya College of Pharmacy Near IIT Hyderabad Kandi Village Sangareddy, Hyderabad, Telangana 502285...
