Installation MANUAL
This is the first of two manuals
required to complete this installation.
The second manual is included with
your 5th wheel hitch head.
Level of Difficulty
Easy
Weight Capacity
Gross trailer weight (GTW)
Vertical load
Parts List
Item Qty Description
1
2
Leg
2
4
Bolt, locking
3
2
Left handle
4
2
Right handle
5
4
Flat washer
6
4
Castle nut
7
4
Puck
8
2
Safety pin, 3/8" x 1-3/4"
9
4
Cotter pin
Tools Required
Ratchet
Socket, 21mm
Torque wrench
--
Torque Specifications
M14 bolt
100 ft-lbs.
Use above torque setting unless otherwise noted
CURTMFG.COM
•
PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity. This may result in
separation, damage to 5th wheel hitch, vehicle, trailer and / or cause serious injury or death.
Do not expose hands, body parts or clothing anywhere between the truck and trailer.
Extreme care should be observed to avoid serious injury to self, property and observers.
Never position yourself or others under the trailer's kingpin area (danger zone) during
coupling and uncoupling. Improperly coupled trailers can separate and drop without notice.

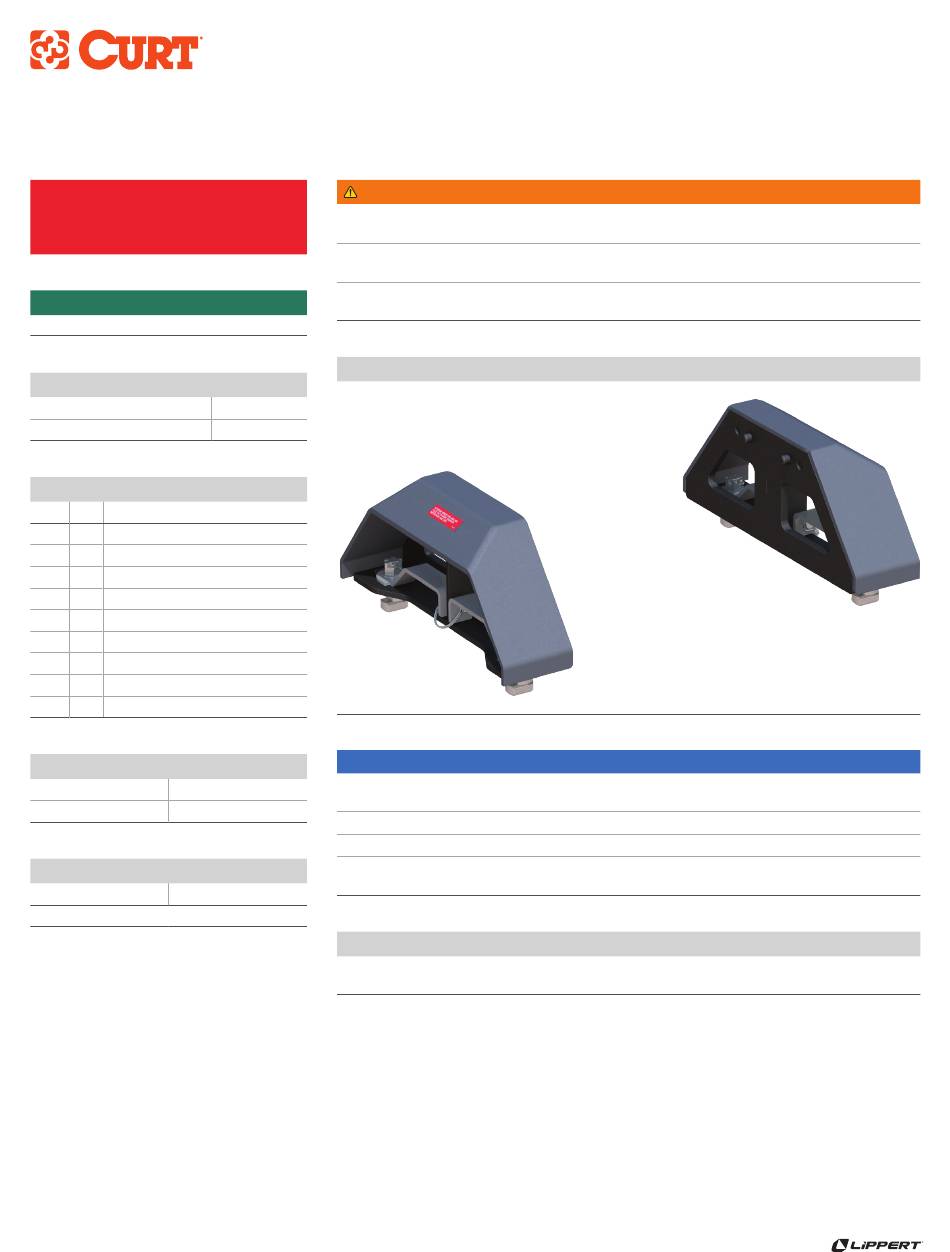

Product Photo
30,000 lbs.
7,500 lbs.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
All steps must be followed to ensure the product will function properly. Once installed,
test for proper function by using a test light or connecting a properly wired trailer.
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
•
16030-INS-RA
•
03/31/2021
•
ECN8235
•
PAGE 1
16030
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lippert Curt 16030
Summary of Contents for Lippert Curt 16030
- Page 1 INSTALLATION MANUAL 16030 This is the first of two manuals WARNING required to complete this installation. Never exceed the vehicle manufacturer's recommended towing capacity. This may result in The second manual is included with separation, damage to 5th wheel hitch, vehicle, trailer and / or cause serious injury or death. your 5th wheel hitch head.
- Page 2 ASSEMBLY Parts List Item Qty Description Bolt, locking Left handle Right handle Flat washer Castle nut Puck Safety pin, 3/8" x 1-3/4" Cotter pin INSTALLATION Step 1 Remove the safety pin (#8) securing the lock handles (#3, #4) in the closed position and open the handles 90°.
