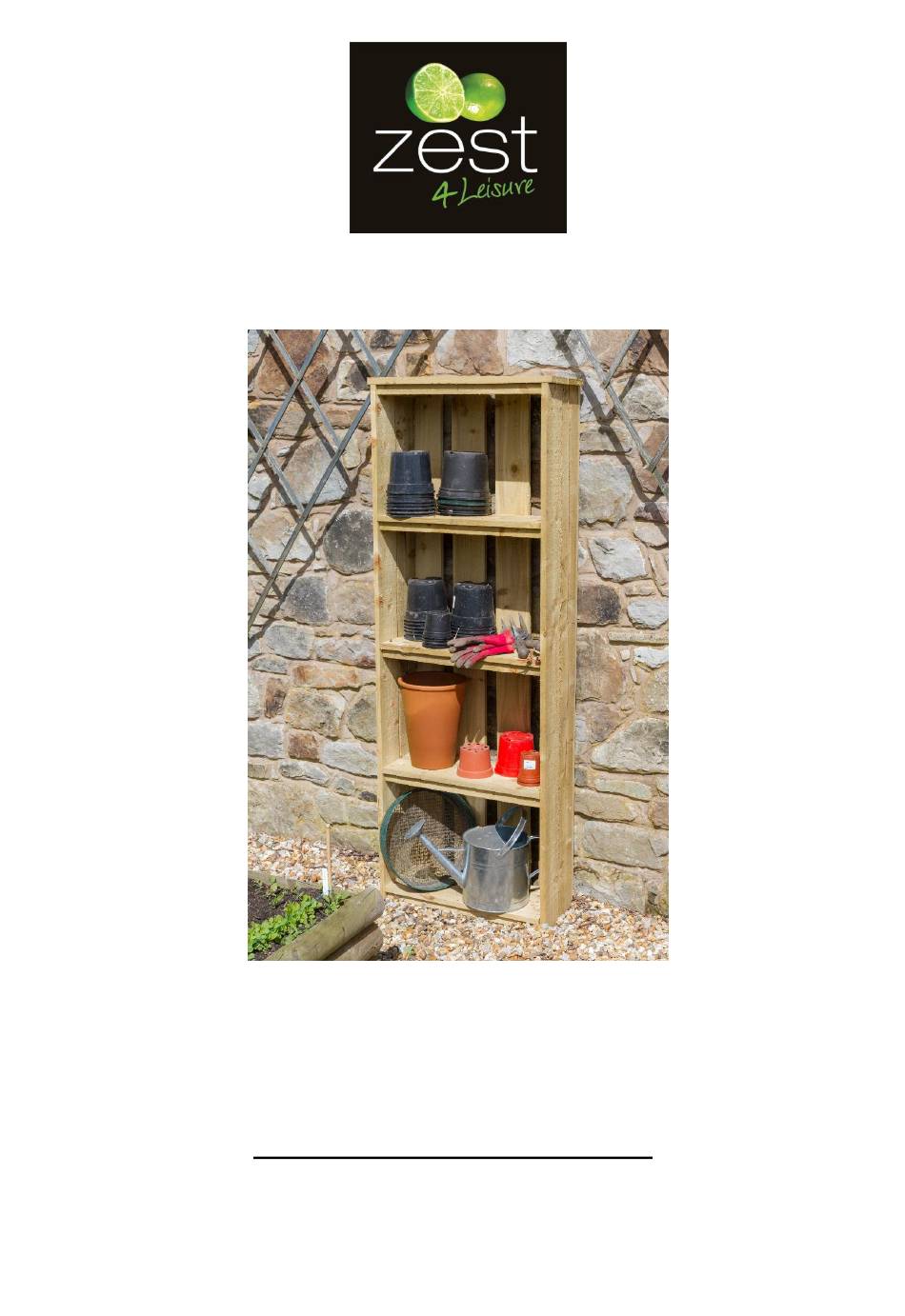

V2-11.14
Assembly Instructions
(W x D x H) 0.66m x 0.28m x 1.80m
Product Name: Garden Shelves
Pressure Treated products should not be treated with any other products for the first month.
PLEASE KEEP THIS INSTRUCTION
Zest4Leisure
01352 752555 option 1 – sales@zest4leisure.co.uk
Advertisement
Related Manuals for Zest 4 Leisure Garden Shelves
Summary of Contents for Zest 4 Leisure Garden Shelves
- Page 1 V2-11.14 Assembly Instructions (W x D x H) 0.66m x 0.28m x 1.80m Product Name: Garden Shelves Pressure Treated products should not be treated with any other products for the first month. PLEASE KEEP THIS INSTRUCTION Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Garden Shelves Assembly Instructions Requires 2 person assembly. All screw holes to be pre-drilled. Tools required: Corded / Cordless Drill, Pozi-drive Bit / Screwdriver, 3mm Drill Bit. Garden Shelves Pack List Item Description Quantity Shelf Side Panel Back Board Fixings...
- Page 3 Insert remaining Shelves A between Side Panels B (Fig.3a) and fix in position using 4no 40mm Screws per Shelf A (Fig.3b). Space out Back Boards D equally and fix in position using 6no 50mm Screws per Back Board D (top, middle and bottom) (Figs.4a & 4b). Garden Shelves is now complete.
- Page 4 www.zest4leisure.co.uk...
