Member's Mark G32901 Assembly Instructions & User Manual

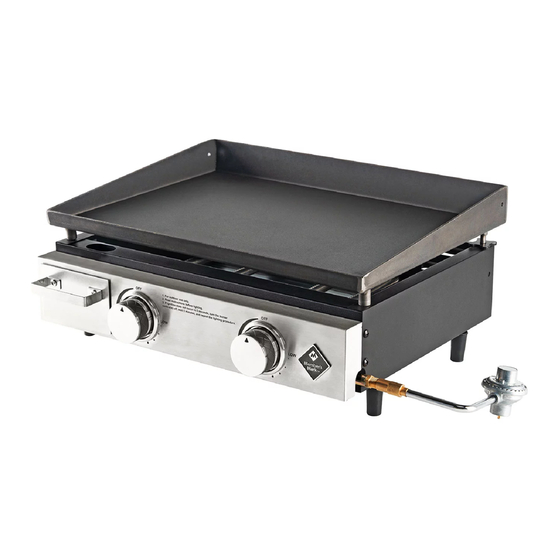

22 tabletop gas griddle
Hide thumbs

Advertisement

Table of Contents

Member's Mark
22" Tabletop Gas Griddle
Assembly Instructions & User Manual
Model G32901 / G32901-1
STOP
DO NOT RETURN PRODUCT TO STORE
Technicians are available to assist with your product needs. For assembly assistance, technical questions,
missing parts or general help, please contact us toll-free
1-833-454-0864
WARNING
Installer/ Assembler
The instruction manual contains important information necessary for the proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assembling and using the appliance.
Follow all warnings and instructions when using the appliance.
FOR OUTDOOR USE ONLY. NOT FOR COMMERCIAL USE.
IF STORED INDOORS, DETACH AND LEAVE CYLINDER OUTDOORS.
Manual Revision #: 09.30.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G32901 and is the answer not in the manual?

Questions and answers

Terry Cundall
May 30, 2025

when I light burners on griddle, both burners have full flame. within a second or two, the flame is very low - too low to cook with. Is the regulator for the gas bad?

0
1 comments:
Mr. Anderson
May 30, 2025

No, the gas regulator is not necessarily faulty. The issue may be caused by the regulator’s built-in flow limiting safety device being triggered. This can happen if a burner knob was left open while connecting the propane tank or if the control knob was opened too quickly. To reset the regulator, turn all burner knobs to the OFF position, disconnect the propane cylinder, wait five minutes, and then reconnect the cylinder. Ensure all knobs are OFF before reconnecting and follow proper lighting procedures.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Member's Mark G32901

Summary of Contents for Member's Mark G32901

  • Page 1 Member’s Mark 22” Tabletop Gas Griddle Assembly Instructions & User Manual Model G32901 / G32901-1 STOP DO NOT RETURN PRODUCT TO STORE Technicians are available to assist with your product needs. For assembly assistance, technical questions, missing parts or general help, please contact us toll-free...
  • Page 2 IMPORTANT SAFETY WARNINGS CAUTION Read and follow all safety statements, assembly instructions, use and care directions before attempting to assemble and cook. INSTALLER OR ASSEMBLER/CONSUMER This manual should be kept with the Griddle at all times. DANGER • Never operate this appliance unattended. •...
  • Page 3 CAUTION IN DIRECT SUN, AND IN OPERATION, YOUR GRIDDLE’S STAINLESS STEEL AND PAINTED STEEL PARTS CAN BECOME VERY HOT. WARNING • This appliance is not intended for and should never be used as a heater. • The cylinder must be disconnected when the appliance is not in use. •...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS: Installation Safety Setting Up Gas Hook-Ups And Warnings Safety Hose And Regulator Assembly Instructions Leak Check Procedure Leveling Your Griddle Lighting Instructions Shut Down Procedure Prevention Seasoning And Griddle Care Care And Maintenance Start Grilling Warranty And Service 1-833-454-0864...

  • Page 5: Installation

    INSTALLATION INSTALLATION Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as appli- cable.

  • Page 6: Safety

    SAFETY WARNING Do not attempt to repair or alter the regulator or valve assembly for any assumed defect or for any type of retro fit or conversion. Any modifications to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by the manufacturer, for your model.

  • Page 7: Setting Up

    SETTING UP Where to Setup Your Griddle WARNING • For outdoor use only, in a well-ventilated area. • Minimum clearance to adjacent combustible materials. • MUST have a clearance of 24” on all sides from a dwelling, walls, aluminum siding, windows, fencing, and any other combustible material.The appliance shall not be located or used under overhead unprotected combustible construction.

  • Page 8: Safety Hose And Regulator

    GAS HOOK - UP’S AND WARNINGS DANGER • NEVER store a spare LP cylinder/bottle near the appliance. • DO NOT store an LP tank/bottle in an area where children play. • LP cylinder should only be stored outside and in a cool dry place. •...
  • Page 9 PARTS LIST FOR G32901 Qty Description Part No. Qty Description Part No. Griddle Top G329-1200-C1 Regulator G329-0502-C1 Hex Nut, Griddle G329-1101-C1 Control Knob Bezel G329-0503-C1 Control Knob G561-0007-C1 Burner Box Assembly G329-0200-C1 Grease Cup G329-0900-C1 Burner Box Feet G329-0102-C1 Match Holder...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1-833-454-0864...
  • Page 11 ASSEMBLY INSTRUCTIONS 1-833-454-0864...
  • Page 12 ASSEMBLY INSTRUCTIONS IMPORTANT: Do not discard the Safety cover. 1-833-454-0864...
  • Page 13 ASSEMBLY INSTRUCTIONS NOTE: The 1 lb propane cylinder is sold separately. 1-833-454-0864...
  • Page 14 ASSEMBLY INSTRUCTIONS WARNING: NEVER OPERATE GRIDDLE WITH PROPANE CYLINDER IN AN INVERTED POSITION. 1-833-454-0864...

  • Page 15: Leak Check Procedure

    LEAK CHECK PROCEDURE A leak test is used to determine the integrity of a seal. Before using your gas griddle, perform a leak test on the connection between the regulator and the gas cylinder to reduce the risk of serious bodily injury or death from fire or explosion.

  • Page 16: Leveling Your Griddle

    LEVELING YOUR GRIDDLE Leveling Your Griddle Leveling your griddle will ensure proper flow of grease on the griddle top, into the grease cup. a. Choose the griddle location. b. Use a level to determine if any adjustments are required. c. Adjust the griddle top height by turning the leveling nut on the griddle feet, to ensure positive flow of grease to the grease cup.

  • Page 17: Lighting Instructions

    LIGHTING INSTRUCTIONS LIGHTING INSTRUCTIONS 1. Set your griddle on a sturdy flat surface and confirm that all Control knobs are in the “OFF” position. For outdoor use only. 1. For outdoor use only. 2. Read instructions before lighting. 3. If ignition does not occur in 5 seconds, turn the burner control(s) off, wait 5 minutes, and repeat the lighting procedure.

  • Page 18: Shut Down Procedure

    LIGHTING INSTRUCTIONS PERFORM A BURN-OFF Start the griddle and set control knobs to “HI” for 15 minutes to perform a “burn-off”. This will “heat clean” the internal components, dissipate odors and rid the unit of any foreign matter. WARNING Never use gasoline, lighter fluid, paint thinner, or other flammable vapors and liquids for lighting or at any other time during cooking.

  • Page 19: Prevention

    PREVENTION BURNER FLAME PATTERN Your griddle's burners are designed to mix oxygen and propane at a rate that allows for optimal flames. Should the burner holes, air shutter, or venturi get blocked, it will affect the propane and air mixture, causing low or inconsistent flames, or flames coming from the air gate.
  • Page 20 PREVENTION Flash-Back Fires Blockages in the burner venturi caused by spiders, insects and nests can cause a flashback fire. A flashback fire occurs when a blockage in the venturi tubes caused by spiders, insects and nests blocks the flow of gas, forcing it back towards the control panel and control knob.

  • Page 21: Seasoning And Griddle Care

    SEASONING AND GRIDDLE CARE What is seasoning? Seasoning is the process of applying multiple coatings of oil to the griddle surface, heating to a high temperature, to bake the oil into the griddle top. Seasoning your griddle top improves the cooking performance, create a non-stick surface for cooking, prevents damage and deterioration due to moisture and humidity, and extends the life of your griddle.
  • Page 22 SEASONING AND GRIDDLE CARE With continued use of your griddle, the seasoning bond will get better and better. Applying a coating of oil at the start and finish of each cook, will help to maintain seasoning. Never use soap to clean the griddle, this will destroy the seasoning.

  • Page 23: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR GRIDDLE 1. At the end of every cook, and before storing your griddle, cool griddle below 300 °F (148.8 °C). Scrape any food debris using a spatula or straight metal scraper. 2. Wipe griddle surface with paper towel. 3.
  • Page 24 CARE AND MAINTENANCE BURNERS & BURNER BOX MAINTENANCE Although your griddle’s burner box is fully protected from grease and other build-up that can accumulate during cooking, regular checks of the burners and ignition electrode are still required to ensure proper performance, safety and a longevity of your griddle.
  • Page 25 CARE AND MAINTENANCE GENERAL GRIDDLE SAFETY TIPS 1. ALWAYS Turn controls and gas source or tank “OFF” when not in use. 2. Do not leave griddle station unattended at any time while in operation. 3. If the griddle surface and components have not been regularly maintained or safely checked, take extreme caution at first lighting, during preheat, and when cooking at high temperatures.

  • Page 26: Start Grilling

    START GRILLING WARNING Always observe safe food handling and safe food preparation practices when using this griddle, to prevent food-borne illnesses. WARNING To ensure that it is safe to eat, food must be cooked to the minimum internal temperatures listed in the table below. USDA Safe Minimum Internal Temperatures Fish 145°...
  • Page 27 WARNING: HOT SURFACES WARNING EXTERIOR SURFACES WILL BECOME VERY HOT. TO PREVENT BURNS, ALWAYS WEAR INSULATED PROTECTIVE GRILLING MITTS WHEN WORKING AT THE GRIDDLE. • KEEP AWAY FROM COMBUSTIBLE MATERIALS • KEEP CHILDREN AND PETS AWAY FROM THIS GAS FIRED APPLIANCE •...
  • Page 28 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION Electrode should be positioned 1/8" to 1/4" Electrode misaligned away from the burner tube. Burner will not light (can ignite with a Electrode ceramic piece is damaged Replace electrode. match) Faulty Ignition Contact Customer Support 1-833-454-0864 Burners are not properly seated over valve Check burners to ensure that they are seated orifices.
  • Page 29 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTION Out of propane. Replace propane tank. Burner and/or burner tubes are blocked. Clean burners. Decreasing heat, “popping sound” Regulator flow limiting device activated either by improper lighting, opening control knobs Reset the pressure regulator. too quickly, or a poor connection between the griddle and tank.

  • Page 30: Warranty And Service

    WARRANTY AND SERVICE This product is covered by the Sam's Club Member Satisfaction Guarantee. Please visit samsclub.com for more information. BEFORE YOU CALL FOR SERVICE, have the following information available: 1. Serial Number: Located on the CSA rating label. 2. Model Number: The model number is located on the front cover of this manual and on the CSA rating label. 3.
  • Page 31 WARRANTY AND SERVICE establish warranty period with the date from the original sales receipt. 12. Winners Products Engineering Ltd. reserves the right to make changes or improvements to products it produces in the future without imposing on itself any obligations to install the same improvements in the products it has previously manufactured. EXCLUSIONS Winners Products Engineering Ltd.
  • Page 32 Arkansas 72716-0745 Made In China Winners Products Engineering Ltd 25/F., Cofco Tower, 262 Gloucester Road Causeway Bay, Hong Kong Questions or Comments? We would love to hear about your linktr.ee/member's.mark Member's Mark experience! Visit us at: samsclub.com/membersmarkhelp CONTACT US: 1-833-454-0864...
