Homelegance 1647K-1 Assembly Instructions

INSTRUCTIONS D'ASSEMBLAGE

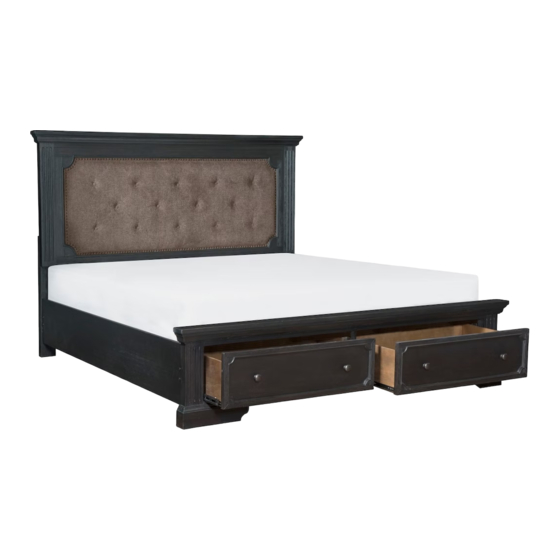

1647K-1 King Headboard
1647K-2 King Footboard w/ Slats, Center Slats & Support Legs
1647-3 Queen/EK Side Rails
Thank you for purchasing this product.Please take time to read and follow the instructions below. Check that you have all
parts and hardware before assembly. Parts apparently missing are often found in the packing materials. If you do not
have all the parts listed, have your dealer contact us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing
furniture on a wood floor or other hard surface, and to limit indentation and prevent discoloration if placing on carpet.
PART LISTS / LISTE DE PIECES
NO. Description
A
Headboard legs (Br-Rsf/ Bl-Lsf)
B
(Gauche/ Droit)
Headboard Cross Bar/
C
Footboard / Pied De Lit
D
Side Rails /
E
F
Center Slat / Longerons Central
G Slats / Lattes
Support Legs 1/ Support
H
Pour Transverses 1
Support Legs 2/ Support
I
Pour Transverses 2
STEP 1
ASSEMBLY INSTRUCTIONS
ITEM NO: 1647K-1/2/3 EK KING BED / TRES GRAND LIT
Sketch Q'ty
1PC
2PCS
1PC
1PC
2PCS
1PC
1SET
3PCS
1PC
HARDWARE LISTS / LISTE DE QUINCAILLERIE
NO. Description
Bolt / Boulon
1
Spring Washer /
2
Flat Washer /
3
Rondelle Plate
4
5 Bolt / Boulon
Spring Washer /
6
Flat Washer /
7
Rondelle Plate
Wooden Dowel /
8
Goujon on Bois
**ABOVE HARDWARE ARE PACKED IN 1647K-1 FOR ASSEMBLY
9
Bolt / Boulon
Spring Washer /
10
Flat Washer /
11
Rondelle Plate
12
**ABOVE HARDWARE ARE PACKED IN 1647-3 FOR ASSEMBLY
13 Screw / Vis
**ABOVE HARDWARE ARE PACKED IN 1647K-2 FOR ASSEMBLY
1 OF 2
Sketch Size Q'ty
6PCS
5/16''x45mm
5/16'x10mm 6PCS
6PCS
5/16''x19mm
M4x58mm
1PC
2PCS
1/4''x38mm
1/4'x10mm 2PCS
2PCS
1/4''x19mm
4PCS
3PCS
1/4''x32mm
1/4'x10mm 3PCS
3PCS
1/4''x19mm
M4x 58mm
1PC
M4x 25mm 26PCS
