Summary of Contents for Ritter RIvisio-cam

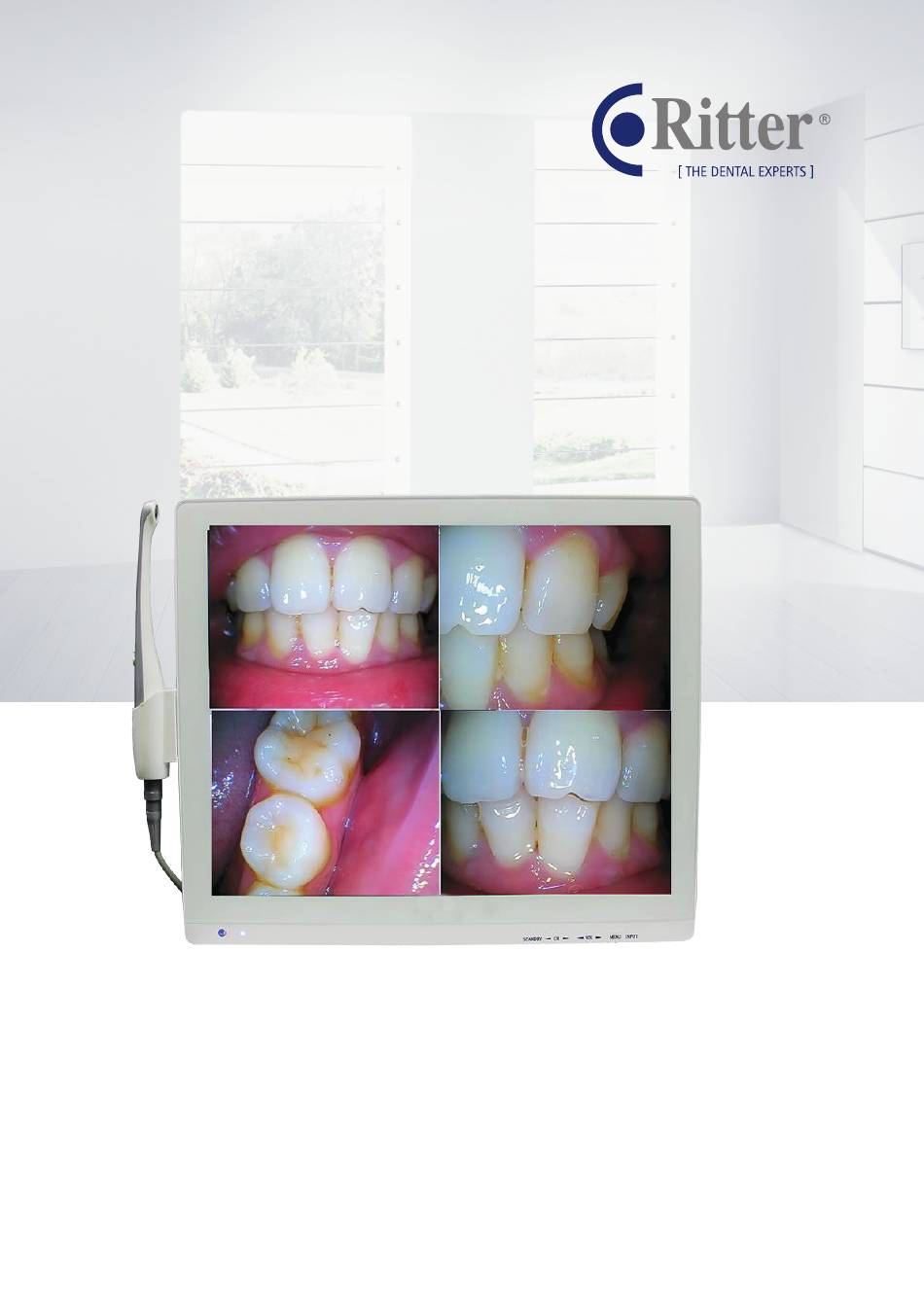

- Page 1 User Manual A3M-X (LAN Storage) RIvisio-cam Digital Intra-oral Camera DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) User Manual Thank you for using our product, it will bring you a different experience. Please read the details of the instruction before installing and using the product.
-
Page 2: Specification
Support LED lights off. The handle is designed with food grade material,and structure is more ergonomical. Specification Name A3M-X Dental Intraoral Camera Ritter® RIVISIO-CAM Intra-Oral Camera Power Supply 220V or 24V Input Power 4.5VA~5.5VA Camera Lens Auto Focus 15 mm ~ 30 mm... -
Page 3: Spare Part List
RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) Spare Part List Handle bracket & Display bracket screw Screen Handle Remote Control Handle Wire SD card 220V Power TF card reader (Optional) 24V Power Protect Sheath (50pcs) - Page 4 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) Handle 1、Power on and start up automatically with 10s,then e Enter the start up screen nter full-screen preview 2、Touch key 1) Click the Touch key, then the picture freeze-frame 2) Click again the Touch key,the picture will be saved to the directory on computer or TF card,and then back to full-screen preview automatically.
- Page 5 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) 3) In picture browsing mode,long press 1/4 Screen switch button,l oosen the button, and than press 1/4 Screen switch button to delete the picture. current 4) In picture browsing mode, long press Browse button, back to full-screen preview.

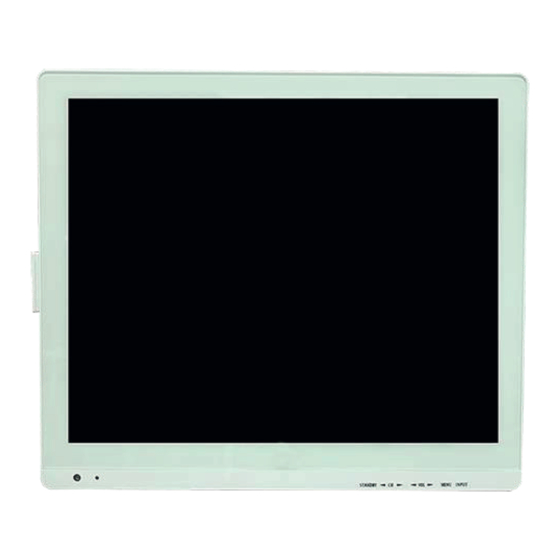

- Page 6 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) 17 inch Display Screen (Front) 17 inch Display Screen (Back)
- Page 7 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) How to Watch Video * Watch Video in USB or TF card: INPUT→MEDIA * Back to intraoral camera : INPUT→PC...
-
Page 8: Software Installation
RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) Software Installation Double - click iTeethSee.exe to install according to the prompt 2.Choose the language “English”... - Page 9 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) 3. Fish installation. 3. Finish Installation.
- Page 10 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) 4. Open the software, Account and password is the defaults. Account: Admin Password: 123 Connect WIFI & Usage Intraoral Camera Connect WIFI Settings --- QR(WIFI) --- Set up the WIFI Account and Password (The same LAN of...
- Page 11 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) 2) Use the handle , enter full-screen preview, long press 1/4 Screen switch button “Connect WIFI to scan the QR code. Wait for a moment,the camera will show successfully” How to Search Intraoral Camera? Open the software,the computer will search all intraoral camera that in the same LAN.
- Page 12 RIvisio-cam DIGIT AL INTRA-ORAL CAMERA (LAN-STORAGE) Set the name of the Intaroral Camera Click the name of the Intaroral Camera. You can modify the name of the Intaroral Camera. The pop-up page is as follows: Details of other functions Search device: Search intraoral camera 2.
- Page 13 Digital Intra-oral Camera Thank you for using our product, it will bring you a different experience. Please read the details of the instruction before installing and using the product. Ritter Concept GmbH Freiburger Str. 45 88400 Biberach, Germany Fon 0049 7351 / 52 925-10 Fax 0049 7351 / 52 925-11 info@ritterconcept.com...
