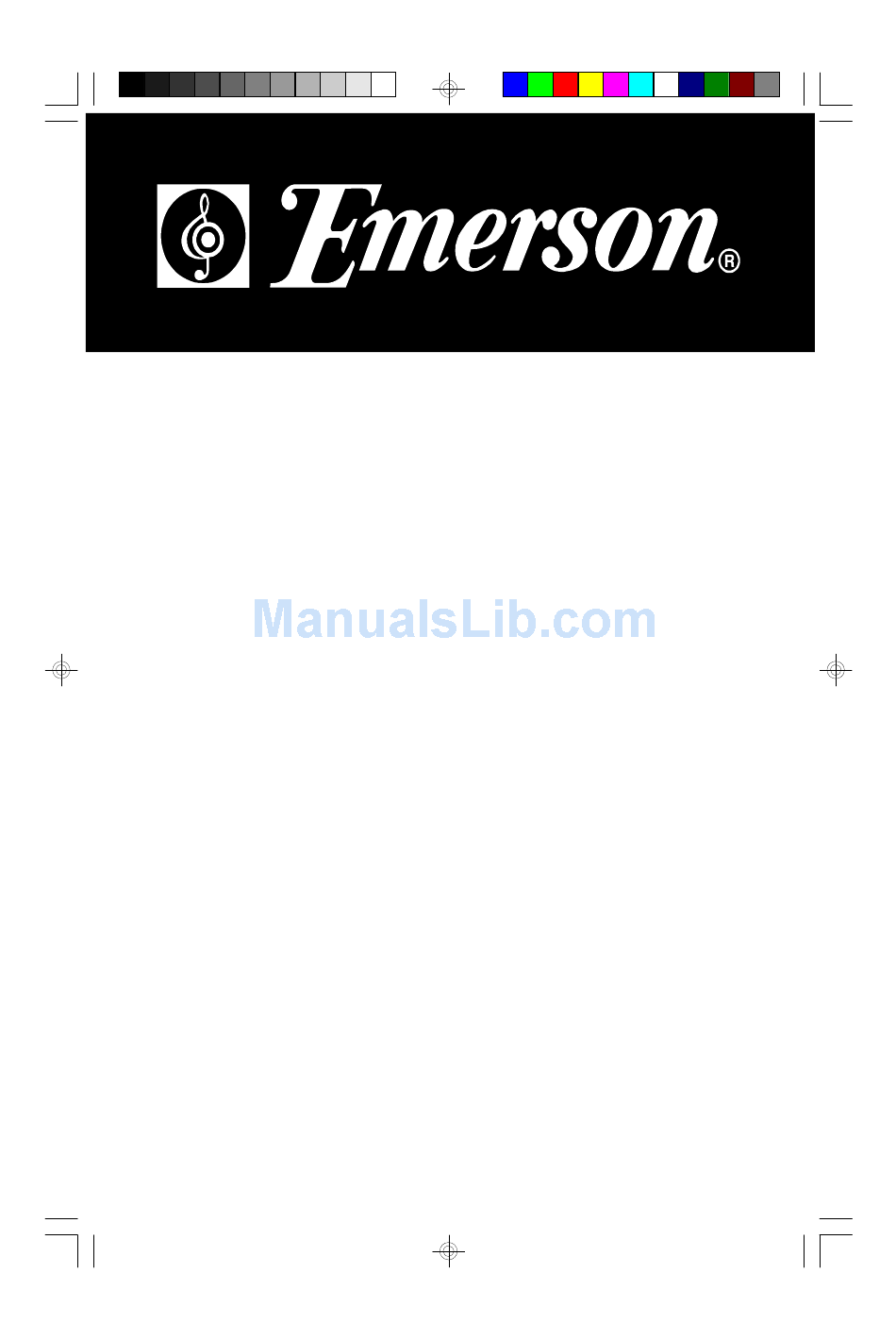

- Page 1 Home Audio System with Vertical CD-R/RW Player and Digital AM/FM Receiver OWNER'S MANUAL ES30 Visit our web site at www.emersonradio.com ES30_072905.p65 29/7/2005, 16:41...
-
Page 2: Important Safety Instructions
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrow- WARNING: TO REDUCE THE head symbol, within an equi-... - Page 3 Before We Begin Thank you for purchasing this Emerson audio product. The Emerson brand is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this Owner’ s Manual completely to make sure you are getting the maximum benefit from each feature.
-
Page 4: Important Notes
IMPORTANT NOTES • Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/ or humid or moist areas. -
Page 5: Preparation For Use
PREPARATION FOR USE Unpacking And Set Up • Carefully remove the main unit, speakers, and remote control from the carton, and remove all packing materials from the components. • Remove any descriptive labels or stickers from the front panel of the main unit. - Page 6 Positioning The Main Unit And Speakers The main unit and the speakers are designed to be used on a shelf, desk, table or stand. The main unit is shipped with two plastic legs installed for added stability when the system is used on a flat surface. These two plastic legs allow the main unit to “lean backward”...
-
Page 7: Speaker Connections
Speaker Connections Connect the speakers to the Red (+) and Black (–) terminals on right side panel of the unit as shown below. Press the Red (+) or Black (–) terminal tab, insert wire, release tab to hold wire in place. - Page 8 Connecting To External Audio Sources This system is equipped with Auxiliary Input (AUX IN) and Line Output (LINE OUT) jacks. The Auxiliary Input Jacks allow you to listen to the sound from an external audio source through the speakers of this system. The Line Output jacks allow you to record from the Tuner or CD Player in this system to an external recording device.
-
Page 9: Protect Your Furniture
Protect Your Furniture This model is equipped with non-skid rubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. -
Page 10: Power Source
Power Source This system is designed to operate on 120V AC 60Hz power supply only. Connecting this system to any other power source may cause damage to the system and such damage is not covered by your warranty. Make sure that you connect this system to an AC outlet that is always “live”. Do not connect this system to an AC outlet that is controlled by a wall switch. -
Page 11: Location Of Controls And Indicators
LOCATION OF CONTROLS AND INDICATORS CD TUNER MULTI FUNCTION DISPLAY R E P E A T C L A S S I C M E M O R Y ROCK R A N D O M P O P S T O P / B A N D 1.) Remote Sensor. -
Page 12: Remote Control
Remote Control 1.) VOLUME Down Button. 2.) VOLUME Up Button. SKIP / SEARCH Rev Button. 4.) RANDOM Button. 5.) REPEAT / M-UP Button. 6.) TIMER Button. 7.) Numeric Buttons 8.) CD / TUNER Button. 9.) EQ (Equalizer) Button. 10.) POWER Button. 11.) Remote Infrared Transmitter. -
Page 13: Installing The Remote Control Batteries
Installing The Remote Control Batteries The remote controller requires 2 “AAA” batteries (not included). Please use a well- known brand of alkaline batteries for longest life and best performance. Remove the remote control battery compartment cover by sliding the cover in the direction of the arrow. -
Page 14: Turning The System On
OPERATING INSTRUCTIONS • Make sure that the speakers are properly connected. • Make sure that the FM Wire Antenna is fully extended. • Make sure that you have installed batteries in the remote control. • Make sure that the AC power cord is connected to an outlet that is always “live”. -
Page 15: General Controls
General Controls Most of the main functions of this system can be operated by the controls on the front panel of the main unit, or by the buttons on the remote control handset. If a specific function can only be operated by the remote handset, or by the front panel controls, this will be clearly indicated in the instructions. -
Page 16: Mute Button (On Remote Control Only)
MUTE Button (On Remote Control Only) Press the MUTE button on the remotrol control to shut off the speakers temporarily, for example, to answer the telephone. T h e s o u n d s t o p s a n d t h e “MUTE”... -
Page 17: Setting The Clock
Setting The Clock Note: The clock can be set at AUX mode, when power is ‘ Off’ , or at CD, TUNER modes by pressing the MODE/REMAIN button to display the Time mode. 1.) Depress and hold the MEMORY button on the front panel or remote control. “24 H”... -
Page 18: Listening To The Radio
Listening To The Radio 1.) Press the POWER/STANDBY button on the main unit or the remote control. The main display turns ‘ On’ . 2.) If necessary, press the TUNER button on the front panel of main unit or the CD/TUNER button on remote control to select the Tuner function. - Page 19 Hints For Better Reception FM: The FM lead wire antenna on the back panel should be extended to its full length. You may also have to vary the direction of this antenna until you find the position that provides the best reception. AM: The AM bar antenna is inside the cabinet of the main unit.
-
Page 20: Pre-Setting Stations In The Tuner Memory
Pre-setting Stations In The Tuner Memory This system includes a 20 station preset memory. You can store up to 10 FM stations and 10 AM stations in the tuner memory for immediate recall. The procedure for storing stations in memory is as follows: 1.) Follow step 3 under “Listening To The Radio”... -
Page 21: Recalling Preset Stations
Recalling Preset Stations 1.) Turn the unit ‘ On’ , press the 2.) Press the REPEAT/M-UP button on the front panel or the remote control repeatedly to scroll through the preset memories until the display shows the desired station. 3.) You may also use the number buttons on the remote control to directly select the desired preset memory number. -
Page 22: Playing Compact Discs
Playing Compact Discs Important: This CD player can play normal CDs plus CD Recordable (CD-R) and CD ReWritable (CD-RW) discs. However the playability of CD-R/RW discs may be affected by the type of software that was used in ‘ ripping’ the tracks from the original discs and ‘... -
Page 23: Normal Playback
Normal Playback 1.) Press the POWER/STANDBY button to turn the system ‘ On’ . 2.) Press the CD button on front panel or CD/TUNER button on remote control to select CD function. 3.) Press the OPEN/CLOSE the “dummy CD” transit protection cards and discard it. You cannot play your own CD unless the card is removed. -
Page 24: Pause Control
9.) To stop playback at any time, press the 10.) If you are finished listening, press the OPEN/CLOSE CD door, remove your disc from the player, re-close the door and press the POWER/STANDBY button to return the system to the Standby (Off) mode. Pause Control To pause temporarily during CD playback press the The sound stops and the elapsed time flashes in... -
Page 25: Repeat Playback
Repeat Playback You can program the player to continuously repeat a single track or the entire disc. The Repeat function can be activated while a disc is playing or while the disc is stopped. One Track Repeat Press the button until the desired track number appears in the display, then press the REPEAT/M-UP button once. -
Page 26: Random Playback
Random Playback This feature allows you to play all the tracks on a disc in random order. Load the disc as usual and wait until the display shows the total playing time and number of tracks. Press the RANDOM button. The RANDOM indicator appears in the display. -
Page 27: Programmed Playback
Programmed Playback You can program up to 20 tracks on a disc to playback in any desired order. You may also program a specific track to play several times within the same program. Note: The player cannot be programmed while a disc is playing. If a disc is playing press the STOP/BAND button to stop playback before you begin the programming steps below. - Page 28 7.) To begin programmed playback press the The display will show the first p r o g r a m m e d t r a c k a n d playback will begin on that track. The MEMORY Indicator stops flashing and remains in the display. After the last programmed track has played the player stops but the programmed tracks remain in the memory.
-
Page 29: Timer Function
Timer Function This system includes a programmable Timer function that will turn the system ‘ On’ , play for one hour, and then shut the system ‘ Off’ automatically. You can use the timer to wake you up to the Radio or to your favorite CD. The timer can be programmed while the system is in the Standby (Power Off) mode, the Aux mode, Tuner mode, or the CD mode. - Page 30 6.) At the selected ‘ On’ time the system will turn ‘ On’ automatically to the last function selected, either Tuner or CD. The TIMER indicator flashes. It will play for one hour and then shut ‘ Off’ automatically. Note: If the system turns on to CD function it will only play until the end of the disc and then stop.
- Page 31 Sleep Timer This system includes a programmable Sleep Timer that allows you to fall asleep to between 90 and 10 minutes of music and then shuts the power ‘ Off’ automatically. To Operate The Sleep Timer: 1.) Turn the system ‘ On’ and operate either the Tuner or CD function as usual. 2.) Adjust the VOLUME controls to the desired level.
- Page 32 MODE/REMAIN Button Normally the display shows the correct time in the Aux mode, Standby (Power Off) mode, the radio frequency in the Tuner mode, and the CD track and time information in the CD mode. You can press the MODE/REMAIN button repeatedly to show the following information on the display: •...
- Page 33 Auxiliary Operation (On Front Panel Only) To listen to an auxiliary audio source connected to the AUX IN R/L jacks on the top panel of this unit (refer to page 8). Press the AUX button on front panel to select the Aux function. The AUX indicator appears in the display.
- Page 34 Resetting The System Computer This system is equipped with a special circuit designed to protect the internal computer from permanent damage due to unexpected power surges. If you find that the system does not respond to any commands from the front panel controls or the remote handset, the system probably experienced a sudden power surge that activated the protection circuit.
-
Page 35: Wall Mounting Instructions
To re-attach the legs, slide the U-shaped cut-outs in the legs upwards over the round posts at the back of the unit. Make sure the legs are pushed up all the way. If you decide to wall mount your ES30 audio system please read and carefully follow these instructions: Note: Wall mounting hardware is not included. - Page 36 General Precautions and Recommendations • When choosing a location for wall mounting remember that the main unit must be connected to an AC outlet. The AC power cord of the main unit should be able to hang straight down from the main unit to the AC outlet. (See Figure 1.) AM/FM DIGITAL TUNER CD MICRO SYSTEM...
- Page 37 • If there is no AC outlet directly below the desired mounting location you may use a UL approved extension cord. In this case you should allow the AC plug of the main unit to reach all the way to the floor and connect the extension cord on the floor, not above the floor.
- Page 38 Template Instructions 1.) Select the desired location for wall mounting after carefully reviewing the "General Precautions and Recommendations" of the wall mounting instructions. 2.) Tape the template to the wall, or other surface, in the desired location. Align the top edge of the template with the pencil mark you made on the wall. Be sure to allow at least 3"...
- Page 39 7.) Insert the tip of the anchor into each hole and use a hammer to tap the anchors all the way in until they are flush with the wall surface. Anchor Wall Surface 8.) Insert the screw into the anchor and tighten the screw until it touches the collar on the anchor.
- Page 40 10.) Position the main unit over the two screw heads so that the heads of the screws fit into bottom of each "Keyhole" on the back cabinet. When the two screw heads are inside the keyholes, slide the main unit slightly downward until each screw head is in the top of the keyhole.
-
Page 41: Care And Maintenance
CARE AND MAINTENANCE Compact Disc Care • To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges. • Fingerprints and dust should be carefully wiped off the disc’ s recorded surface with a soft cloth.Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris, so gently wiping with a soft cloth should remove most particles. - Page 42 TO FIND THE LOCATION AND PHONE NUMBER OF YOUR NEAREST SERVICE CENTER PERMITTED TO PERFORM SERVICE WARRANTY... 1-800-695-0098 CALL TOLL FREE: FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE PLEASE CALL: 1-800-898-9020 FOR CUSTOMER SERVICE, PLEASE WRITE TO: Emerson Radio Corp., Consumer Affairs Dept., 5101 Statesman Drive, Irving, TX 75063.
- Page 43 You may be asked to provide this number when calling for product service. Model Number: ES30 Serial Number: ES30_072905.p65 Emerson Radio Corp., 5101 Statesman Drive, Irving, TX 75063.
- Page 44 EMERSON Part No. 16-3000 Printed in China 508-02 ES30_072905.p65 29/7/2005, 16:41...
