Twister T4 Tandem User Manual

Rails
Hide thumbs Also See for T4 Tandem:
Table of Contents

Advertisement

Quick Links

Download this manual
T 4
R A I L S
U S E R M A N U A L
PN: 21-10216A_REV00
T W I S T E R T R I M M E R . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T4 Tandem and is the answer not in the manual?

Questions and answers

Related Manuals for Twister T4 Tandem

Summary of Contents for Twister T4 Tandem

  • Page 1 R A I L S U S E R M A N U A L PN: 21-10216A_REV00 T W I S T E R T R I M M E R . C O M...

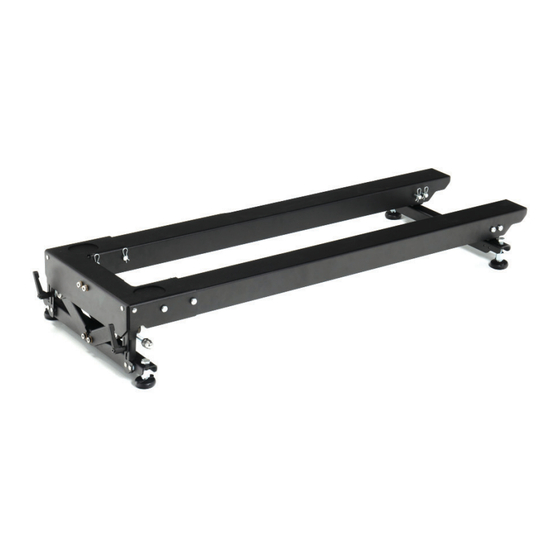

  • Page 2 Front Cover: T4 Tandem Rails This manual is for both the T4 Tandem and Triple Rails. The only diff erence between the two rails is that the rail bars (highlighted green in Fig. 1) are longer on the triple rails than the tandem. Otherwise, the rails are iden cal.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S Important Safety Informa on Parts and Tools Assembled Rails Assembly Setup Cleaning Specifi ca ons Accessories Contact Us T W I S T E R T R I M M E R . C O M p g | 3...

  • Page 4: Important Safety Informa On

    I M P O R T A N T S A F E T Y I N F O R M A T I O N This manual is for the Twister T4 Tandem and Triple Rails. DANGER In this manual, the T4 Tandem and Triple Rails will simply be referred to as the Rails.
  • Page 5 I M P O R T A N T S A F E T Y I N F O R M A T I O N Assembly Safety Information • Subs tu ng factory parts with third-party parts may result in bodily harm or damage to the Rails.

  • Page 6: Parts And Tools

    P A R T S A N D T O O L S Parts: Components Fig. 2 Reference Descrip on Part Number Quan ty Rails Base 11-0142 Rails Base Support 11-0143 Plas c Foot 13-0317 Li Assembly 24-0137 Rail Bar 11-0156 (Tandem)/ 11-0157 (Triple) Components other than the Li Assembly are included in this part number.
  • Page 7 P A R T S A N D T O O L S Parts: Fasteners Fig. 3 Reference Descrip on Part Number Quan ty 10-32 x ⁄ ” Carriage Bolt 13-0176 10-32 Nyloc Nut 13-0179 ⁄ ”-13 Hex Head Cap Screw 13-0318 ⁄...
  • Page 8 P A R T S A N D T O O L S Tools Needed Fig. 4 Reference Descrip on Quan ty Torque Wrench ⁄ ” Socket ⁄ ” Socket ⁄ ” Wrench ⁄ ” Hand Crank* Provided with the T4 rails. The hand crack is for adjus ng the height of the rails–not assembly. T W I S T E R T R I M M E R .

  • Page 9: Assembled Rails

    A S S E M B L E D R A I L S LIFT ASSEMBLY RAIL BAR PLASTIC FOOT RAILS BASE SUPPORT RAILS BASE Fig. 5 T W I S T E R T R I M M E R . C O M p g | 9...

  • Page 10: Assembly

    A S S E M B L Y Step A: Attach the Rails Base Supports to the Rails Base Fig. 6 Torque the bolts to 32lb-in. Step B: Attach the Plastic Feet to the Rails Base and Lift Assembly Fig. 7 Fig.
  • Page 11 A S S E M B L Y Step C: Attach the Rail Bars to Rails Base Supports LOWER END COTTER PIN UPPER END Align the lower end of the rail bars with the Fig. 10 Fig. 9 Remove the co er pins from all eight clevis pins. rails base supports.
  • Page 12 A S S E M B L Y Step D: Attach the Rails to the Lift Assembly Align the upper end of the rail bars with the Fig. 13 Fig. 14 li assembly. Fig. 15 T W I S T E R T R I M M E R . C O M p g | 1 2...

  • Page 13: Setup

    S E T U P Placement WARNING Place the rails where the T4s will operate. It is recommended to operate the T4s: THE RAILS ARE HEAVY. IF NECESSARY, USE TWO PEOPLE • On level ground TO LIFT. • Near a power source •...
  • Page 14 S E T U P Fig. 16 Fig. 17 Using the hand crank provided with the rails, rotate the adjustment rod to adjust the height of the li assembly (see Fig. 17): Turn the hand crank clockwise to raise the li assembly. Turn the hand crank counter-clockwise to lower the li assembly.

  • Page 15: Cleaning

    Dry the rails with compressed air. Spray the rails with 70% isopropyl alcohol or another sani zer. Allow the sani zer to evaporate. The Twister Foam Cannon makes spraying foaming degreasers much easier and is available for purchase from Keirton Accessories (see page 17).

  • Page 16: Specifi Ca Ons

    S P E C I F I C A T I O N S T4 Tandem Rails Part Number 24-0140-P Tilt Adjustment Range 0.7° 4.9° Width 19.5”/495.3mm Length 51.5”/1307mm Height 8.9”/225mm Weight 44lb/20kg T4 Triple Rails Part Number 24-0139-P Tilt Adjustment Range 0.4°...

  • Page 17: Accessories

    The Standard Height Feed Conveyor will not work with a tandem or triple T4 system, and while the Standard Height QC Conveyor will work, it is not ideal. It is recommended to either use a height extension kit on the Standard Conveyors or to purchase Twister’s Extended Height or Stainless Steel Conveyors.

  • Page 18: Contact Us

    C O N T A C T U S Keirton technical support is available between 7 a.m. and 7 p.m. Pacifi c Standard Time seven days a week at: 1-888-254-3204 • support@keirton.com • Keirton Inc. 9445 189th St. Surrey, BC V4N 5L8 Canada T W I S T E R T R I M M E R .
  • Page 19 T W I S T E R T R I M M E R . C O M...
  • Page 20 T W I S T E R T R I M M E R . C O M...
