NORTH AMERICAN MODEL
T 4
T R I M
S A V E R
U S E R M A N U A L
PN: 21-00-000426_REV04
T W I S T E R T R I M M E R . C O M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T4 TRIM SAVER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Twister T4 TRIM SAVER

Summary of Contents for Twister T4 TRIM SAVER

  • Page 1 NORTH AMERICAN MODEL T R I M S A V E R U S E R M A N U A L PN: 21-00-000426_REV04 T W I S T E R T R I M M E R . C O M...
  • Page 2 T W I S T E R T R I M M E R . C O M...

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S Important Safety Informa on Parts and Tools Assembled Trim Saver Assembly Inspec ons Cleaning Troubleshoo ng Warranty Informa on Specifi ca ons Spare Parts and Accessories Contact Us T W I S T E R T R I M M E R .

  • Page 4: Important Safety Informa On

    I M P O R T A N T S A F E T Y I N F O R M A T I O N This manual is for the Twister T4 Trim Saver vacuum. In DANGER this manual, the Trim Saver vacuum will simply be referred to as the Trim Saver.
  • Page 5 I M P O R T A N T S A F E T Y I N F O R M A T I O N Connection and Electrical Safety Information • The Trim Saver requires a 120V, 15A circuit breaker. •...
  • Page 6 I M P O R T A N T S A F E T Y I N F O R M A T I O N • Clean the Trim Saver regularly. • Ensure the Trim Saver is powered off before conduc ng any maintenance. •...

  • Page 7: Parts And Tools

    P A R T S A N D T O O L S Parts: Components Fig. 1 T W I S T E R T R I M M E R . C O M p g | 5...
  • Page 8 P A R T S A N D T O O L S Reference Descrip on Part Number Quan ty Caster 23-0146 Base Plate 23-0215 Motor Support 23-0206 Lid Holder 23-0208 Saddle Support 23-0205 Hose Saddle 23-0198 1.5hp Vacuum Fan and Motor Assembly 23-0213 Filter Adapter Gasket 23-0230...
  • Page 9 P A R T S A N D T O O L S Parts: Fasteners The fasteners are placed in labelled bags that pertain to the diff erent stages of assembly. For easiest assembly, do not open these bags un l the instruc ons say to do so. Fig.
  • Page 10 P A R T S A N D T O O L S Tools Needed Fig. 3 Reference Descrip on Quan ty ⁄ ” Wrench ⁄ ” Wrench p g | 8 T W I S T E R T R I M M E R . C O M...

  • Page 11: Assembled Trim Saver

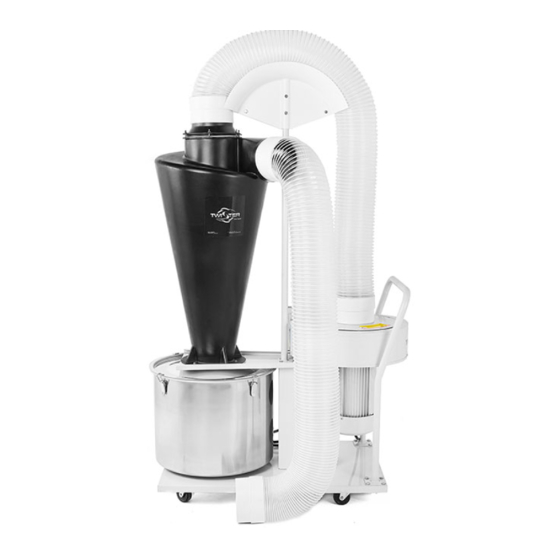

    A S S E M B L E D T R I M S A V E R HOSE SADDLE 6” HOSE CUFF SADDLE SUPPORT CLEANING FLANGE 6” HOSE FILTER ADAPTER CYCLONE ASSEMBLY FILTER BAGS BIN LID 6” HOSE CUFF VACUUM FAN AND MOTOR ASSEMBLY CART HANDLE...

  • Page 12: Assembly

    A S S E M B L Y Step 1: Attach the Casters to the Base Plate Open fastener bag A. Bag A contains: • Sixteen ⁄ ”–18 x ⁄ ” Hex Head Bolts • Sixteen ⁄ ” Star Lock Washers. Secure the casters to the base plate using all 16 bolts and star locks washers (see Fig.
  • Page 13 A S S E M B L Y Fig. 7 Fig. 8 Step 3: Attach the Motor Support to the Base Plate Open fastener bag C. Bag C contains: • Four ⁄ ”–18 x ⁄ ” Hex Head Bolts • Four ⁄...
  • Page 14 A S S E M B L Y Fig. 10 Fig. 9 Align the base of the saddle support with the lid holder’s four center bolts holes. Ensure the pole-side of the base is facing the wide end of the lid holder (see Fig. 9). Secure the saddle support to the base plate using four ⁄...
  • Page 15 A S S E M B L Y Fig. 12 Fig. 13 Step 6: Attach the Motor Assembly to the Motor Support The motor assembly is heavy and fragile. Use two people to complete this step. WARNING Open fastener bag E. Bag E contains: THE MOTOR IS HEAVY.
  • Page 16 A S S E M B L Y Fig. 15 Fig. 14 Step 7: Attach the Filter Adapter to the Motor Assembly Open fastener bag F. Fastener bag F contains: • Eight ⁄ ”–18 x ⁄ ” Hex Head Bolts •...
  • Page 17 A S S E M B L Y Align the cart handle with the base plate so the top of the handle leans away from the motor assembly. Secure the cart handle to the base plate with all eight bolts and star lock washers (see Fig.
  • Page 18 A S S E M B L Y Fig. 19 Fig. 20 Step 10: Attach the Bin Place the lower lid gasket around the stainless steel bin lip. Slide the bin under the bin lid (see Fig. 21). A ach the bin to the lid using all four bin latches (see Fig. 22). Fig.
  • Page 19 A S S E M B L Y Fig. 23 Fig. 24 Step 11: Attach the Motor Assembly-to-Cyclone Hose Apply isopropyl alcohol to the ends of the 6” hose. This will make screwing on the hose cuff s easier. Screw a 6” hose cuff on each end of the hose (see Fig. 23) Slide a 6”...
  • Page 20 A S S E M B L Y Step 13: Attach the Cyclone-to- Trimmer Hose Apply isopropyl alcohol to the ends of the 5” hose. Screw the 5” hose cuff s on the ends of the hose. Slide a 5” hose clamp over one hose cuff . Apply isopropyl alcohol or dish soap to the cyclone inlet.

  • Page 21: Inspec Ons

    I N S P E C T I O N S To ensure op mal performance of the Trim Saver, the DANGER following inspec ons should be made on a weekly basis*. Ensure the Trim Saver and T4 are unplugged and all TURN OFF ALL MOTORS, THEN motors have come to a complete stop before conduc ng UNPLUG THE TRIM SAVER...

  • Page 22: Cleaning

    C L E A N I N G To ensure op mal performance, the Trim Saver should be DANGER cleaned regularly using the following steps: ENSURE THE TRIM SAVER IS Step 1: Disassemble the Trim Saver UNPLUGGED AND THE PLUG IS Ensure the Trim Saver and trimmer have COVERED BEFORE CLEANING TO been safely switched off...
  • Page 23 C L E A N I N G Fig. 29 Fig. 28 Pull the hose cuff s free from the inlets and outlets (see Fig. 28). Unscrew the hose cuff s from the hoses. Detach the Cyclone Outlet: Remove all six wing nuts from the cleaning fl ange (see Fig. 29). Remove the cyclone outlet and cleaning fl...
  • Page 24 Remove the cyclone, bin lid, and gaskets. Step 2: Clean the Trim Saver The Trim Saver can be cleaned manually, or it can be le to clean in the Twister UltraClean ultrasonic cleaning system. Fig. 31 Manual Cleaning Clean the small, removable components: Soak the fi...
  • Page 25 C L E A N I N G Do not rinse the motor assembly or electrical Rinse the hoses and cyclone. components with water. Spray the hoses and cyclone with isopropyl alcohol or another sani zer. Allow the sani zer to evaporate. UltraClean Cleaning Clean only the removed components in the UltraClean (see the UltraClean User Manual).

  • Page 26: Troubleshoo Ng

    T R O U B L E S H O O T I N G If any problems not listed in this sec on arise, or any DANGER troubleshoo ng solu ons do not solve the problem, contact Keirton technical support for assistance (see TURN OFF ALL MOTORS, THEN Contact Us on page 30).
  • Page 27 T R O U B L E S H O O T I N G Solution: Ensure the Trim Saver and T4 are unplugged and all motors have come to a complete stop. If the fi lter adapter is too close to a wall, relocate the Trim Saver at least 4 from any wall. If the adapter has plenty of space, inspect the fi...

  • Page 28: Warranty Informa On

    W A R R A N T Y I N F O R M A T I O N Keirton will repair or replace any parts proven defec ve in material or workmanship without charge for a period of one year. The warranty period will begin on the date the machine is purchased by the ini al purchaser.
  • Page 29 W A R R A N T Y I N F O R M A T I O N • Improper electrical connec on • Neglect • Normal wear • Unapproved modifi ca ons including the use of unapproved replacement parts. Keirton assumes no risk and shall be subject to no liability for damages or loss resul ng from the specifi...

  • Page 30: Specifi Ca Ons

    S P E C I F I C A T I O N S Product Number Product Number 23-0201-01-P Opera ng Condi ons Airfl ow Capacity 1200CFM Opera ng Condi ons 650ACFM @ 5” w.g. Sta c Pressure 10” w.g. Motor Specifi...

  • Page 31: Spare Parts And Accessories

    T4 Vacuum Bypass 23-0258-00-P Cleaning Equipment Item Product Number Twister Foam Cannon 25-0024 Twister UltraClean - North American Three Phase Model 02-10019A Twister UltraClean - North American One Phase Model 02-10030A Spare Parts Kits Item Product Number T4 Trim Saver Gasket Kit...

  • Page 32: Contact Us

    C O N T A C T U S Keirton Technical Support is available between 7 a.m. and 7 p.m. Pacifi c Standard Time seven days a week at: 1-888-254-3204 • support@keirton.com • p g | 3 0 T W I S T E R T R I M M E R . C O M...
  • Page 33 T W I S T E R T R I M M E R . C O M...
  • Page 34 T W I S T E R T R I M M E R . C O M...
