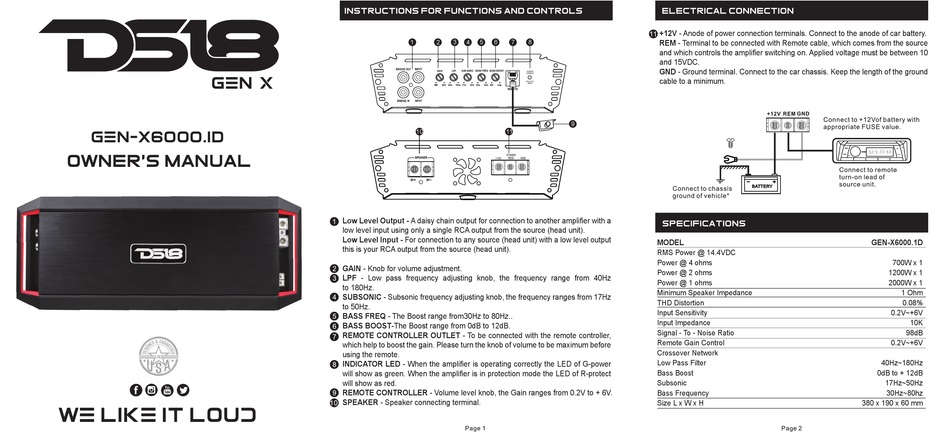

DS18 GEN-X6000.1D Owner's Manual

gEN-X6000.1d
owner's manual
WE LIkE IT LOUD

instructions for functions and controls

1 2 3 4 5 6 7
10 11
Low Level Output - A daisy chain output for connection to another amplifier with a
low level input using only a single RCA output from the source (head unit).
Low Level Input - For connection to any source (head unit) with a low level output
this is your RCA output from the source (head unit).
GAIN - Knob for volume adjustment.
LPF - Low pass frequency adjusting knob, the frequency range from 40Hz
to 180Hz.
SUBSONIC - Subsonic frequency adjusting knob, the frequency ranges from 17Hz
to 50Hz.
BASS FREQ - The Boost range from30Hz to 80Hz..
BASS BOOST-The Boost range from 0dB to 12dB.
REMOTE CONTROLLER OUTLET - To be connected with the remote controller,
which help to boost the gain. Please turn the knob of volume to be maximum before
using the remote.
INDICATOR LED - When the amplifier is operating correctly the LED of G-power
will show as green. When the amplifier is in protection mode the LED of R-protect
will show as red.
REMOTE CONTROLLER - Volume level knob, the Gain ranges from 0.2V to + 6V.
SPEAKER - Speaker connecting terminal.

electrical connection

+12V - Anode of power connection terminals. Connect to the anode of car battery.
REM - Terminal to be connected with Remote cable, which comes from the source
8
and which controls the amplifier switching on. Applied voltage must be between 10
and 15VDC.
GND - Ground terminal. Connect to the car chassis. Keep the length of the ground
cable to a minimum.
9

specifications

MODEL
RMS Power @ 14.4VDC
Power @ 4 ohms
Power @ 2 ohms
Power @ 1 ohms
Minimum Speaker Impedance
THD Distortion
Input Sensitivity
Input Impedance
Signal - To - Noise Ratio
Remote Gain Control
Crossover Network
Low Pass Filter
Bass Boost
Subsonic
Bass Frequency
Size L x W x H
GEN-X6000.1D
700W x 1
1200W x 1
2000W x 1
1 Ohm
0.08%
0.2V~+6V
10K
98dB
0.2V~+6V
40Hz~180Hz
0dB to + 12dB
17Hz~50Hz
30Hz~80hz
380 x 190 x 60 mm
