ATLAS 14.1" N370 LAPTOP
WITH WINDOWS 11 PRO (4GB, 64GB)
KAL14N370PA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLAS 14.1" N370 and is the answer not in the manual?

Questions and answers

Patrick Brown
May 21, 2025

Is it possible to take a N370 back to factory reset

0

Subscribe to Our Youtube Channel

Related Manuals for Kogan ATLAS 14.1" N370

Summary of Contents for Kogan ATLAS 14.1" N370

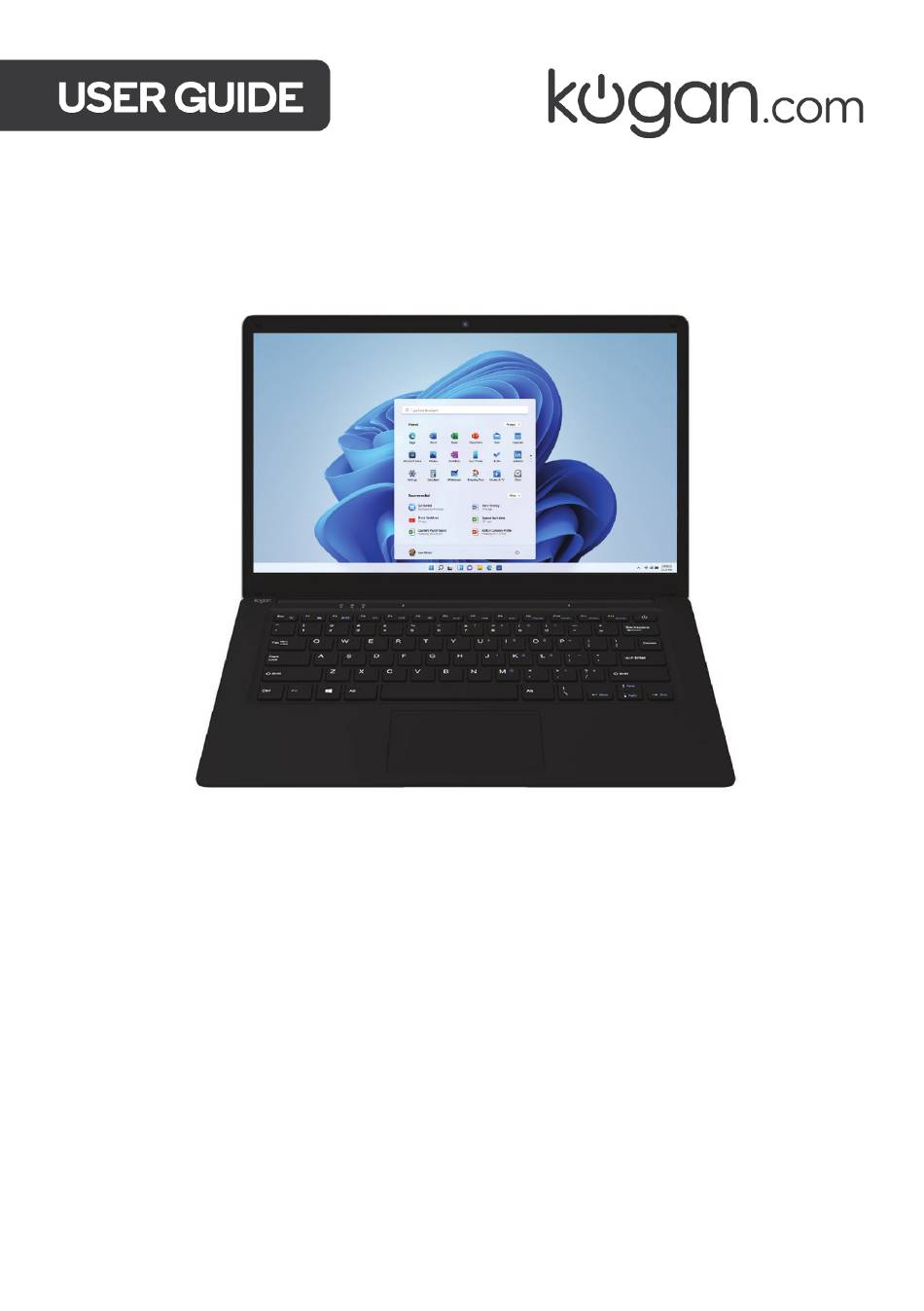

  • Page 1 ATLAS 14.1" N370 LAPTOP WITH WINDOWS 11 PRO (4GB, 64GB) KAL14N370PA...

  • Page 2: Safety And Warnings

    • Replacing the laptop battery with the incorrect type may result in an explosion. Ensure to only use the original batteries. If further assistance is needed, contact help.Kogan.com. CLEANING & CARE Ensure the laptop is switched off before cleaning.
  • Page 3 COMPONENTS Laptop Power adapter User guide Warranty card...
  • Page 4 OVERVIEW Front view Name Description Camera Used for photos, recording video, and video calls. Display HD LCD display panel Built-in twin microphones can be used to record Microphones audio and interact in video calls. These respective indicators will illuminate when Indicator lights power, caps lock, or the digital key lock is used.
  • Page 5 Left view Right view Name Description Charging indicator Illuminates red when the laptop is being charged. Plug the power adapter into the charging port to Charging port charge the laptop. Input for flash drives, additional keyboard/mouse, USB 3.0 port and other compatible devices supporting USB 3.0 or older.
  • Page 6 Bottom view Name Description Expansion slot for internal storage. This laptop fits a 7.5mm (2.5”) SATA 3.0 HDD with a maximum HDD expansion slot capacity of 1TB and is not compatible with other sizes. Two built-in speakers allowing for stereo audio Speakers output.

  • Page 7: Getting Started

    GETTING STARTED Plug one end of the power adapter into the charging port then plug the other end into a power outlet. Switch the power on at the outlet. The charging indicator should illuminate red. Note: Ensure to charge the laptop for at least 3 hours prior to turning it on for the first time. Press the power button to turn on the laptop.
  • Page 8 Start menu Click on the Windows icon at the bottom of the screen to bring up the start menu. Apps already installed on the computer can be accessed via the start menu. Recently used apps will be listed under the ‘Recent’ heading in the start menu for easy access. More apps can be installed via the Microsoft Store.
  • Page 9 Multitasking Drag one window to the left or right side of the screen and let go when you can see an overlay of the window around half of the screen. You can then select another open window to fill the free space on the other half of the screen. Sleep, restart and shut down Click on the Windows icon on the bottom of the screen, then click on the power icon.

  • Page 10: Installing An Hdd

    INSTALLING AN HDD This laptop fits a 7.5mm (2.5”) SATA 3.0 HDD Screws with a maximum capacity of 1TB and is not compatible with other sizes. Ensure the laptop is turned off before installing an external HDD (not supplied). 1. Flip the laptop over and remove the two screws holding the HDD cover in place.

  • Page 11: Troubleshooting

    The laptop is not charging Inspect the laptop, charging port, and power adapter for any physical damage. If damaged, stop use immediately and contact help.Kogan.com for assistance. The laptop is not connecting to Wi-Fi • Restart your modem/router, or both if you have separate units.

  • Page 12: Specifications

    SPECIFICATIONS Display Screen size 14.1” Screen resolution 1366 x 768 Performance Intel® Celeron® Processor N4020 CPU speed 1.1–2.8GHz Intel® UHD Graphics 600 Operating system Windows 11 Pro System memory (RAM) Power Battery capacity 5000mAh Battery type Lithium-ion polymer battery Storage HDD slot 7.5cm (2.5”) SATA HDD up to 1TB Storage capacity...
  • Page 13 Audio Speaker x2, 1W Other Dimensions 329 x 219 x 22.8mm Weight 1.26kg Built-in webcam...
  • Page 14 NOTES...
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
